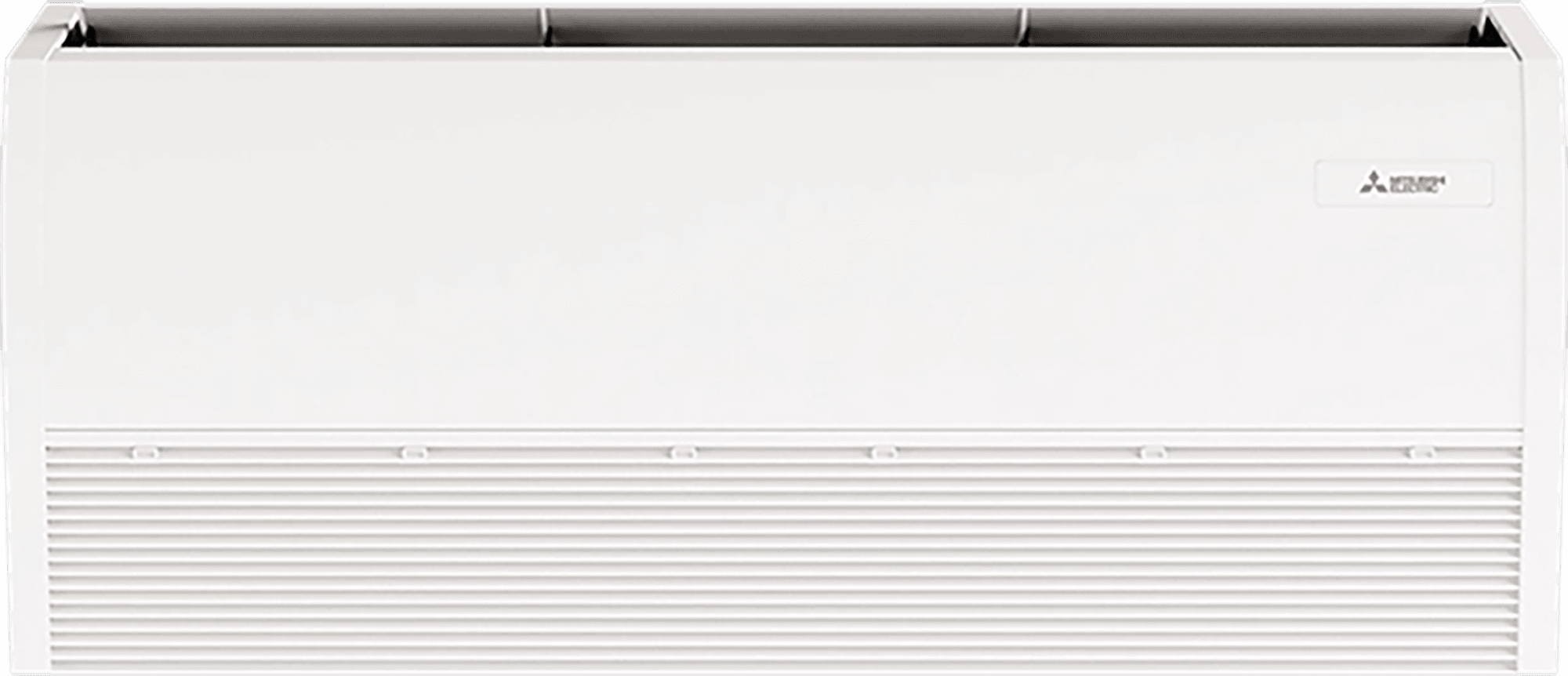

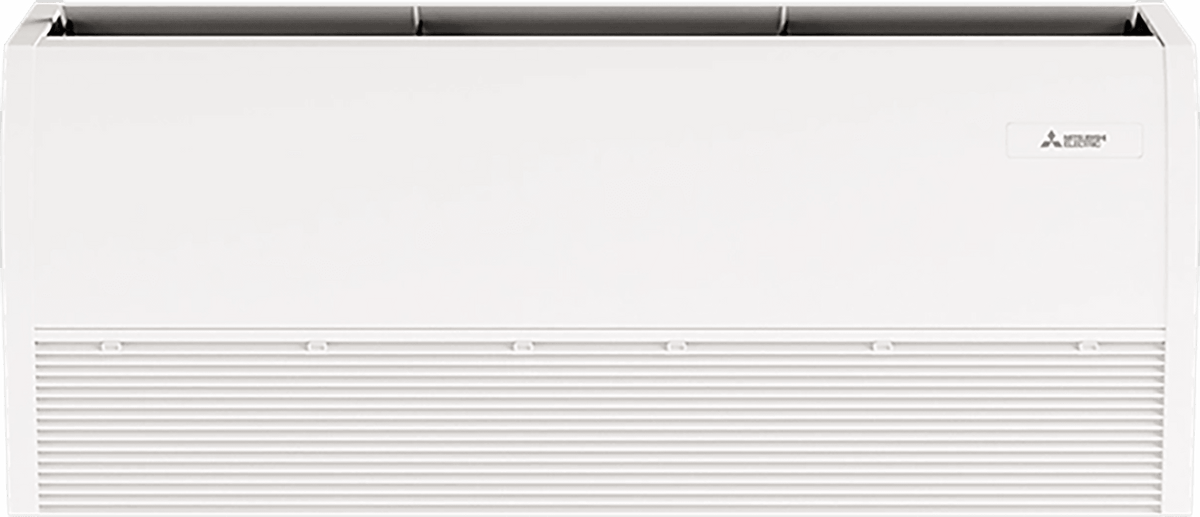

Mitsubishi Electric PCA-AK30NL R454B 30,000 BTU Ceiling Suspended Air Handler

Product Description

The MITSUBISHI ELECTRIC PCA-AK30NL is an R454B 30,000 BTU ceiling suspended air handler designed for single-zone systems. It operates quietly, providing comfort without disrupting the space. Ideal for structures that do not support wall mounting or ceiling cassettes. It features dehumidification, which removes unwanted moisture, improving comfort and reducing mold growth.

• Dehumidification feature removes unwanted moisture.
• Multiple vane control options for maximum coverage.
• Suitable for spaces where wall mounting or ceiling cassettes are not viable.

Product Highlights

This ceiling-suspended air handler is designed for efficient and discreet heating and cooling in residential or commercial spaces.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PCA-AK30NL

Technical Specifications

• Type: Ceiling Suspended
• Product Line: P-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 30
• Installation Location: Indoor
• Cooling BTU: 30000
• Cooling Capacity: 28200 BTU
• Heating Capacity: 34000 BTU
• Moisture Removal: 9.9 Pints/Hour
• Maximum Air Flow: 705 CFM
• Minimum Air Flow: 530 CFM
• Minimum Sound Level: 35 dB
• Maximum Sound Level: 41 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 9.0625 Inches
• Product Width: 50.375 Inches
• Product Depth: 26.75 Inches
• Product Weight: 71 Pounds
• Shipping Weight: 82 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Number of Zones: 1
• DOE Regional Compliance: Nationwide
• Line Set Size: 3/8" x 5/8"
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• SEER2: 21.9
• EER2: 12.3
• HSPF2: 9.4
• Minimum Circuit Ampacity: 29 Amps
• Recommended Breaker Size: 48 Amps
• Suction Connection Size: 5/8 Inch
