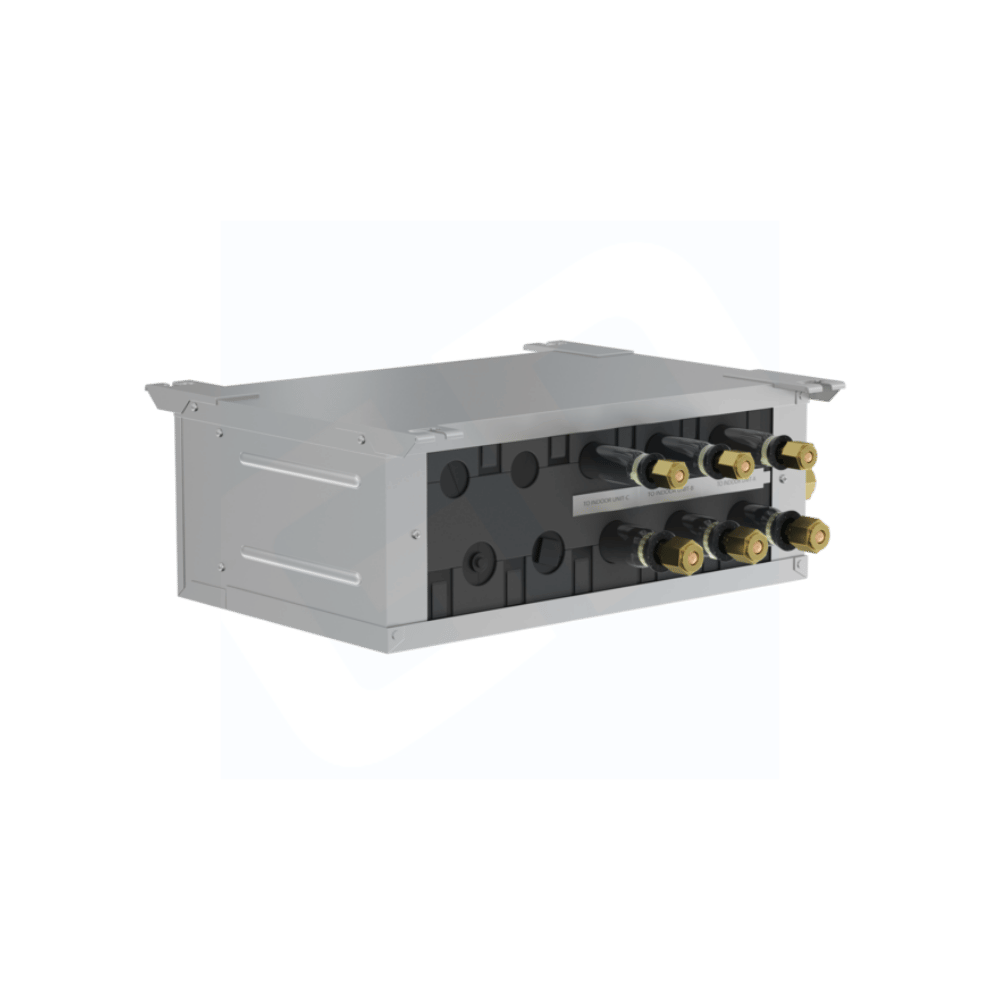

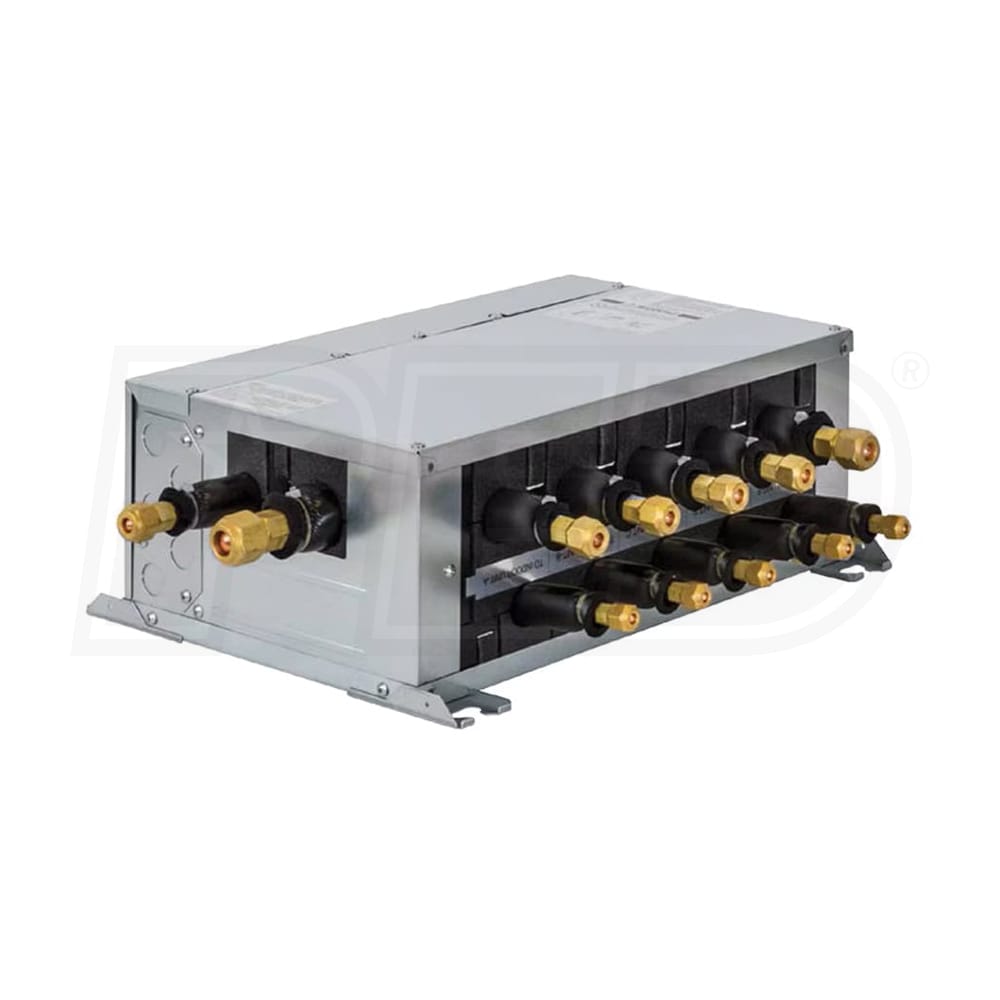

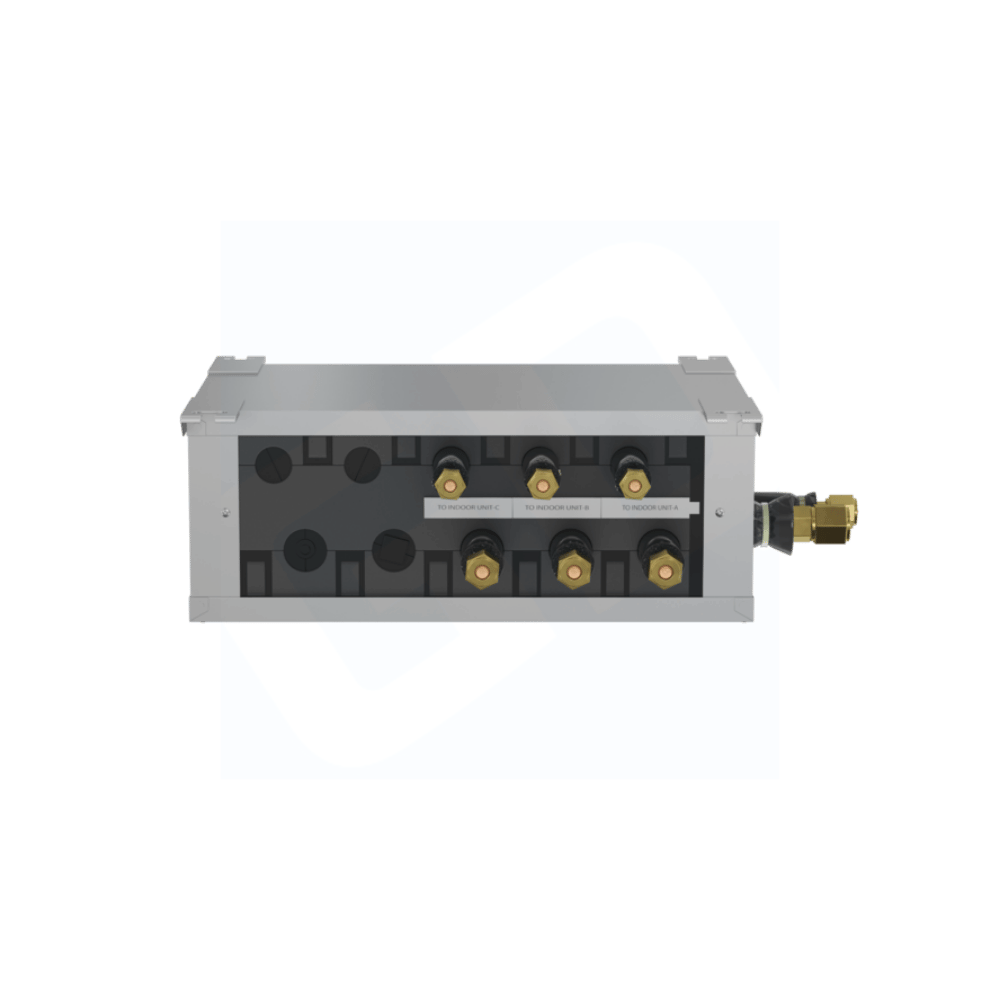

Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box

Product Description

The Mitsubishi Electric PAC-LMA50BC is a branch box made for use with MXZ model R-454B multi-zone outdoor units. This branch box is essential for managing refrigerant flow and power distribution from the outdoor condenser to up to five connected indoor units. It can be combined with another PAC-LMA50BC using a Y joint to connect a total of eight indoor units. The unit features electronic LEVs that help manage optimal refrigerant flow and ensure accurate indoor temperatures.

• Connectable to Smart Multi outdoor units
• Equipped with electronic LEVs for refrigerant flow management
• Compatible with MXZ model 5-Port R-454B Multi-Zone Outdoor Units

Product Highlights

This branch box enhances efficiency in refrigerant management for multi-zone systems.

Product Information

Standard Information

• Brand Name: Mitsubishi Electric
• MPN: PAC-LMA50BC

Technical Specifications

• Type: Branch Box
• Product Line: M-Series
• Product Category: Mini Split Accessories
• Ports Quantity: 5
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Suction Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Line Set A Liquid Connection: 1/4 Inch
• Line Set A Gas Connection: 3/8 Inch
• Line Set B Liquid Connection: 1/4 Inch
• Line Set B Gas Connection: 3/8 Inch
• Line Set C Liquid Connection: 1/4 Inch
• Line Set C Gas Connection: 3/8 Inch
• Line Set D Liquid Connection: 1/4 Inch
• Line Set D Gas Connection: 3/8 Inch
• Line Set E Liquid Connection: 1/4 Inch
• Line Set E Gas Connection: 1/2 Inch
• Product Height: 6 3/4 Inches
• Product Width: 17 3/4 Inches
• Product Depth: 11 1/16 Inches
• Product Weight: 16 Pounds
