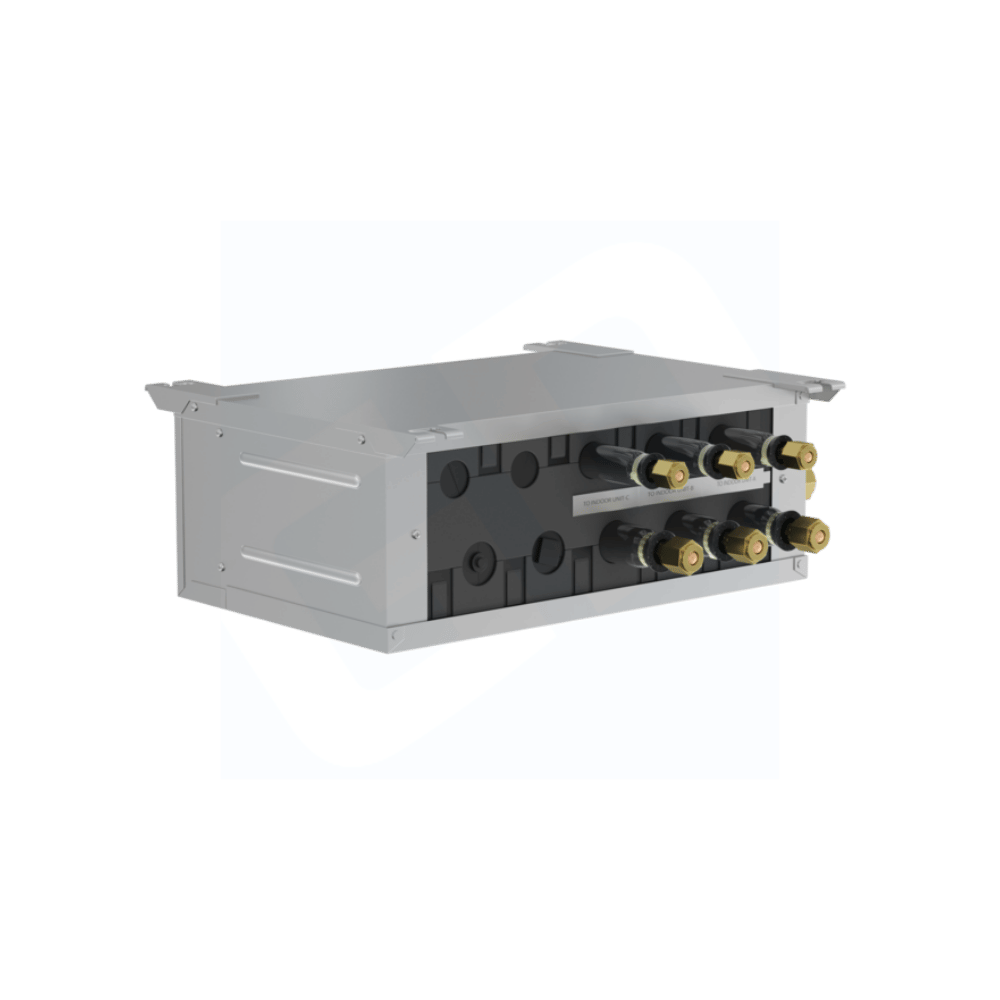

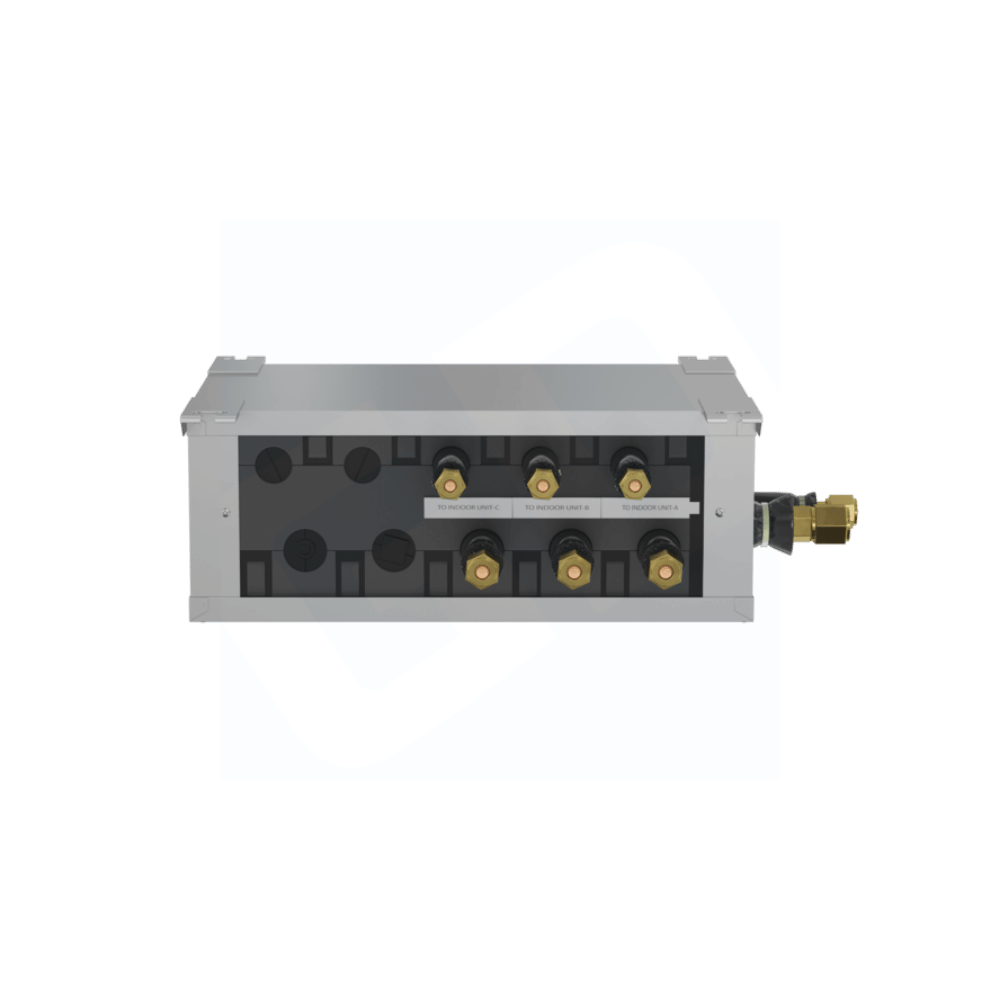

Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box

Product Description

The Mitsubishi Electric PAC-LMA30BC is a branch box for R454B multi-zone outdoor units. It connects up to three indoor units and helps achieve optimal refrigerant distribution. This unit supports accurate indoor temperature maintenance and can be linked to additional branch boxes to increase capacity.

• Connects up to three indoor units.
• Ensures balanced refrigerant flow.
• Compatible with R454B refrigerant.

Product Highlights

This branch box is ideal for both residential and commercial HVAC systems.

Product Information

Standard Information

• Manufacturer: Mitsubishi
• Brand Name: Mitsubishi Electric

Technical Specifications

• MPN: PAC-LMA30BC
• Power Supply: Single-phase, 208/230V, 60Hz
• Running Current: 0.15A
• Dimensions (W x D x H): Seventeen and three-fourths x Eleven and one-sixteenth x Six and three-fourths inches (450mm x 280mm x 170mm)
• Weight: 15.00
• Indoor Unit Connections Liquid Line: One-fourth inches (6.35mm) x 3
• Indoor Unit Connections Gas Line: Three-eighths inches (9.52mm) x 3
• Outdoor Unit Connections Liquid Line: Three-eighths inches (9.52mm)
• Outdoor Unit Connections Gas Line: Five-eighths inches (15.88mm)
• Refrigerant: R454B
• Height: Six and three-fourths inches
• Width: Seventeen and three-fourths inches
• Depth: Eleven and one-sixteenth inches
