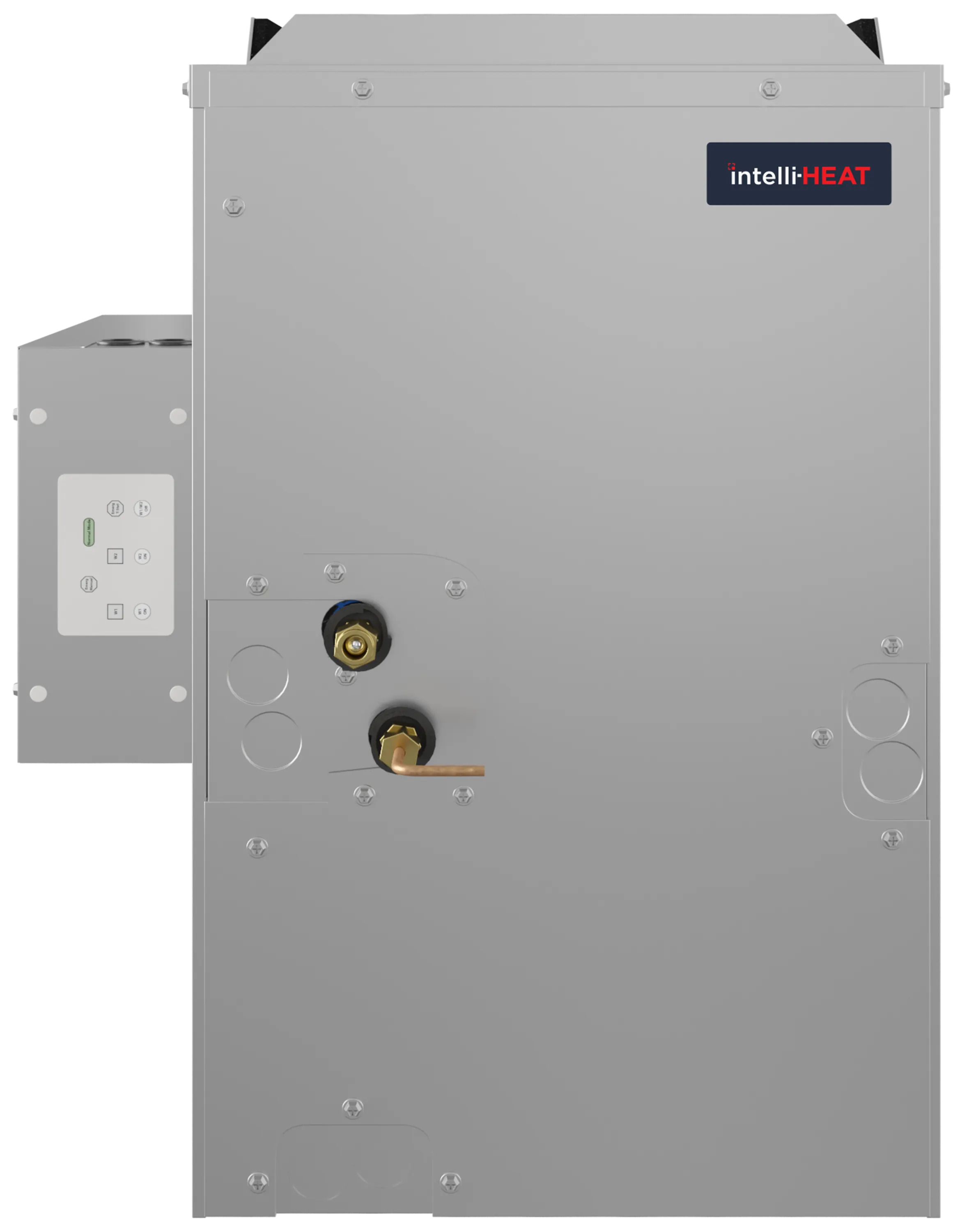

Mitsubishi Electric PAA-A24AA1 intelli-HEAT Multi-Position Coil 2 Ton

Product Description

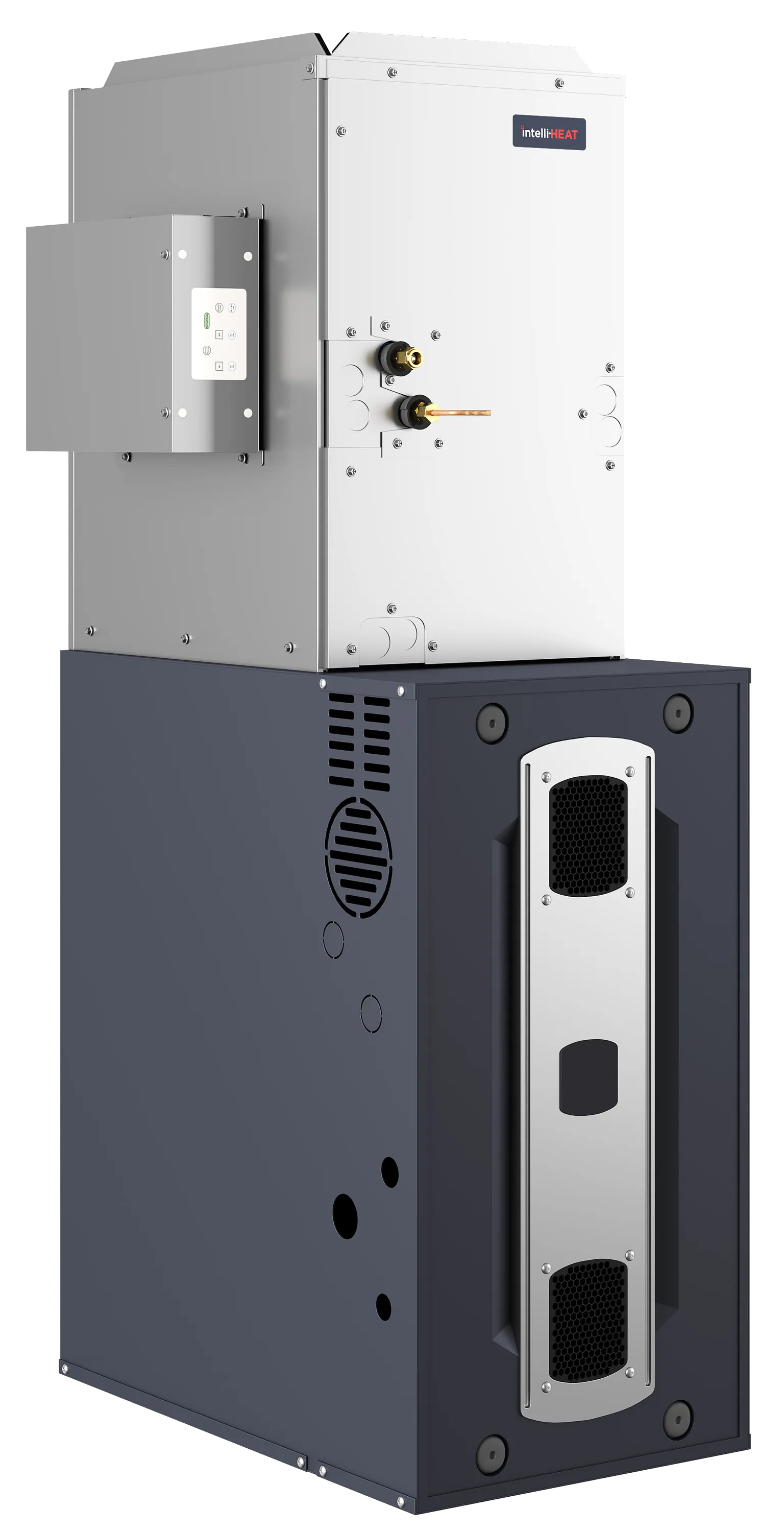

The Mitsubishi Electric PAA-A24AA1 intelli-HEAT™ coil is designed to add air conditioning to an existing furnace or be the solution when installing a new system. This cased coil can be used in horizontal or vertical applications. It features an intelligent comfort control function that switches between heat pump and furnace to reduce gas usage. Pair with a Mitsubishi outdoor condenser.

• Intelligent Comfort Control Function
• Heat Exchanger
• Kumo Cloud Compatible

Product Highlights

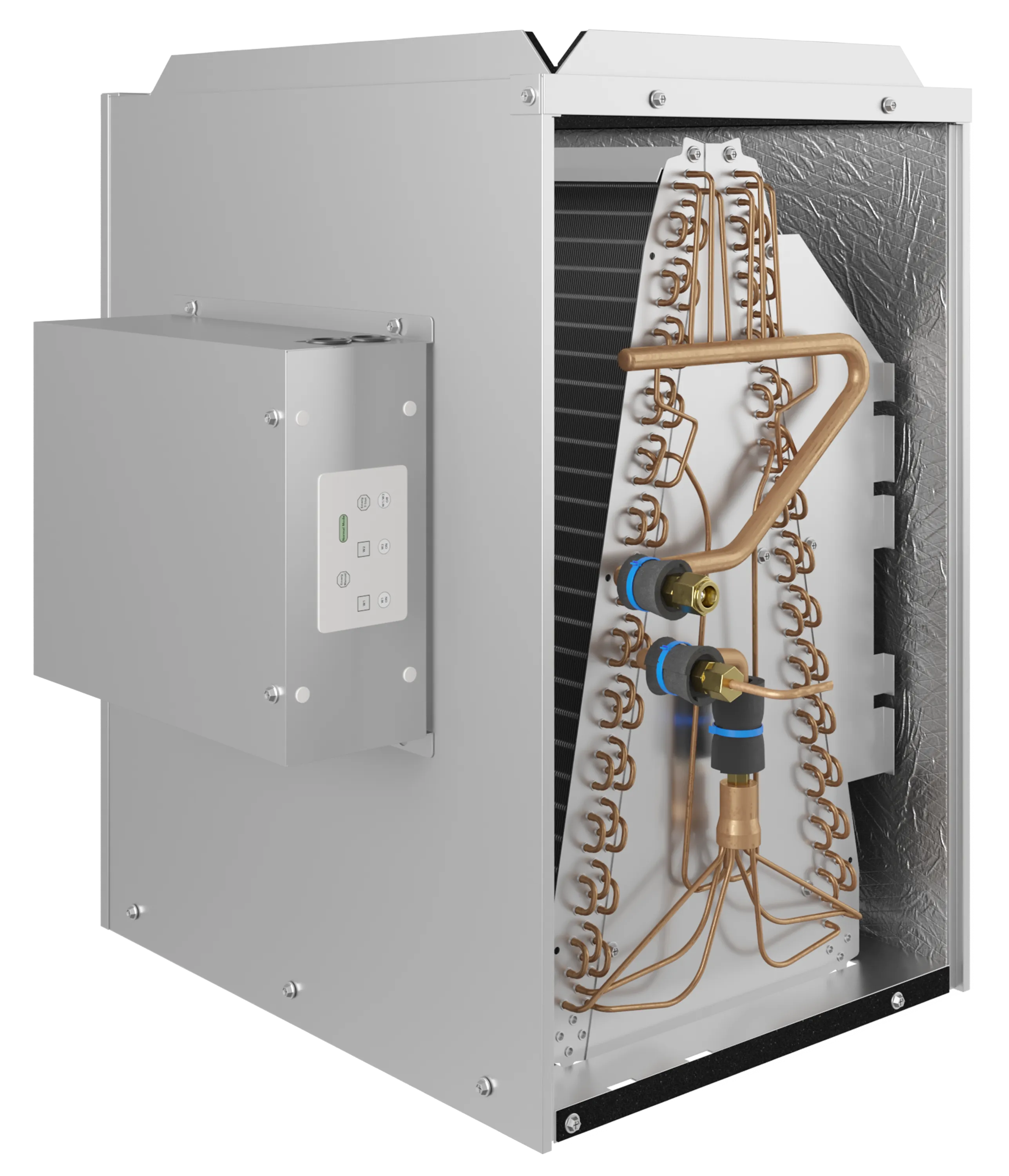

The intelli-HEAT™ coils come with an optimized heat exchanger that provides longevity and efficiency. Compatible with any thermostatically controlled NG or LP furnace that is ANSI-Z21.47/CSA2.3 certified.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PAA-A24AA1

Technical Specifications

• Type: Evaporator Coil
• Product Line: intelli-HEAT
• Product Category: Evaporator Coil
• Refrigerant Type: R-410A
• Casing: Cased
• Configuration: Multi-Position
• Capacity: 2.0 Tons
• Cooling BTU: 24000
• Heating BTU: 26000
• Maximum Air Flow: 830 CFM
• Minimum Air Flow: 551 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Suction Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 14 1/2 Inches
• Product Height: 27 19/48 Inches
• Product Width: 14 1/2 Inches
• Product Depth: 21 17/24 Inches
• ETL Listed: Yes
• Series: P-Series
• Model: PAA
• ENERGY STAR: Yes
• SEER2: Up to 16.5
• HSPF2: Up to 8.5
