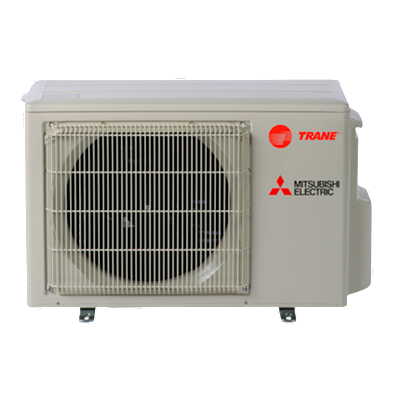

Mitsubishi Electric NTXSMT09A111AA Service Manual
Availability:
Out Of Stock
Final Sale / No Returns
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
- $771.75
- $771.75
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.
-
Secure Payments
-
Expert Advice
-
Fast Shipping
Product Description
The Mitsubishi Electric NTXSMT09A111AA service manual includes essential technical information. This manual covers various aspects such as technical changes, part names, functions, specifications, and operation details.
- Covers technical changes and part functions
- Includes wiring and refrigerant system diagrams
- Provides troubleshooting and disassembly instructions
Product Highlights
This service manual is designed for technicians working with Mitsubishi Electric units, ensuring comprehensive knowledge for maintenance and repairs.
Product Information
Standard Information
- Brand: Mitsubishi Electric
- MPN: NTXSMT09A111AA
Technical Specifications
- Contents: Technical changes, part names and functions, specifications, operation
- Outlines and dimensions: Required space, wiring diagram
- Refrigerant system diagram: Data, heating capacity, performance curve
- Standard operation data: Actuator control, outdoor fan motor control
- Service functions: Troubleshooting, disassembly instructions, operating procedure
