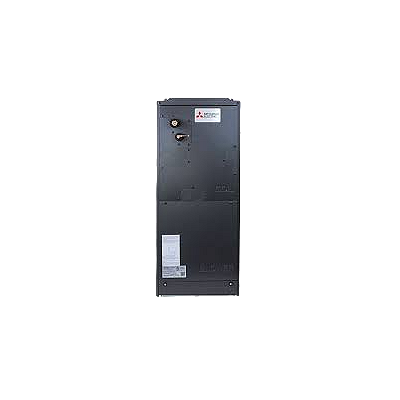

Mitsubishi Electric NTXAMT30A112AA Air Handler 30,000 Btu

Product Description

The Mitsubishi Electric NTXAMT30A112AA is a versatile air handler that combines heating and cooling functionalities. This multi-position unit supports both horizontal and vertical installations. Equipped with an ECM motor and designed for use with R-410A refrigerant, this air handler operates effectively in various conditions.

• Cools with a capacity ranging from 13,400 to 27,000 Btu/hr.
• Heats with a capacity ranging from 13,000 to 34,000 Btu/hr.
• Operates at a sound level of 41 dBA for quiet performance.

Product Highlights

This air handler is suitable for installations with a power supply of 208/230V. It is constructed from steel and features a hot-dipped coated finish for durability. The unit provides a flow rate of 875 cfm for both cooling and heating.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: NTXAMT30A112AA

Technical Specifications

• Cooling Capacity: 13,400 to 27,000 Btu/hr
• Heating Capacity: 13,000 to 34,000 Btu/hr
• Voltage Rating: 208/230 V
• Amperage Rating: 4.13 A
• Frequency Rating: 60 Hz
• Phase: 1 ph
• CFM Rating: 875 cfm
• EER Rating: 9
• SEER Rating: 15.2
• Connection Type: Flared
• Refrigerant Type: R-410A
• Sound Level: 41 dBA
• Motor Type: ECM
• Dimensions: 43-3/4 in H x 21 in W x 21-5/8 in D
• Material: Steel
• Finish: Hot-Dipped Coated
• Compressor Type: Scroll
• Connection Size: 3/4 in
• Liquid Line Size: 3/8 in
• Suction Line Size: 5/8 in
• Temperature Rating: 68 to 90 deg F Cooling, 59 to 77 deg F Heating
• Pressure Rating: 0.3 in-WG, 0.5 in-WG, 0.8 in-WG
• Cooling Flow Rate: 875 cfm
• Heating Flow Rate: 875 cfm
• Filter Size: 20 x 16 x 1 in
• Control Type: Remote
• Series: NV Series
• Weight: 141 lbs
• Product Type: Indoor - Convertible Ducted
• Nominal Capacity BTU Rating: 30,000
