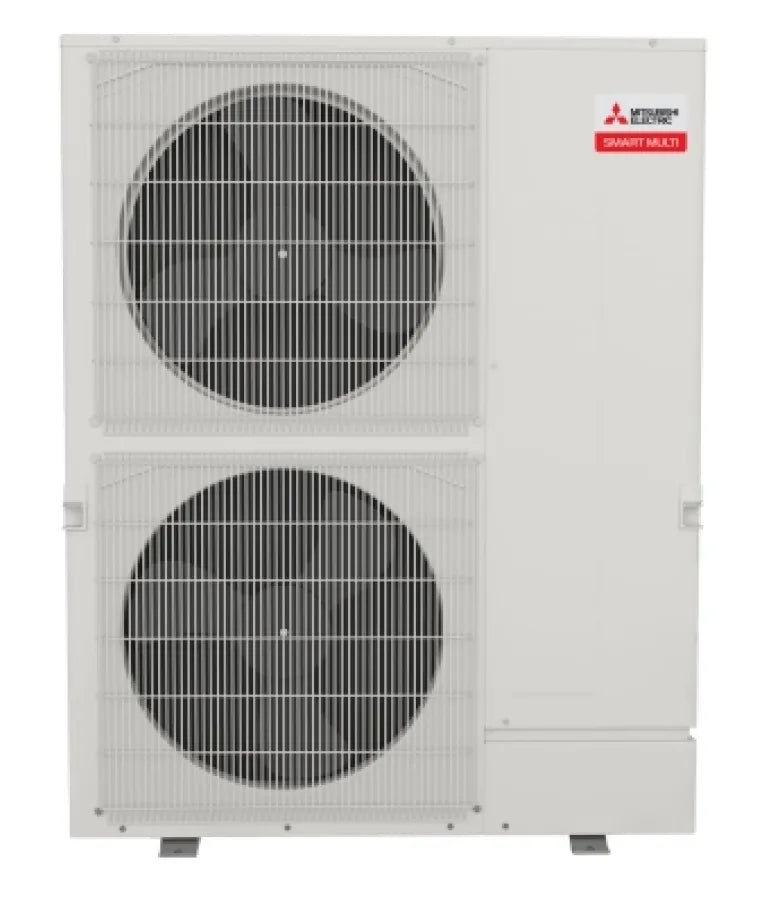

Mitsubishi Electric MXZ-SM60NL-U1 Smart Multi Condenser 60000 Btu R-454B

Product Description

The Mitsubishi Electric MXZ-SM60NL-U1 is a 60,000 Btu Smart Multi Condenser using R-454B refrigerant. This extremely efficient heating and cooling option can handle up 8 zones if connected to M&P-Series indoor units, and up to 12 zones if connected to City Multi indoor units. It is perfect for residential and commercial applications.

• 60000 BTUs
• Compatible with M- and P-Series and CITY MULTI® indoor units (branch box required for connection with M- and P-Series)
• Quiet operation: Outdoor units are as quiet as a typical conversation

Product Highlights

The MXZ-SM60NL-U1 multi-zone heat pump is an efficient solution for heating and cooling, with the ability to connect to multiple indoor units for customized climate control.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-SM60NL-U1

Technical Specifications

• Application: Heating Cooling
• Cooling Capacity (BTU): 60000
• Heating Capacity (BTU): 66000
• Refrigerant Type: R454B
• Product Type: Outdoor Unit
• Energy Star Rated: Yes
• Voltage: 208/230V
• Unit Type: 5-Ton Inverter Condenser
• Product Line: Smart Multi
• Operating Mode: Cooling & Heating
• Low Ambient Heat: NO
• Number of Zones: 8
• Unit Size: 60,000 BTU
• Required Install Kit: Branch Box (M-P Series)
• Cooling at 95F: Maximum Capacity Btu/h: 60,000 // 60,000 // 60,000
• Cooling at 95F: Rated Capacity Btu/h: 60,000 // 60,000 // 60,000
• Cooling at 95F: Minimum Capacity Btu/h: 16,000 // 16,000 // 16,000
• Heating at 47F : Maximum Capacity Btu/h: 66,000 // 66,000 // 66,000
• Heating at 47F: Rated Capacity Btu/h: 66,000 // 66,000 // 66,000
• Heating at 47F: Minimum Capacity Btu/h: 13,500 // 13,500 // 13,500
• Heating at 5F: 46,500 // 46,500 // 46,500
• Heating at -13F: 30,000 // 30,000 // 30,000
• SEER2: 20 // 18.20 // 16.40
• EER2: 12 // 10.70 // 9.40
• HSPF2: 10.50 // 10 // 9.50
• Heating Minimum Temp: -24 F
• Cooling Minimum Temp: 5 F (with wind baffle)
