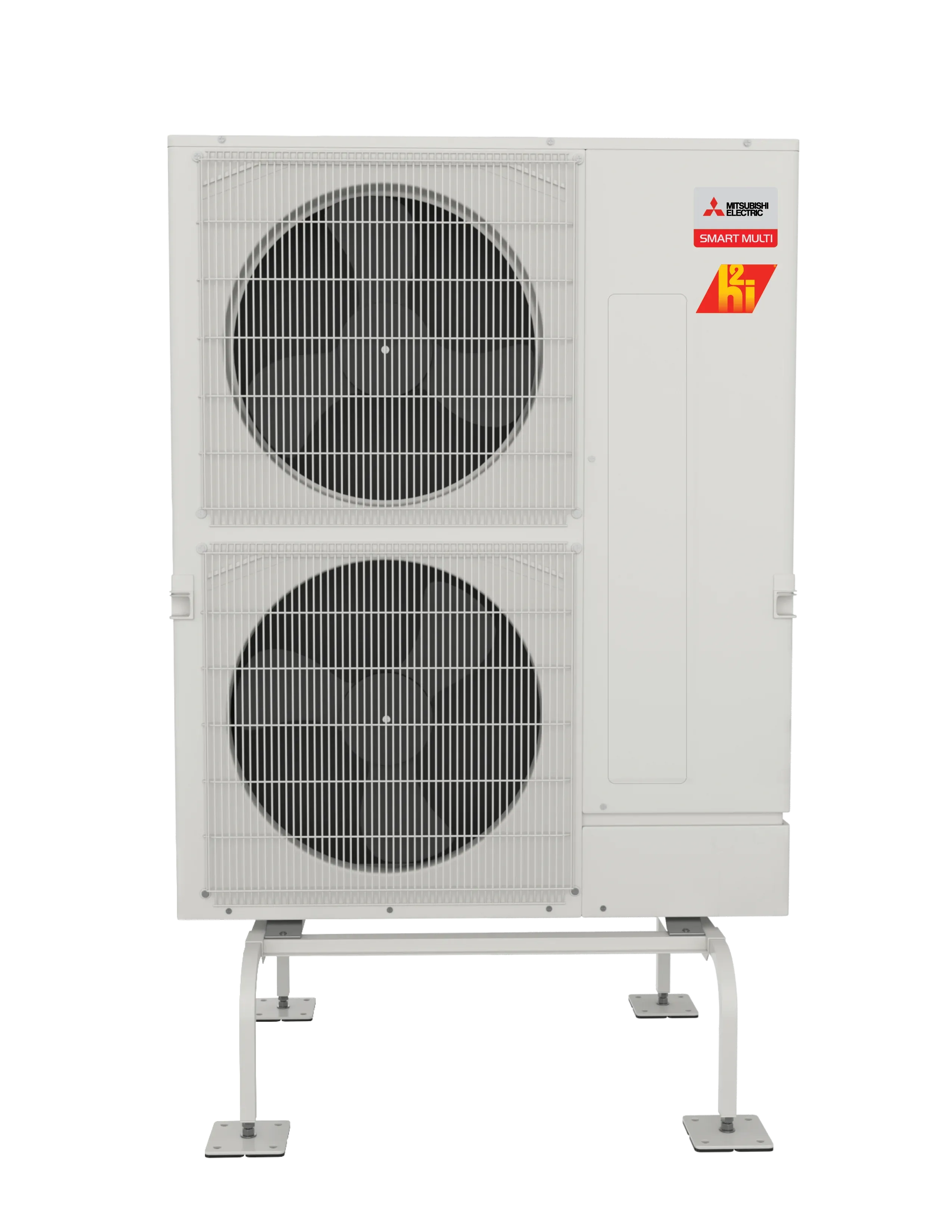

Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit

Product Description

The Mitsubishi Electric MXZ-SM60NL is an outdoor heat pump unit suitable for multi-zone systems. This unit is part of the Smart Multi series and is designed to work with M-Series, P-Series, and CITY MULTI indoor units.

• Utilizes R454B refrigerant for efficient operation.
• Connects to multiple indoor units for customized heating and cooling.
• Recommended for residential and commercial environments.

Product Highlights

This heat pump unit offers flexibility with its ability to connect to various indoor units, making it ideal for diverse settings.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: MXZ-SM60NL

Technical Specifications

• Unit Type: 5-Ton Inverter Condenser
• Operating Mode: Cooling & Heating
• Number of Zones: 8
• Unit Size: 60,000 BTU
• Cooling Capacity at 95F Maximum: 60,000 BTU/h
• Heating Capacity at 47F Maximum: 66,000 BTU/h
• SEER2: Up to 23
• Dimensions: 41-11/32 inches W x 13 inches D x 52-11/16 inches H
• Sound Level: As low as 58 dB(A)
• ENERGY STAR: Yes
