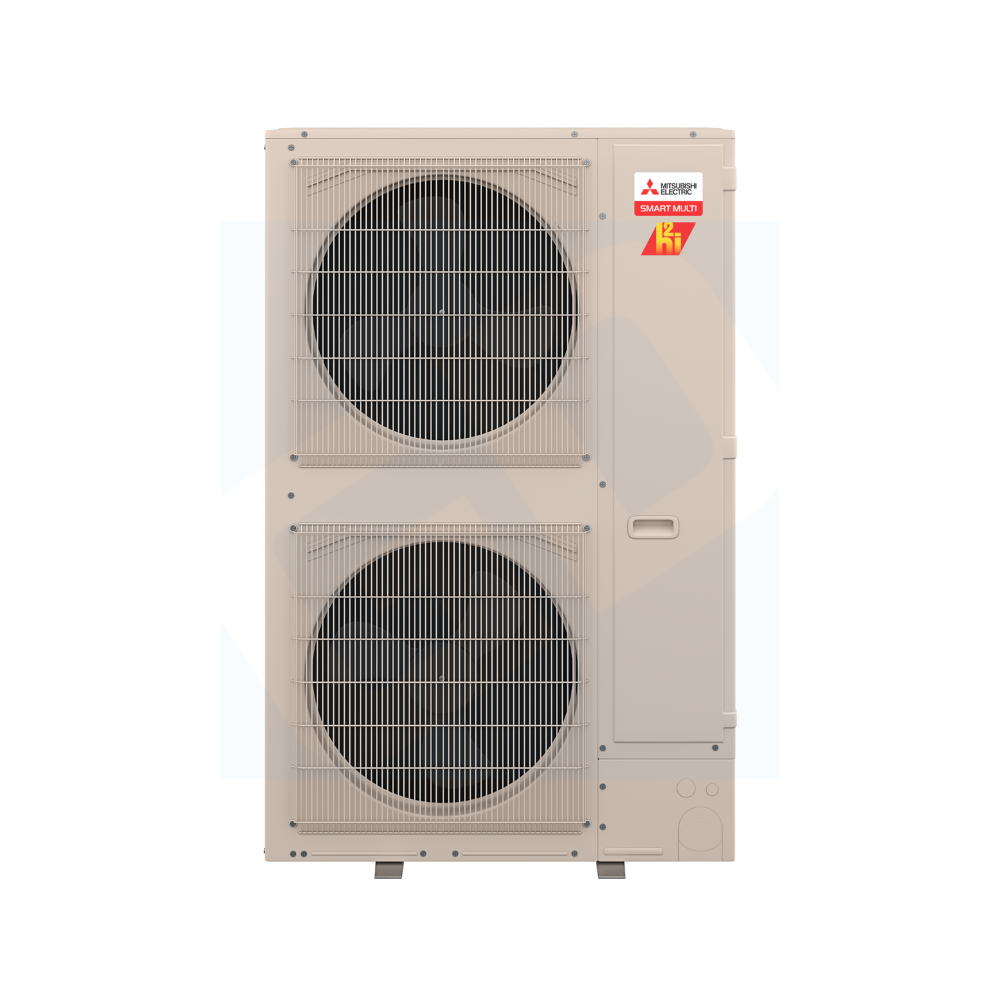

Mitsubishi Electric MXZ-SM48NLHZ H2i Ductless Mini Split Heat Pump System - 48k BTU

Product Description

The MITSUBISHI ELECTRIC MXZ-SM48NLHZ H2i Ductless Mini Split Heat Pump System offers ideal comfort with Mitsubishi's multiroom system. Each zone operates independently, allowing customized temperature settings. It features H2i technology for superior heating in cold climates. The outdoor condenser uses inverter technology and an electronic linear expansion valve for improved temperature accuracy and system efficiency.

• Built-In Wi-Fi for control with smart enabled devices
• Precision Temperature Control Technology improves temperature accuracy and system efficiency
• H2i Hyper Heat performance offers 100% heating capacity at 5 degrees and continues to provide heating in outdoor conditions as low as -13 degrees Fahrenheit.

Product Highlights

This system is flexible for cooling and heating needs, offering numerous indoor unit combinations and lower energy costs year-round.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-SM48NLHZ

Technical Specifications

• Condition: New
• Type: Wall Mounted
• Product Line: M-Series H2i
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 4
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 6 + 9 + 9 + 15
• Base Pan Heater Included: Yes
• Outdoor Unit Size: 48000 BTU
• DOE Regional Compliance: Nationwide
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• SEER2: 23.0
• EER2: 13.1
• HSPF2: 11.5
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Energy Star Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215685467
• Unit Type: 4.0 Ton Inverter Condenser
• Unit Size: 48,000 BTU
• Required Install Kit: Branch Box (M-P Series)
• Cooling at 95F: Maximum Capacity Btu/h: 48,000 // 48,000 // 48,000
• Cooling at 95F: Rated Capacity Btu/h: 48,000 // 48,000 // 48,000
• Cooling at 95F: Minimum Capacity Btu/h: 15,000 // 15,000 // 15,000
• Heating at 47F: Maximum Capacity Btu/h: 54,000 // 54,000 // 54,000
• Heating at 47F: Rated Capacity Btu/h: 54,000 // 54,000 // 54,000
• Heating at 47F: Minimum Capacity Btu/h: 13,000 // 13,000 // 13,000
• Heating at -13F: 54,000 // 54,000 // 54,000
• Cooling Minimum Temp: 14 F
• Room Cooling/Heating Capacity: up to 2000 sq ft
• Brand Name: Mitsubishi Electric
• IPN: 5443079
• MPN: MXZ-SM48NLHZ-U1
