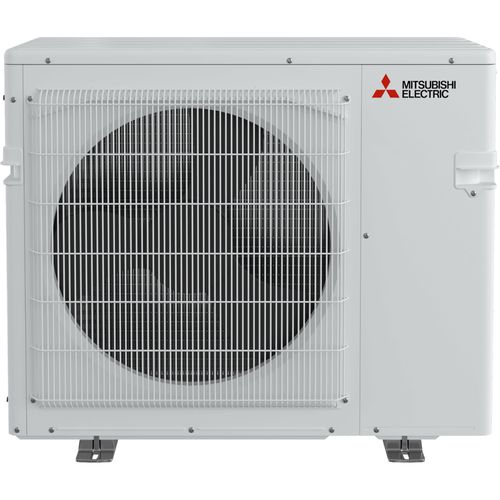

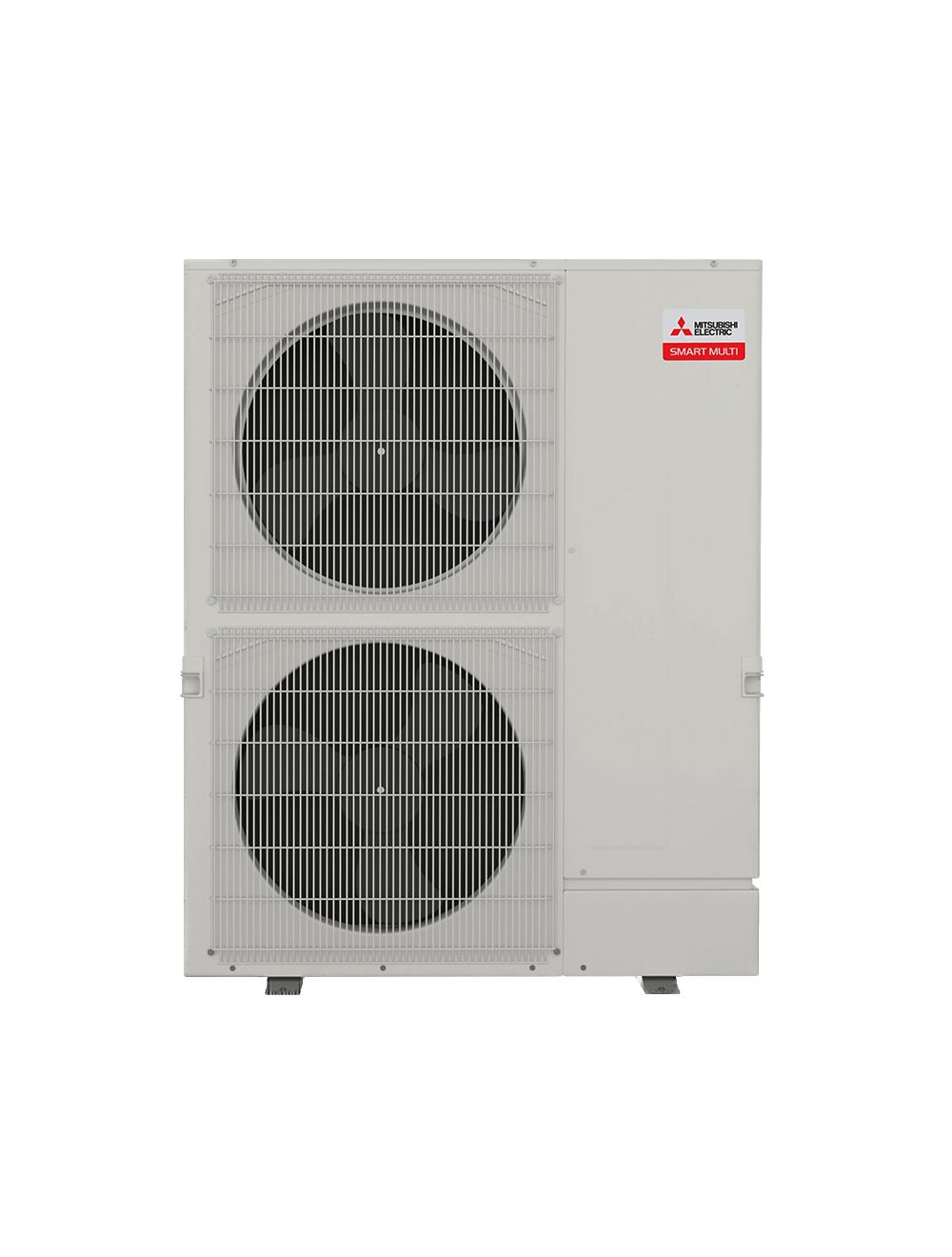

Mitsubishi Electric MXZ-SM48NL-U1 48,000 Btu Smart Multi Condenser R-454B

Product Description

The Mitsubishi Electric MXZ-SM48NL-U1 is a 48,000 Btu Smart Multi Condenser using R-454B refrigerant. This outdoor unit connects to multiple indoor units, creating a tailored heating and cooling system. Compatible with M- and P-Series and CITY MULTI® indoor units, it suits residential or commercial applications and is a direct replacement for MXZ-SM48NAM*.

• 48000 BTUs
• Compatible with M- and P-Series and CITY MULTI® indoor units (branch box required for connection with M- and P-Series)
• Compressor overcurrent detection

Product Highlights

The MXZ-SM48NL-U1 offers efficient, multi-zone climate control with quiet operation and seacoast protection.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-SM48NL-U1

Technical Specifications

• Energy Star Rated: Yes
• Application: Heating Cooling
• Refrigerant Type: R454B
• Cooling Capacity (BTU): 48000
• Product Type: Outdoor Unit
• Heating Capacity (BTU): 50000
• Voltage: 208/230V
• Unit Type: 4-Ton Inverter Condenser
• Product Line: Smart Multi Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: No
• Number of Zones: 8 (with branch box) or 12 (without branch box)
• Unit Size: 48,000 BTU
• Required Install Kit: Branch Box (M-P Series)
• Cooling at 95F: Maximum Capacity Btu/h: 42,000
• Cooling at 95F: Rated Capacity Btu/h: 42,000
• Cooling at 95F: Minimum Capacity Btu/h: 14,000
• Heating at 47F: Maximum Capacity Btu/h: 48,000
• Heating at 47F: Rated Capacity Btu/h: 48,000
• Heating at 47F: Minimum Capacity Btu/h: 12,800
• Heating at -13F: Maximum Capacity Btu/h: 48,000
• SEER2: 21.50
• EER2: 13.40
• HSPF2: 11.10
• Heating Minimum Temp: -24 0 F
• Cooling Minimum Temp: 5 0F ( With wind baffles installed)
• Room Cooling/Heating Capacity: up to 2000 sq ft
• Model Number: MXZ-SM48NL
