Mitsubishi Electric MXZ-SM36NLHZ-U1 Smart Multi Heat Pump 36,000 BTU Replacement MXZ-SM36NAMHZ2-U1

Product Description

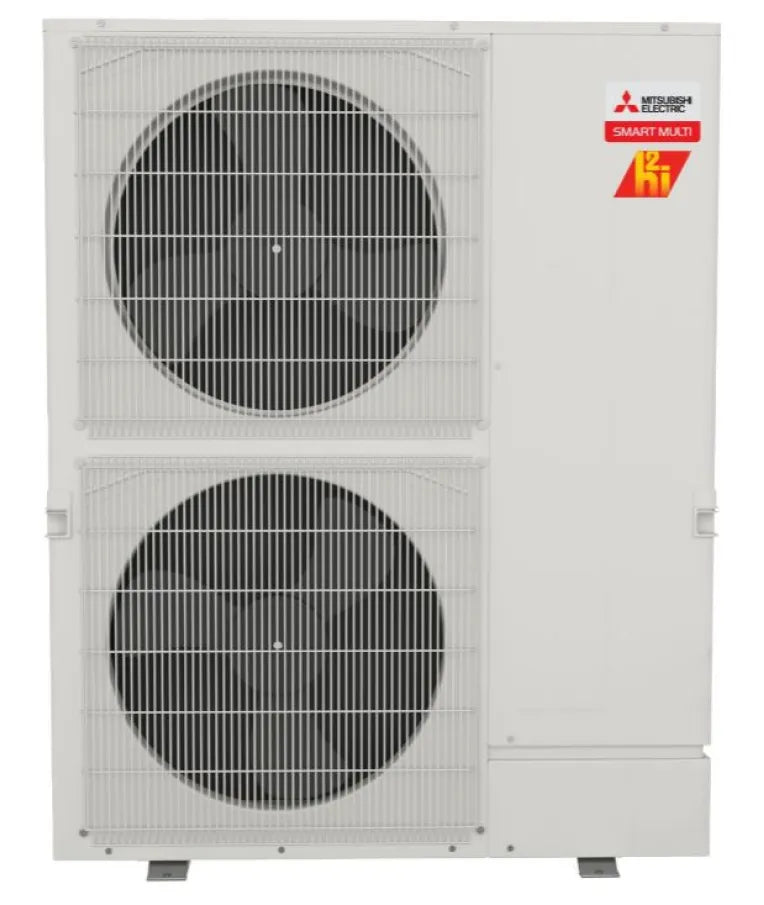

The Mitsubishi MXZ-SM36NLHZ-U1 is a 36,000 BTU hyper-heat outdoor heat pump. This outdoor unit connects to multiple indoor units, up to 4 with a branch box or 11 without. Part of Mitsubishi's Smart Multi Series, it suits residential or commercial use, especially in regions with sub-zero temperatures. It uses R454B refrigerant and replaces MXZ-SM36NAMHZ2-U1.

• Hyper-Heating: Operates effectively down to -13F.
• Compatible with M- and P-Series and CITY MULTI indoor units (branch box required for connection with M- and P-Series)
• Features compressor thermal protection and fan motor overheating/voltage protection.

Product Highlights

The MXZ-SM36NLHZ-U1 heat pump ensures efficient heating even in extremely cold climates. Its versatile compatibility and protective features make it a reliable choice for various applications.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-SM36NLHZ-U1

Technical Specifications

• Unit Type: 3-Ton Inverter Condenser
• Product Line: Smart Multi Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes (Hyper-Heating)
• Number of Zones: 4 (with branch box) or 11 (without branch box)
• Unit Size: 36,000 BTU
• Required Install Kit: Branch Box (M_P Series)
• Refrigerant Type: 454B
• Cooling at 95F: Maximum Capacity Btu/h: 36,000
• Cooling at 95F: Rated Capacity Btu/h: 36,000
• Cooling at 95F: Minimum Capacity Btu/h: 13,000
• Heating at 47F: Maximum Capacity Btu/h: 42,000
• Heating at 47F: Rated Capacity Btu/h: 42,000
• Heating at 47F: Minimum Capacity Btu/h: 12,600
• Heating at -13F: Maximum Capacity Btu/h: 42,000
• SEER2: 23
• EER2: 14.50
• HSPF2: 12
• Heating Minimum Temp: -24 F
• Cooling Minimum Temp: 5 F (with wind baffle)
• Room Cooling/Heating Capacity: up to 1500 sq ft
• Refrigerant: R-454B
• Suction Line: 5/8"
• Nominal Tons: 3 Ton
• Liquid Line: 3/8"
