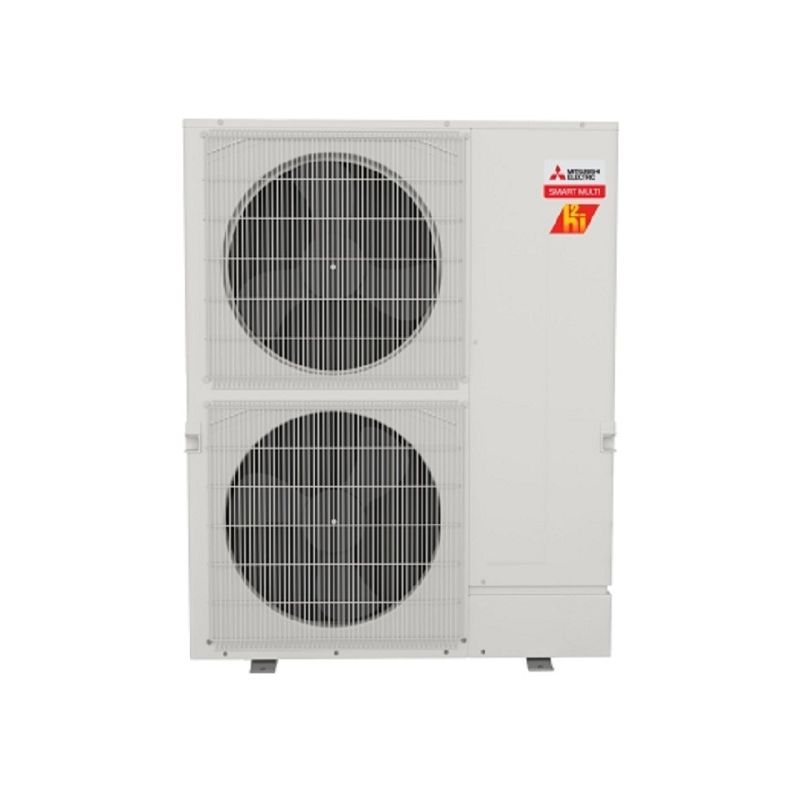

Mitsubishi Electric MXZ-SM36NLHZ heat pump 36,000 BTU replacement MXZ-SM36NAMHZ2-U1

Product Description

The Mitsubishi Electric MXZ-SM36NLHZ is a high-performance outdoor heat pump unit designed for multi-zone applications. Capable of connecting up to four indoor units with a branch box, it offers efficient heating and cooling solutions for residential and light commercial settings. It features a variable speed INVERTER-driven compressor and operates quietly at sound pressure levels as low as 49 dB(A).

• Variable Speed INVERTER-Driven Compressor
• Operates at sound pressure levels as low as 49 dB(A)
• Features a heat exchanger and base panel rated for 2,000 hours of protection

Product Highlights

Ideal for applications requiring efficient heating and cooling performance across multiple zones, ensuring reliable operation and enhanced comfort throughout the year.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-SM36NLHZ

Technical Specifications

• Cooling BTU: 36000
• Heating BTU: 36,000 BTU
• Decibel Level (dBA): 53
• Refrigerant: R454B
• SEER2: 23
• Compressor Type: Twin Rotary
• Liquid Valve Size: 3/8
• Suction Valve Size: 5/8
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 86
• Min. Breaker Size: 51
• BTU/Tonnage: 36,000 BTU/3 Ton
• Zone Compatibility: Multi Zone
• Height: 52.69"
• Width: 41.34"
• Depth: 13"
• Replaces: MXZ-SM36NAMHZ2-U1
• Operating Mode: Cooling & Heating
• Number of Zones: 4 (with branch box) or 11 (without branch box)
• Unit Size: 36,000 BTU
• Low Ambient Heat: Yes (Hyper-Heating)
• Cooling Capacity: 36000 BTU
• Heating Capacity: 42000 BTU
• Maximum Sound Level: 53 dB
• Voltage Rating: 208/230 V
• Phase: 1 ph
• Frequency Rating: 60 Hz
• EER Rating: 14.5
• HSPF Rating: 12
• Heating Operating Temperature: -13 to 70 deg F
• Cooling Operating Temperature: 23 to 115 deg F
• Liquid Line Size: 3/8 in
• Suction Line Size: 5/8 in
• Fuse Rating: 45 A
• Drive Type: Inverter
• Heating Sound Level: 53 dBA
• Cooling Sound Level: 49 dBA
• Overall Length: 13 in
• Overall Width: 41-11/32 in
• Overall Height: 52-11/16 in
• Power Rating: 2485 W Cooling, 3080 W Heating
• Heating Minimum Temp: -24 F
• Cooling Minimum Temp: 5 F (with wind baffle)
• Room Cooling/Heating Capacity: up to 1500 sq ft
• Minimum Circuit Ampacity: 51 Amps
• Recommended Breaker Size: 45 Amps
