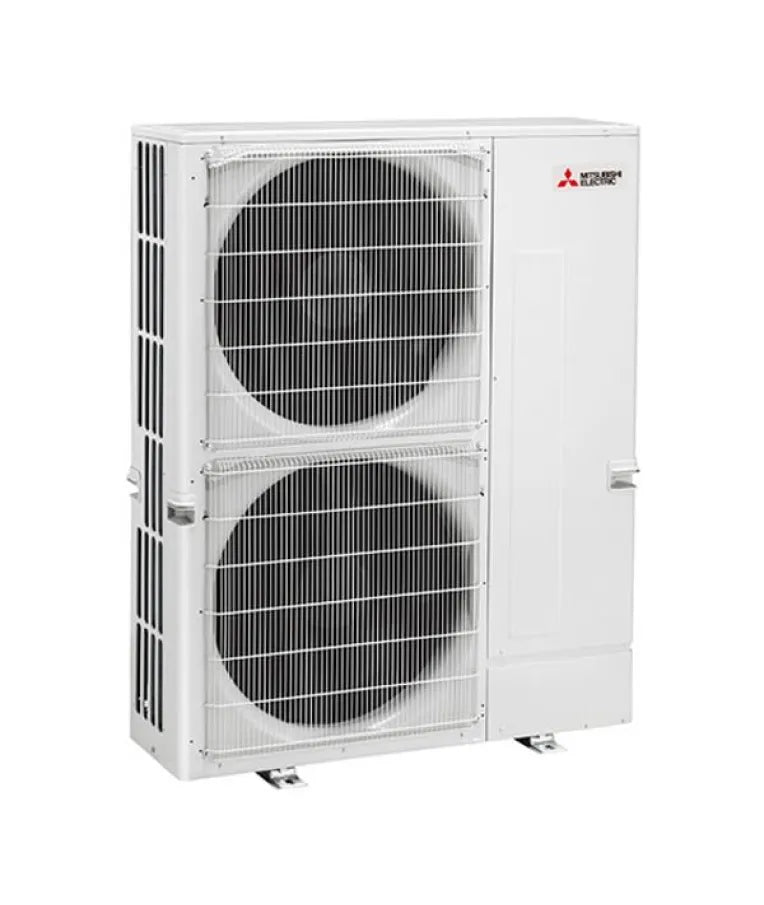

Mitsubishi Electric MXZ-SM36NL-U1 MXZ-SM36NL 36,000 BTU Smart Multi Heat Pump Unit R454B

Product Description

The Mitsubishi Electric MXZ-SM36NL-U1 36,000 BTU Smart Multi outdoor heat pump is an efficient heating and cooling option. It can handle up to four zones if connected to M&P-Series indoor units, and up to 11 zones if connected to City Multi indoor units. This system uses the new R454B refrigerant.

• Compatible with M- and P-Series and CITY MULTI indoor units (branch box required for connection with M- and P-Series)
• INVERTER-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Quiet operation: Outdoor units are as quiet as a typical conversation

Product Highlights

The MXZ-SM36NL-U1 is part of Mitsubishi's Smart Multi Series, catering to residential or commercial applications. It features compressor overcurrent detection, fan motor overheating/voltage protection, and high pressure protection.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-SM36NL-U1

Technical Specifications

• Unit Type: 3-Ton Inverter Condenser
• Product Line: Smart Multi Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: No
• Number of Zones: 4 (with branch box) or 11 (without branch box)
• Unit Size: 36,000 BTU
• Required Install Kit: Branch Box (M-P Series)
• Refrigerant Type: 454B
• Outdoor Unit: MXZ-SM36NL (Non-Ducted // Mixed // Ducted)
• Cooling at 95F: Maximum Capacity Btu/h: 36,000 // 36,000 // 36,000
• Cooling at 95F: Rated Capacity Btu/h: 36,000 // 36,000 // 36,000
• Cooling at 95F: Minimum Capacity Btu/h: 13,000 // 13,000 // 13,000
• Heating at 47F: Maximum Capacity Btu/h: 41,000 // 41,000 // 41,000
• Heating at 47F: Rated Capacity Btu/h: 41,000 // 41,000 // 41,000
• Heating at 47F: Minimum Capacity Btu/h: 12,600 // 12,600 // 12,600
• Heating at 5F: Maximum Capacity Btu/h: 29,000 // 29,000 // 29,000
• SEER2: 23 // 20.60 // 18.20
• EER2: 14.10 // 12.05 // 10
• HSPF2: 11 // 10.50 // 10
• Heating Minimum Temp: -24 F
• Cooling Minimum Temp: 5 F ( With wind baffles installed)
• Room Cooling/Heating Capacity: up to 1500 sq ft
