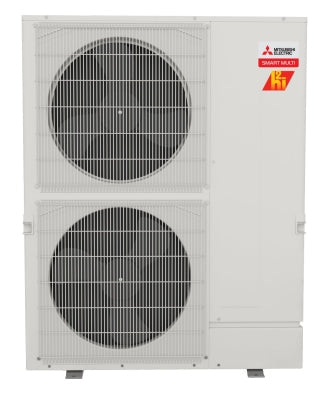

Mitsubishi Electric MXZ-SM36NAMHZ-U1 3-Ton Hyper-heating Multi-Zone Heat Pump

Mitsubishi Electric MXZ-SM36NAMHZ-U1 3-Ton Hyper-heating Multi-Zone Heat Pump

Description:
Multi-zone, H2i hyper-heating heat pump outdoor unit. Blue Fin anti-corrosion treatment on heat exchanger.

FEATURES:
Compatible with M- and P-Series and CITY MULTI indoor units. Branch box required for connection with M- and P-Series
Variable speed INVERTER-driven compressor
Seacoast protection on heat exchanger and base panel (rated for 2,000 hrs in accordance with ASTM B117 testing)
Thermal Differential 1F (with PAC-MKA32/52BC only)
Built-in base pan heater
Quiet outdoor unit operation, rated sound pressure as low as 49 d
B(A)
High pressure protection
Compressor thermal protection
Compressor overcurrent detection
Fan motor overheating/voltage protection
Hyper-heating performance offers 100% heating capacity at 5F and 75% heating capacity at -13F
ENERGY STAR certified (non-ducted, mixed & ducted)

Specification:
Weight: 302.030000
Product Family: MXZ-SM
Rated Load Amps: 19
Package Weight: 302.030000
Refrigerant: R-410A
SEER: 23
Package Width: 42.910000
Package Length: 17.720000
Liquid Line Size (OD): 3/8
Package Height: 56.300000
Phase: Single
UL Listed: No
Branch Box Connections: Yes
High Heat HP: No
Length: 17.720000
Stage: Single
Tier: M Series
Voltage: 208-230 VAC
Width: 42.910000
Liquid Line Fitting: Flare
Cooling Capacity: 15500-36000
Cubic Measurement: 24.770200
CFM: 3885
Brand: Mitsubishi
Cycle/Hertz: 60 Hz
Dimensional Weight: 312.000000
Height: 56.300000
Heating Capacity: 22500-42000
EAN: 0622632126059
EER: 15
Equipment Type: Heat Pump
