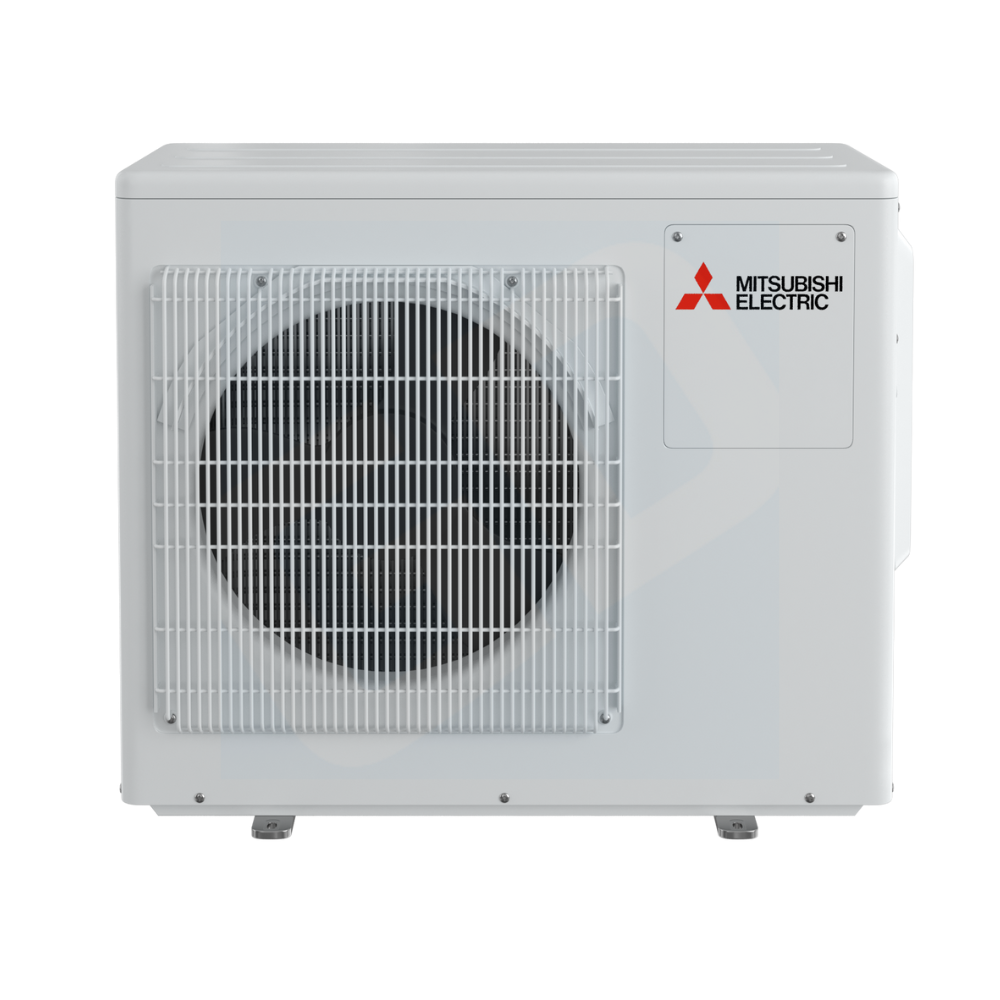

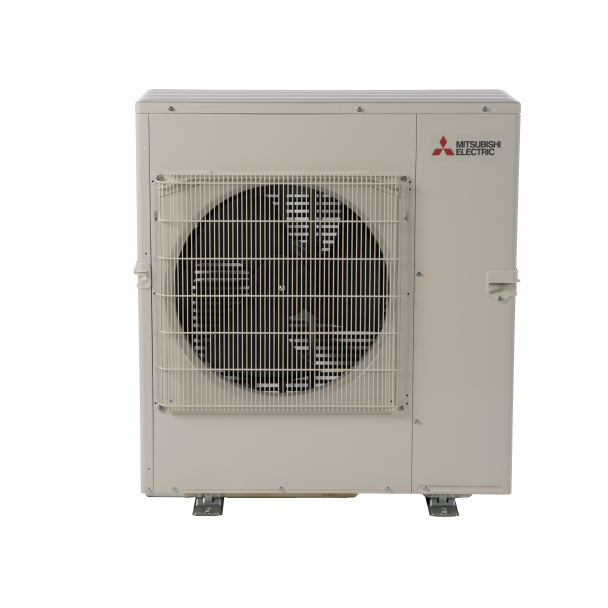

Mitsubishi Electric MXZ-5D42NL 42k BTU (3.5 Ton) M-Series Outdoor Condenser up to 5 Zones

Product Description

The Mitsubishi Electric MXZ-5D42NL is an outdoor heat pump unit made for multi-zone heating and cooling. With the capability to connect five indoor units, it meets the needs of residential and light commercial spaces, providing essential climate control for any season. It uses R454B refrigerant and operates quietly at fifty-two decibels.

• Variable speed inverter-driven compressor for energy efficiency.
• Blue Fin heat exchanger coating offers high corrosion resistance.
• Built-in base pan heater helps prevent ice during heating.

Product Highlights

The unit is designed for multiple zones, allowing for optimal comfort tailored to different areas. Its construction aligns with modern efficiency standards.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Replaces: MXZ-5C42NA4-U1

Technical Specifications

• Cooling BTU: 43000
• Heating BTU: 53600
• Decibel Level (dBA): 59
• Refrigerant Type: R-454B
• SEER2: 19.3
• Compressor Type: Twin Rotary
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 67
• Min. Breaker Size: 39
• BTU/Tonnage: 42,000 BTU/3.5 Ton
• Zone Compatibility: Multi Zone
• Height: 31.43 inches
• Width: 37.45 inches
• Depth: 13 inches
• Warranty: 10 Years with Online Registration
• Operating Mode: Cooling & Heating
• Number of Zones: 5
• Minimum Circuit Ampacity: 39.2 Amps
• Recommended Breaker Size: 67 Amps
• Maximum Line Length: 262 Feet
• Liquid Line Size: 1/4 inch
• Suction Line Size: 1/2 inch, 3/8 inch
• Cooling Capacity: 40500 BTU
• Heating Capacity: 45000 BTU
• Cooling Operating Temperature: 14 to 115 degrees F
• Heating Operating Temperature: 6 to 75 degrees F
• ETL Listed: Yes
• AHRI Certified: Yes
