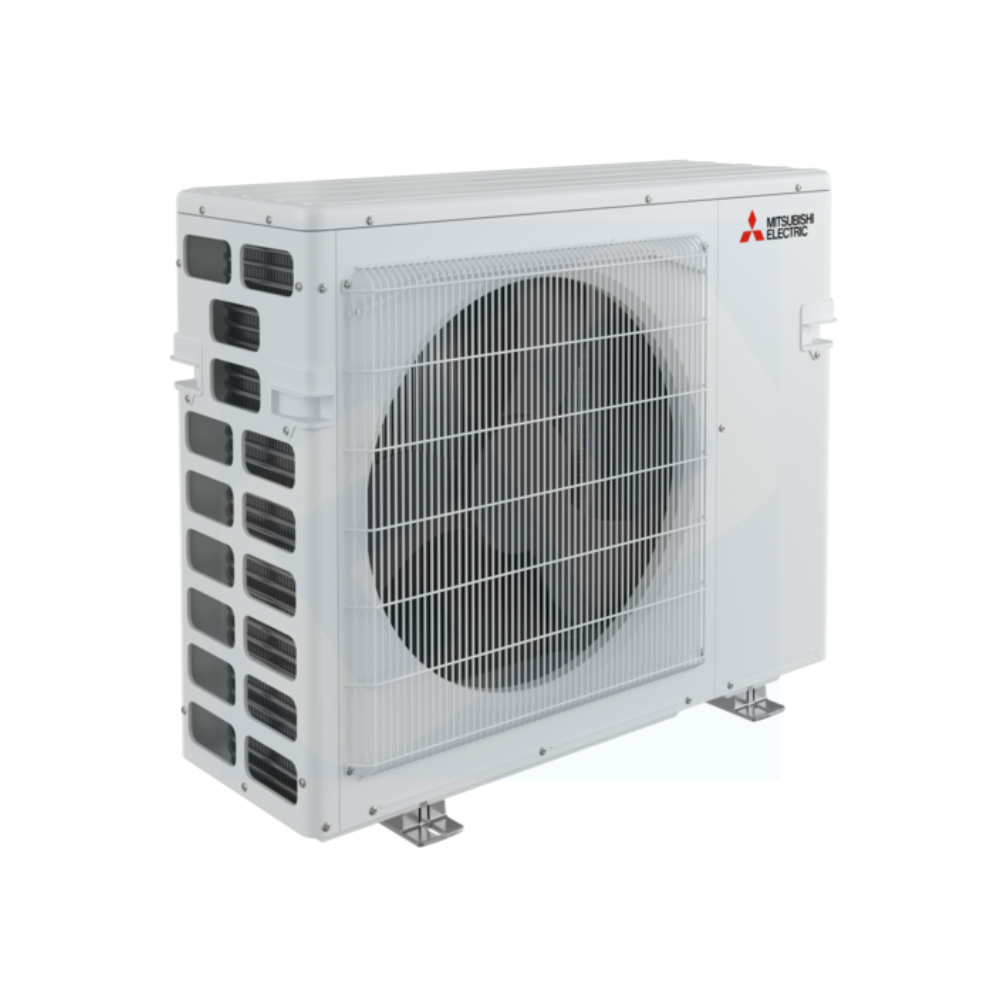

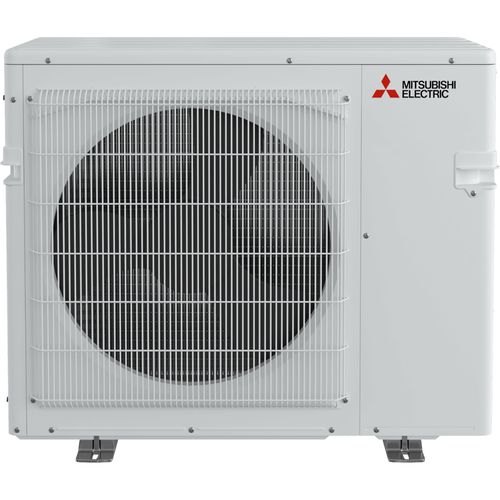

Mitsubishi Electric MXZ-5D36NL-U1 5-Port 36,000 Btu Multi-Zone Condenser, R-454B

Product Description

The MITSUBISHI ELECTRIC MXZ-5D36NL-U1 is a 5-Port 36,000 Btu Multi-Zone Condenser, R-454B. This efficient unit connects to various indoor unit types and handles up to five zones, making it ideal for open concept homes or multi-floor setups. It uses R454B refrigerant and replaces MXZ-4C36NA.

• 36000 BTUs
• Compact, small chassis
• Variable speed INVERTER-driven compressor

Product Highlights

The MXZ-5D36NL-U1 multi-zone condenser provides efficient and reliable heating and cooling for multiple zones, with features like inverter technology and quiet operation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-5D36NL-U1

Technical Specifications

• Application: Heating Cooling
• Voltage: 208/230V
• Energy Star Rated: No
• Number of Zones: 5
• Product Type: Outdoor Unit
• Cooling Capacity (BTU): 36000
• Heating Capacity (BTU): 36000
• Refrigerant Type: R-454B
• Unit Type: 3-Ton Inverter Condenser Heat Pump
• Product Line: M-Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: NO
• Cooling at 95F: Maximum Capacity Btu/h: 36,400 // 34,900 // 33,400
• Cooling at 95F: Rated Capacity Btu/h: 35,400 // 33,400 // 31,400
• Cooling at 95F: Minimum Capacity Btu/h: 12,600 // 12,600 // 12,600
• Heating at 47F Maximum Capacity Btu/h: 43,000 // 39,000 // 35,000
• Heating at 47F Rated Capacity Btu/h: 36,000 // 35,200 // 34,400
• Heating at 47F Minimum Capacity Btu/h: 12,800 // 12,800 // 12,800
• Heating at 17F: Maximum Capacity Btu/h: 26,600 // 26,600 // 26,600
• Heating at 5F: Maximum Capacity Btu/h: 24,000 // 21,200 // 18,400
• SEER2: 19.20 // 17.70 // 16.20
• EER2: 12 // 10.40 // 8.80
• HSPF2: 9.30 // 8.80 // 8.30
• Heating Minimum Temp: -4 F
• Cooling Minimum Temp: 10 F
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 35400 Btu/hr
• Cooling CFM Rating: 2306 cfm
• Cooling Operating Temperature: 14 to 115 deg F
• Cooling Sound Level: 58 dBA
• Drive Type: Inverter
• EER Rating: 12
• Finish: Munsell 3Y 7.8/1.1
• Frequency Rating: 60 Hz
• HSPF Rating: 9.3
• Heating BTU Rating: 28600 Btu/hr
• Heating CFM Rating: 2306 cfm
• Heating Operating Temperature: 6 to 75 deg F
• Heating Sound Level: 58 dBA
• Liquid Line Size: 1/4 in
• Phase: 1 ph
• Power Rating: 2950 W Cooling, 3015 W Heating
• Suction Line Size: 1/2 in, 3/8 in
