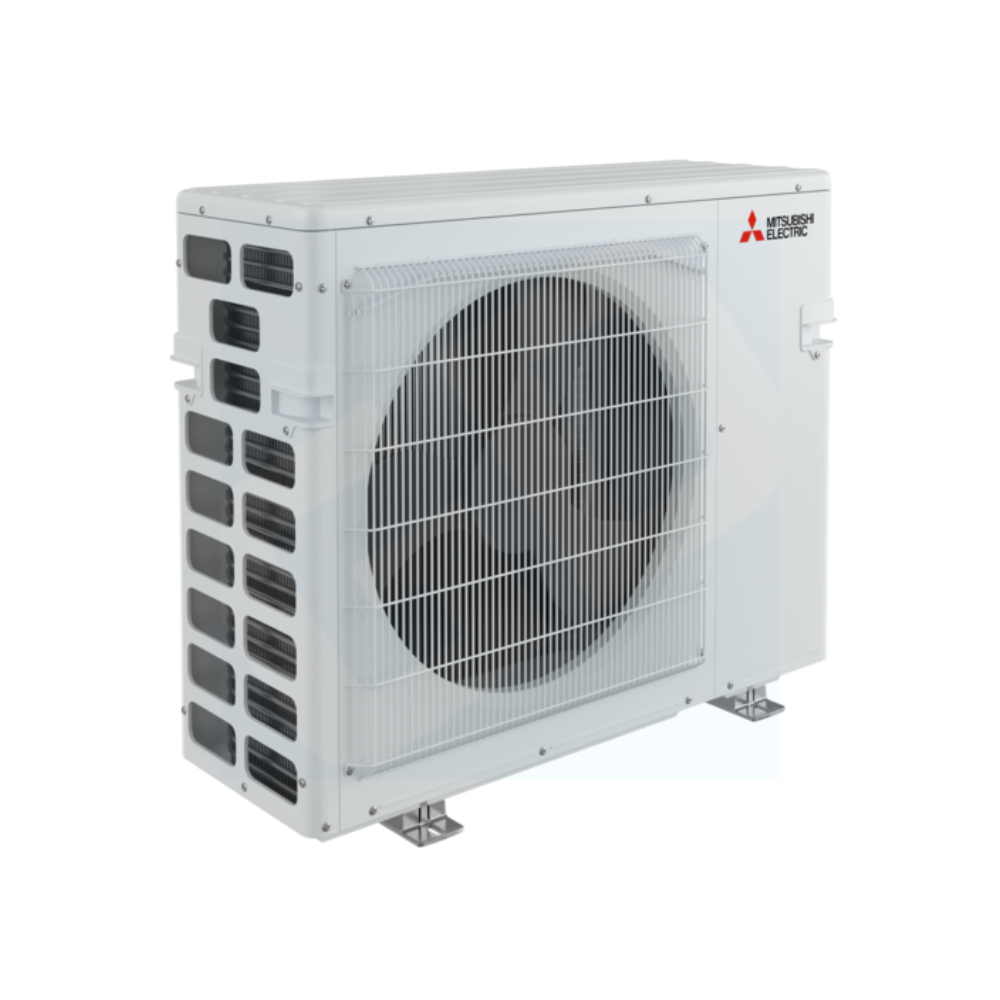

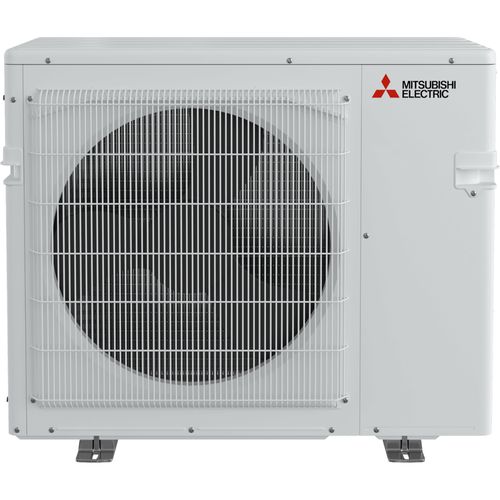

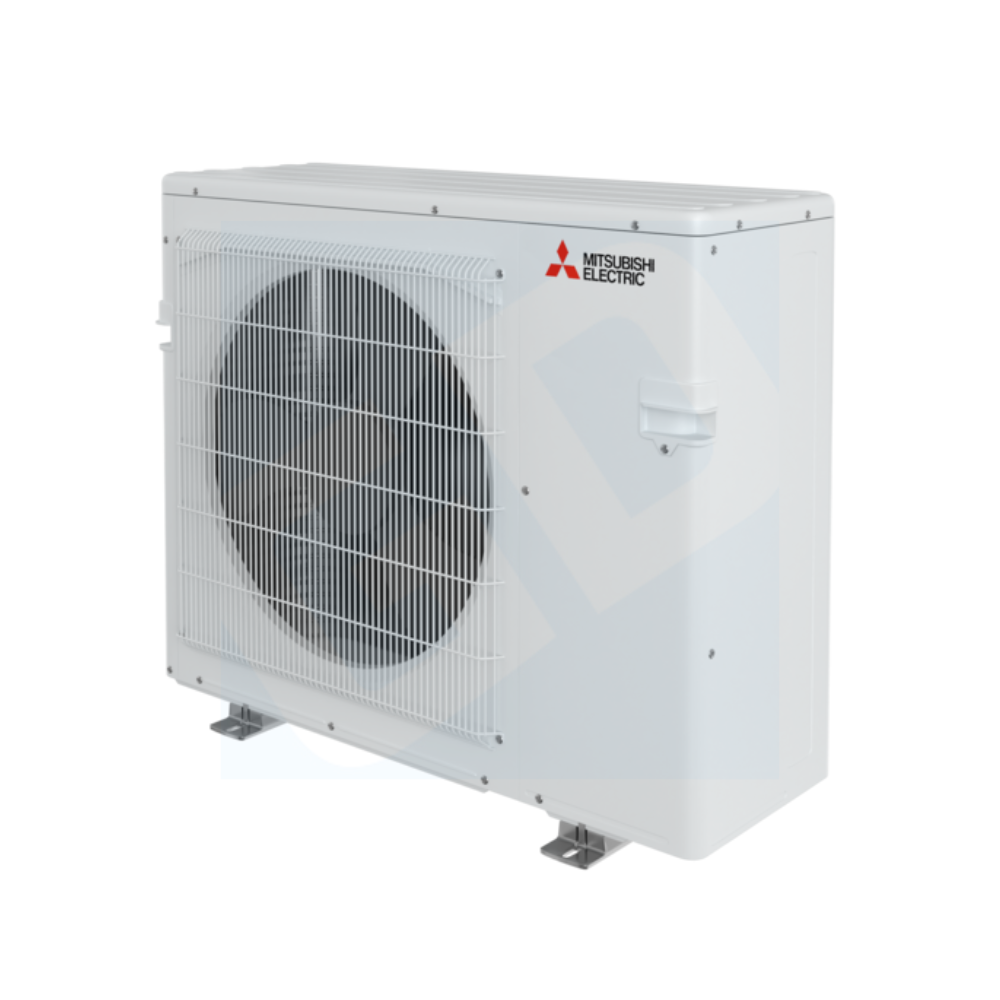

Mitsubishi Electric MXZ-4D30NL-U1 3-port 30,000 btu multi-zone condenser r-454b

Product Description

The Mitsubishi Electric MXZ-4D30NL-U1 is a 3-Port 30,000 Btu Multi-Zone Condenser using R-454B refrigerant. This efficient unit connects to multiple indoor units, handling up to four zones. It features a variable speed INVERTER-driven compressor and Blue Fin anti-corrosion treatment for increased coil protection and longer life. It is a direct replacement for MXZ-3C30NA*.

• Compact, small chassis
• Compressor overcurrent detection
• Compressor thermal protection
• Freeze-prevention base pan heater equipped as standard

Product Highlights

Efficient multi-zone condenser with anti-corrosion treatment and quiet operation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-4D30NL-U1

Technical Specifications

• Number of Zones: 3
• Energy Star Rated: No
• Refrigerant Type: R454B
• Heating Capacity (BTU): 28600
• Product Type: Outdoor Unit
• Application: Heating Cooling
• Voltage: 208/230V
• Cooling Capacity (BTU): 30000
• Unit Type: 2.5-Ton Inverter Condenser Heat Pump
• Product Line: M-Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: NO
• Unit Capacity: 30,000 BTU
• Liquid Pipe Size O.D. [Flared]: 1/4 inch / 1/4 inch / 1/4 inch / 1/4 inch
• Gas Pipe Size O.D. [Flared]: 1/2 inch / 3/8 inch / 3/8 inch / 3/8 inch
• Outdoor Unit: MXZ-4D30NL
• Cooling at 95F: Maximum Capacity Btu/h: 28,600 // 28,500 // 28,400
• Cooling at 95F: Rated Capacity Btu/h: 28,600 // 28,000 // 27,400
• Cooling at 95F: Minimum Capacity Btu/h: 11,600 // 11,300 // 11,000
• Heating at 47F: Maximum Capacity Btu/h: 36,000 // 36,000 // 36,000
• Heating at 47F: Rated Capacity Btu/h: 28,600 // 28,000 // 27,600
• Heating at 47F: Minimum Capacity Btu/h: 13,600 // 13,200 // 12,800
• Heating at 17F: Maximum Capacity Btu/h: 21,000 // 21,000 // 21,000
• Heating at 5F: Maximum Capacity Btu/h: 21,000 // 21,000 // 21,000
• SEER2: 21 // 18.55 // 16.10
• EER2: 13 // 11.30 // 9.60
• HSPF2: 10 // 9.40 // 8.80
• Heating Minimum Temp: -4/ 5 F
• Cooling Minimum Temp: 10/ 14 F
• MPN: MXZ-4D30NL-U1
• Amperage Rating: 28.7 A
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 28600 Btu/hr
• Cooling CFM Rating: 2119 cfm
• Cooling Operating Temperature: 14 to 115 deg F
• Cooling Sound Level: 53 dBA
• EER Rating: 13
• Frequency Rating: 60 Hz
• Fuse Rating: 48 A
• HSPF Rating: 10
• Heating BTU Rating: 36000 Btu/hr
• Heating CFM Rating: 2228 cfm
• Heating Operating Temperature: 65 to 75 deg F
• Heating Sound Level: 56 dBA
• Liquid Line Size: 1/4 in
• Phase: 1 ph
• Power Rating: 4040 W Cooling, 3700 W Heating
• SEER Rating: 21
• Suction Line Size: 1/2 in, 3/8 in
• Voltage Rating: 208/230 V
