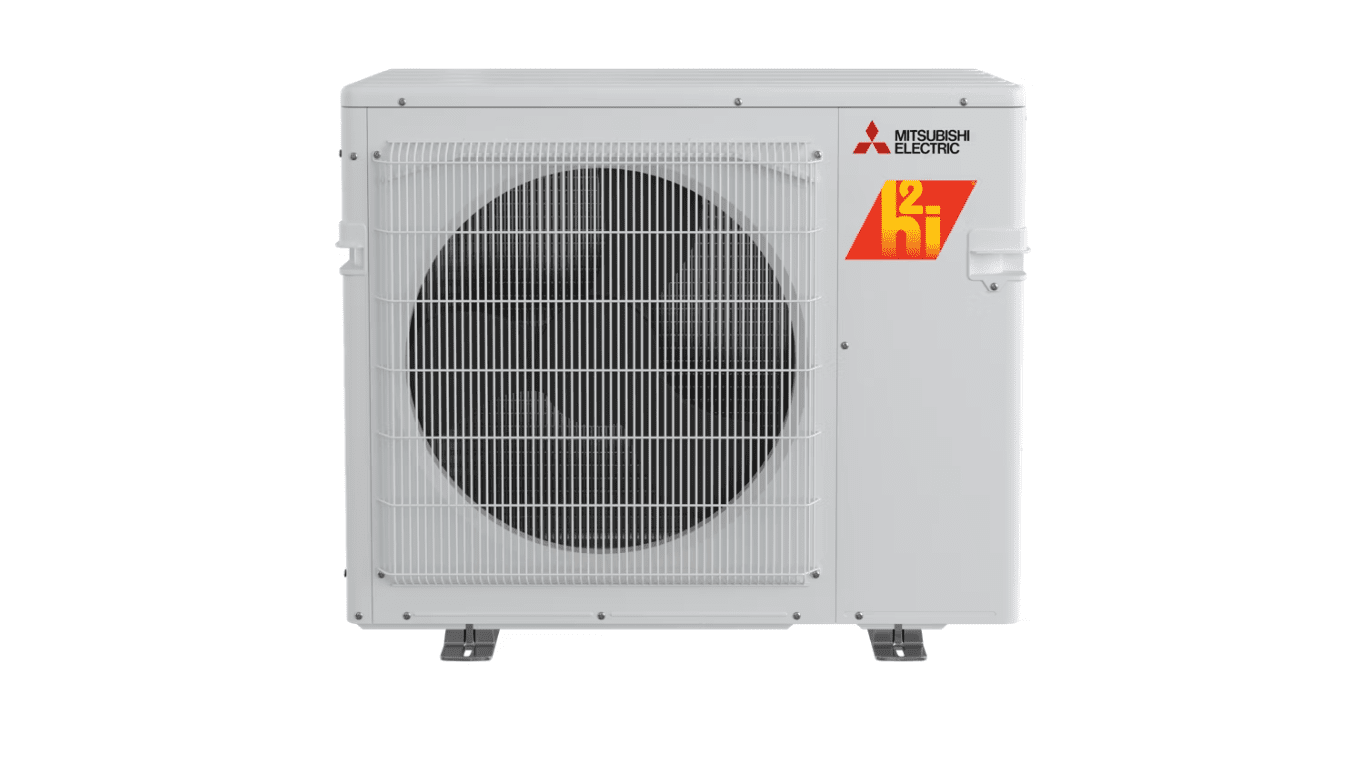

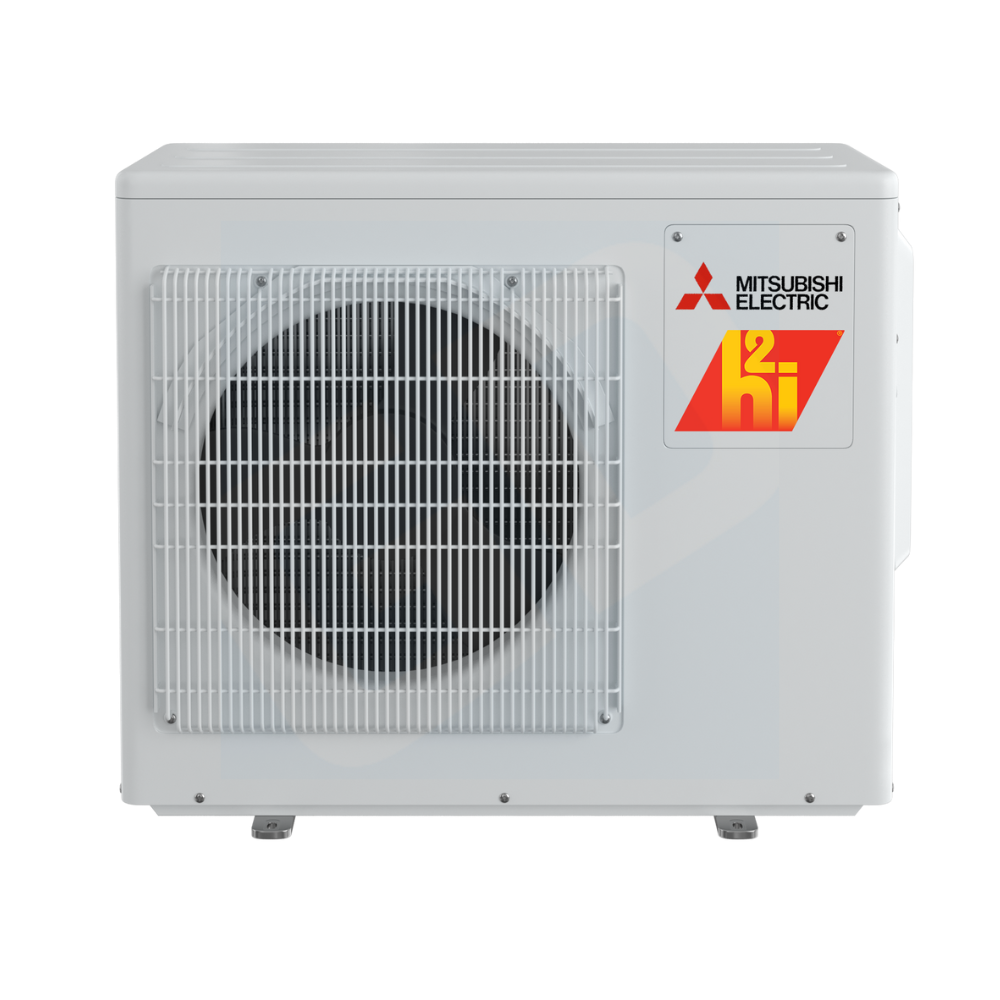

Mitsubishi Electric MXZ-3D30NLHZ-U1 30,000 BTU Heat Pump Unit

Product Description

The Mitsubishi Electric MXZ-3D30NLHZ-U1 is a 30,000 BTU multi-zone hyper heat outdoor heat pump. This efficient unit connects to various indoor unit types and handles three zones. It uses R454B refrigerant and replaces the MXZ-3C30NAHZ.

• Seacoast protection on heat exchanger and base panel.
• Quiet operation with whisper-quiet outdoor units.
• INVERTER-driven compressor generates precise capacity.

Product Highlights

This unit offers hyper-heating performance with 100% heating capacity at 5°F and 75% at -13°F. It features high-pressure, fan motor, and compressor protection, and a built-in base pan heater.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-3D30NLHZ-U1

Technical Specifications

• Unit Type: 2.5-Ton Inverter Condenser Heat Pump
• Product Line: M-Series Hyper Heat
• Operating Mode: Cooling & Heating
• Low Ambient Heat: YES
• Number of Zones: 3
• Unit Capacity: 30,000 BTU
• Refrigerant Type: 454B
• Outdoor Unit: MXZ-3D30NLHZ*
• Cooling at 95F: Maximum Capacity Btu/h: 30,000 // 28,700 // 27,400
• Cooling at 95F: Rated Capacity Btu/h: 28,400 // 27,800 // 27,400
• Cooling at 95F: Minimum Capacity Btu/h: 11,600 // 11,600 // 11,600
• Heating at 47F: Maximum Capacity Btu/h: 36,000 // 35,500 // 35,000
• Heating at 47F: Rated Capacity Btu/h: 28,600 // 28,000 // 27,600
• Heating at 47F: Minimum Capacity Btu/h: 12,800 // 12,800 // 12,800
• Heating at 17F: Maximum Capacity Btu/h: 28,600 // 28,100 // 27,600
• Heating at -13F: Maximum Capacity Btu/h: 22,400 // 22,100 // 21,800
• SEER2: 20 // 18 // 16
• EER2: 11.50 // 10.90 // 10.30
• HSPF2: 10 // 9 // 8
• Heating Minimum Temp: -22/-14 F
• Cooling Minimum Temp: 10/ 14 F
• Refrigerant: R-454B
• Suction Line: 3/8"
• Liquid Line: 1/4"
• Nominal Tons: 2.5 Ton
