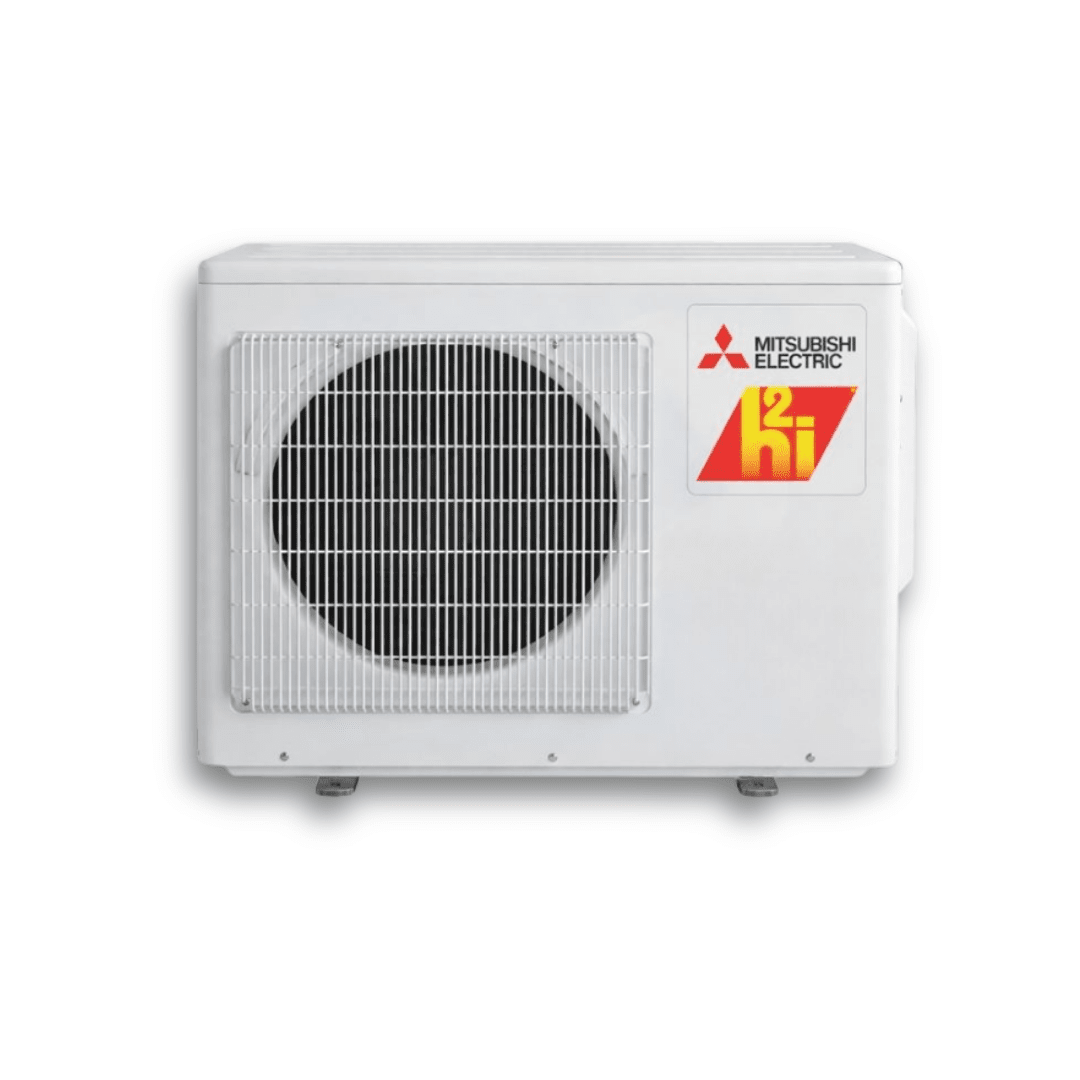

Mitsubishi Electric MXZ-3D30NLHZ 30,000 BTU Hyper-Heating H2i 3-Zone Heat Pump Unit R454B

Product Description

The Mitsubishi Electric MXZ-3D30NLHZ is a 30,000 BTU multi-zone hyper heat outdoor heat pump that can connect to a variety of indoor unit types and handle three zones. This unit features seacoast protection and quiet operation. It uses R454B refrigerant and is a direct replacement for MXZ-3C30NAHZ.

• INVERTER-driven compressor
• Hyper-Heating INVERTER®: 100% heating capacity at 5°F and 75% heating capacity at -13°F
• Compatible with M- and P-Series and CITY MULTI® indoor units

Product Highlights

This multi-zone heat pump provides efficient heating and cooling for up to three zones, with low ambient heating capabilities and eco-friendly R454B refrigerant.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-3D30NLHZ

Technical Specifications

• Unit Type: 2.5-Ton Inverter Condenser Heat Pump
• Product Line: M-Series Hyper Heat
• Operating Mode: Cooling & Heating
• Low Ambient Heat: YES
• Number of Zones: 3
• Unit Capacity: 30,000 BTU
• Refrigerant Type: R454B
• Outdoor Unit: MXZ-3D30NLHZ*
• Cooling at 95F: Maximum Capacity Btu/h: 30,000 // 28,700 // 27,400
• Cooling at 95F: Rated Capacity Btu/h: 28,400 // 27,800 // 27,400
• Cooling at 95F: Minimum Capacity Btu/h: 11,600 // 11,600 // 11,600
• Heating at 47F: Maximum Capacity Btu/h: 36,000 // 35,500 // 35,000
• Heating at 47F: Rated Capacity Btu/h: 28,600 // 28,000 // 27,600
• Heating at 47F: Minimum Capacity Btu/h: 12,800 // 12,800 // 12,800
• Heating at 17F: Maximum Capacity Btu/h: 28,600 // 28,100 // 27,600
• Heating at -13F: Maximum Capacity Btu/h: 22,400 // 22,100 // 21,800
• SEER2: 20 // 18 // 16
• EER2: 11.50 // 10.90 // 10.30
• HSPF2: 10 // 9 // 8
• Heating Minimum Temp: -22/-14 F
• Cooling Minimum Temp: 10/ 14 F
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 28400 Btu/hr
• Cooling CFM Rating: 2239 cfm
• Cooling Operating Temperature: 14 to 115 deg F
• Cooling Sound Level: 56 dBA
• Drive Type: Inverter
• EER Rating: 11.5
• Finish: Munsell 3Y 7.8/1.1
• Frequency Rating: 60 Hz
• HSPF Rating: 10
• Heating BTU Rating: 28600 Btu/hr
• Heating CFM Rating: 2378 cfm
• Heating Operating Temperature: -12 to 75 deg F
• Heating Sound Level: 58 dBA
• Liquid Line Size: 1/4 in
• Model: MXZ
• Phase: 1 ph
• Power Rating: 2470 W Cooling, 2395 W Heating
• Suction Line Size: 1/2 in, 3/8 in
• Voltage Rating: 208/230 V
• Brand: Mitsubishi
• Model #: MXZ-3D30NLHZ
• Series: Hyper Heat
• Zone/Rooms: ["3"]
