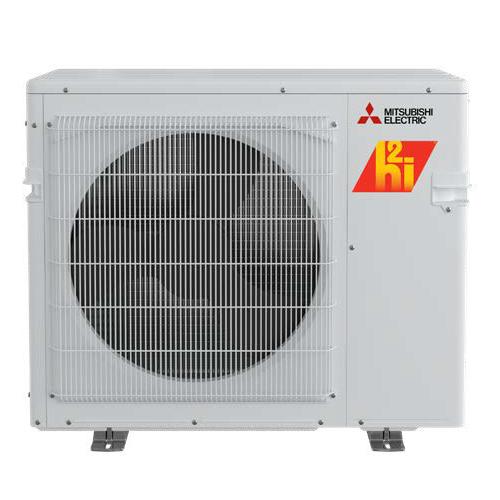

Mitsubishi Electric mxz-3d24nlhz-u1 Multi Zone 22000 Btu/h

Product Description

The MITSUBISHI ELECTRIC mxz-3d24nlhz-u1 is a multi-zone Hyper-Heating INVERTER outdoor condensing unit rated at 22,000 BTU/h and designed for use with R454B refrigerant. The inverter-driven compressor modulates output continuously to match the precise heating or cooling load, reducing energy cycling and maintaining tighter temperature control within 1 degree F of the set point. Seacoast-rated corrosion protection on the heat exchanger and base panel meets ASTM B117 testing standards at 2,000 hours, making this unit suitable for installations near salt-air environments. Licensed HVAC technicians handle installation and commissioning.

This outdoor unit is built for residential and light-commercial multi-zone split system applications where variable-capacity performance is required across multiple indoor air handlers. The Hyper-Heating INVERTER technology delivers 100% heating capacity at 5 degrees F ambient and maintains 75% heating capacity at -13 degrees F ambient, extending reliable operation through severe winter conditions. A built-in base pan heater prevents ice accumulation at the drain, and the unit operates at sound levels comparable to a typical conversation, supporting installs in noise-sensitive locations.

Key Features

• Hyper-Heating INVERTER: 100% heating capacity at 5 degrees F, 75% at -13 degrees F
• Inverter-driven compressor modulates capacity for precise 1 degree F thermal differential control
• Seacoast protection on heat exchanger and base panel, rated 2,000 hours per ASTM B117
• Built-in base pan heater prevents drain ice buildup in low-ambient operation
• Integrated compressor protections: thermal protection, overcurrent detection, and high-pressure cutout
• Fan motor overheating and voltage protection for extended component life
• Quiet outdoor operation suitable for noise-sensitive residential and commercial sites

Compatibility

Designed as an OEM multi-zone outdoor unit for use with compatible Mitsubishi Electric mini-split indoor air handlers in a zoned system configuration; consult the product submittal sheet for approved indoor unit pairings.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician familiar with R454B refrigerant handling procedures. Disconnect and lock out all electrical power to the system before making any wiring or refrigerant connections. Follow all applicable local mechanical and electrical codes, including NEC requirements for disconnect placement and circuit sizing. Do not operate the unit below the published minimum ambient temperature limits without verifying that low-ambient controls are active.

Technical Specifications

• Cooling and Heating Capacity: 22,000 BTU/h
• Refrigerant: R454B
• Compressor Type: Inverter-driven
• Thermal Differential: 1 degree F
• Heating Capacity at 5 degrees F Ambient: 100%
• Heating Capacity at -13 degrees F Ambient: 75%
• Corrosion Protection Rating: 2,000 hours per ASTM B117
• System Type: Multi-zone

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: mxz-3d24nlhz-u1
