Mitsubishi Electric MXZ-3D24NLHZ Multi-Zone Heat Pump 24,000 BTU replacement MXZ-3C24NAHZ4-U1

Product Description

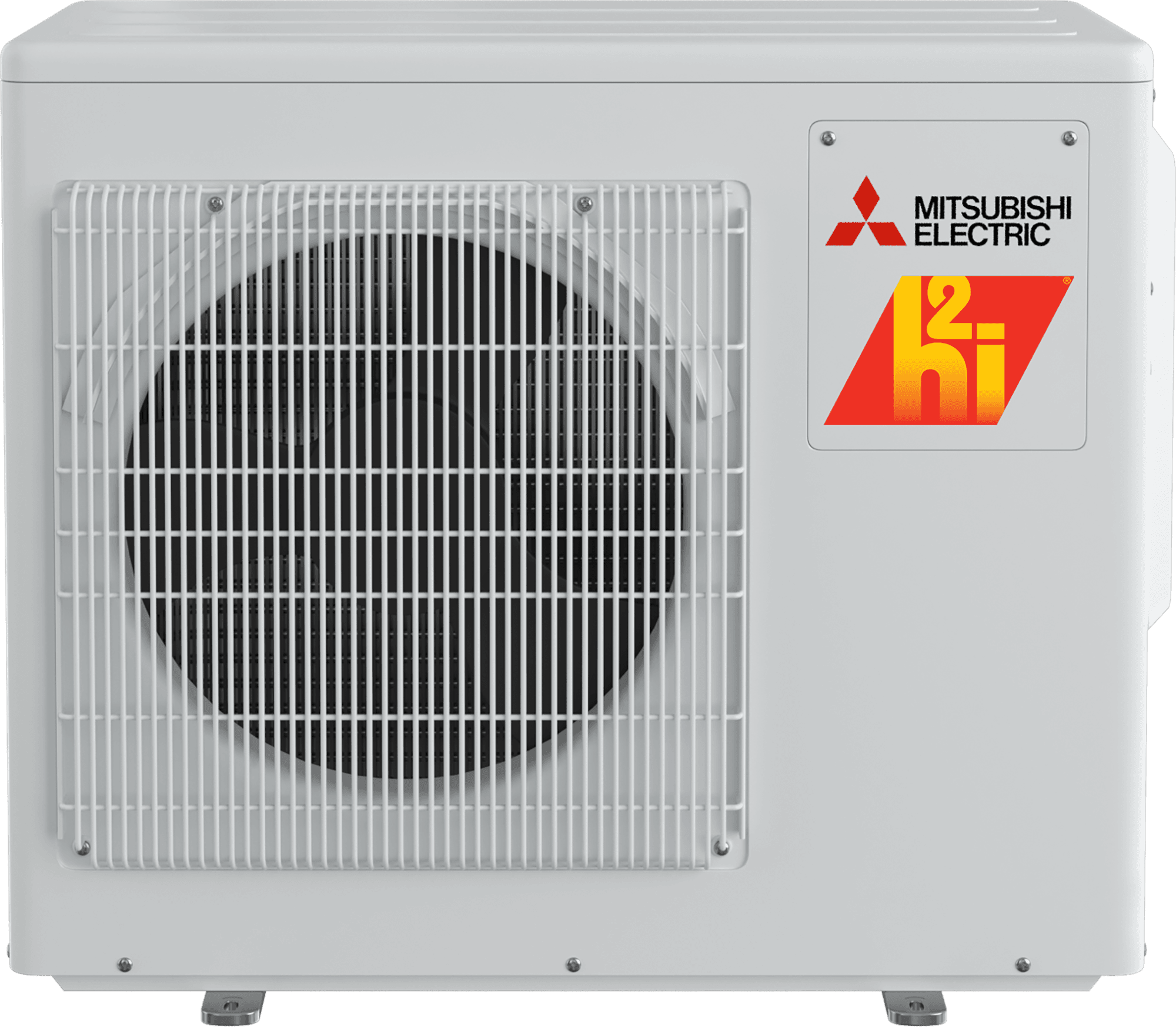

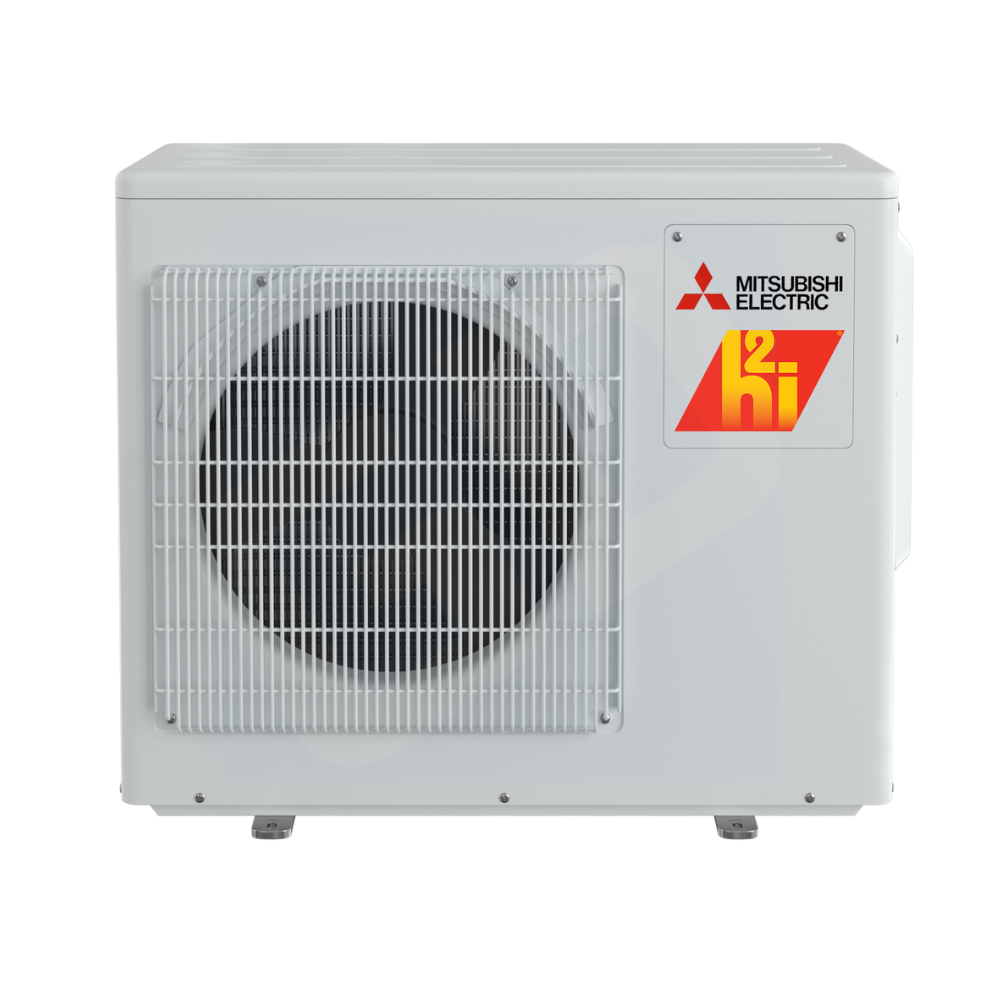

The MITSUBISHI ELECTRIC MXZ-3D24NLHZ is a high-performance outdoor heat pump unit designed for residential and light commercial applications. Equipped with Hyper-Heating INVERTER technology, it delivers reliable heating even in extremely cold climates. Compatible with M-Series, P-Series, and CITY MULTI indoor units, it offers versatile solutions for various building layouts. This unit uses R454B refrigerant and can handle three zones.

• Operates at sound pressure levels of 56 dB(A) in cooling mode and 58 dB(A) in heating mode.
• Features seacoast protection on the heat exchanger and base panel, rated for 2,000 hours in accordance with ASTM B117 testing.
• Provides 100% heating capacity at 5�F and maintains operation down to -13�F.

Product Highlights

Ideal for applications requiring efficient heating and cooling performance, ensuring reliable operation and enhanced comfort throughout the year.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-3D24NLHZ

Technical Specifications

• Manufacturer: Mitsubishi Electric Corporation
• Manufacturer Name: Mitsubishi
• Model: MXZ-D-NLHZ
• Series: M-Series
• Type: Heat pump
• Unit Type: 2-Ton Inverter Condenser Heat Pump
• Product Line: M-Series Hyper Heat
• Product Category: Mini Split Heat Pump System
• Operating Mode: Cooling & Heating
• Number of Zones: 3
• Unit Capacity: 24,000 BTU
• Refrigerant Type: R-454B
• Refrigerant: R-454B
• Outdoor Unit: MXZ-3D24NLHZ
• Cooling Capacity at 95F: Maximum Capacity Btu/h: 23,600 // 23,600 // 23,600 (Non-Ducted // Mixed // Ducted)
• Cooling Capacity at 95F: Rated Capacity Btu/h: 22,000 // 22,800 // 23,600 (Non-Ducted // Mixed // Ducted)
• Cooling Capacity at 95F: Minimum Capacity Btu/h: 11,600 // 11,600 // 11,600 (Non-Ducted // Mixed // Ducted)
• Heating Capacity at 47F: Maximum Capacity Btu/h: 30,600 // 30,600 // 30,600 (Non-Ducted // Mixed // Ducted)
• Heating Capacity at 47F: Rated Capacity Btu/h: 25,000 // 24,800 // 24,600 (Non-Ducted // Mixed // Ducted)
• Heating Capacity at 47F: Minimum Capacity Btu/h: 12,800 // 12,800 // 12,800 (Non-Ducted // Mixed // Ducted)
• Heating Capacity at 17F: Maximum Capacity Btu/h: 25,000 // 24,800 // 24,600 (Non-Ducted // Mixed // Ducted)
• Heating Capacity at 17F: Rated Capacity Btu/h: 15,400 // 15,400 // 15,400 (Non-Ducted // Mixed // Ducted)
• Heating Capacity at 17F: Maximum Power Input W: 3,627 // 3,711 // 3,795 (Non-Ducted // Mixed // Ducted)
• Heating Capacity at -13F: Maximum Capacity Btu/h: 20,400 // 20,200 // 20,000 (Non-Ducted // Mixed // Ducted)
• SEER2: 20
• EER2: 13
• HSPF2: 10
• Heating Minimum Temp: -22 F
• Cooling Minimum Temp: 10 F
• Thermal Differential: 1�F
• Low Ambient Heat: YES
• Voltage: 208/230 V
• Guaranteed Voltage Range: 198 - 253 V AC
• Amperage: 1.74 A
• Cooling Wattage: 1693 W
• Heating Wattage: 2094 W
• Frequency: 60 Hz
• Phase: 1 ph
• Connection: Flared
• Compressor: Twin Rotary
• Drive: Inverter Drive
• Zone: 3-Zone
• Heating CFM Rating: 2378 cfm
• Cooling CFM Rating: 2239 cfm
• Heating Sound Level: 58 dBA
• Cooling Sound Level: 56 dBA
• Finish: Munsell 3Y 7.8/1.1
• Heating Operating Temperature: -12 to 75 deg F
• Cooling Operating Temperature: 14 to 115 deg F
• Overall Length: 13 in
• Width: 37.46"
• Height: 31.43"
• Decibel Level (dBA): 58
• Replaces: MXZ-3C24NAHZ4-U1
• Electrical: 208/230V 1 Phase 60 Hz
• BTU/Tonnage: 24,000 BTU/2 Ton
• Cooling BTU: 23600
• Heating BTU: 30600
• Compressor Type: Twin Rotary
• Max Breaker Size: 49
• Min. Breaker Size: 29
• Liquid Valve Size: 1/4" (3)
• Suction Valve Size: 3/8" (2); 1/2" (1)
• Zone Compatibility: Multi Zone
• Capacity range: 20,000 to 30,000 BTU/H
• Sound level: As low as 51 dB(A)
• ENERGY STAR: Yes
• DOE Regional Compliance: Nationwide
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 14 F
• AHRI Certified: Yes
• AHRI Reference Number: 216505933
• Maximum Number of Zones: 3
• Multi-Zone Compatible: Yes
• Installation Location: Outdoor
• Cooling Capacity: 22000 BTU
• Heating Capacity: 25000 BTU
• Maximum Sound Level: 58 dB
• Minimum Circuit Ampacity: 29 Amps
• Recommended Breaker Size: 49 Amps
• Maximum Line Length: 230 Feet
• Line Set A Liquid Connection: 1/4 Inch
• Line Set A Gas Connection: 1/2 Inch
• Line Set B Liquid Connection: 1/4 Inch
• Line Set B Gas Connection: 3/8 Inch
• Line Set C Liquid Connection: 1/4 Inch
• Line Set C Gas Connection: 3/8 Inch
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Indoor Unit Type: Wall Mounted
• Indoor Unit Product Line: M-Series
• Indoor Unit Size: 12
• Moisture Removal: 1.3 Pints/Hour
• Maximum Air Flow: 526 CFM
• Minimum Air Flow: 168 CFM
• Minimum Sound Level: 20 dB
• Maximum Sound Level Indoor Unit: 44 dB
• Connection Type: Flared
• End 1 Connection Size: 1/2 Inch
• End 2 Connection Size: 3/8 Inch
