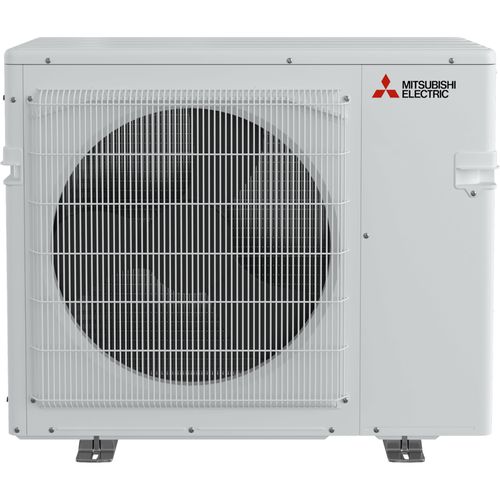

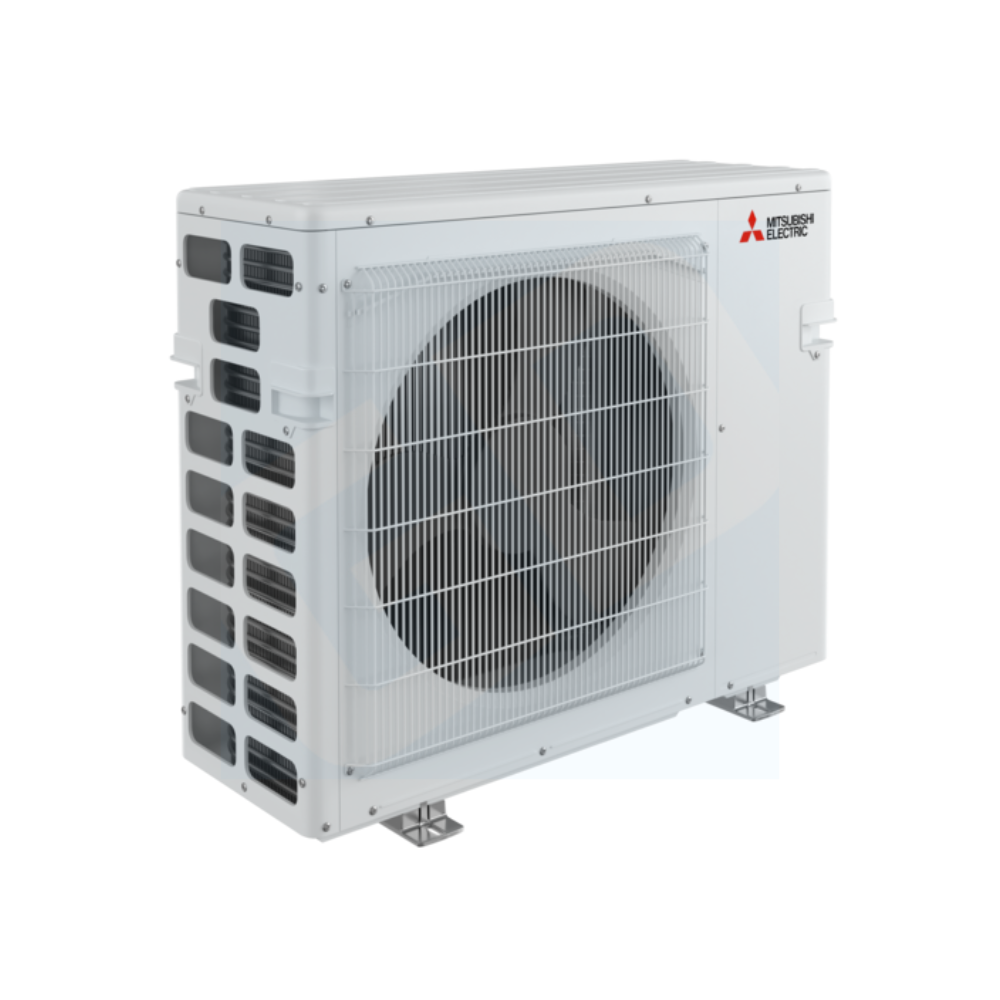

Mitsubishi Electric MXZ-3D24NL-U1 Ductless Mini Split Heat Pump System - 2-Zone - 24k BTU Outdoor - 12 + 12 Indoor - 20.0 SEER2 - R-454B

MITSUBISHI ELECTRIC
Brand: MITSUBISHI ELECTRIC
SKU: MXZ-3D24NL-U1
Availability: In Stock

Ships via freight in 1-3 business days
$3,539.25
$3,539.25
LTL Delivery

This product weighs 137 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mitsubishi Electric MXZ-3D24NL-U1 ductless mini split heat pump system offers ideal comfort with Mitsubishi's multiroom system. Each room operates independently, allowing personalized temperature settings. It features built-in Wi-Fi for control via smart devices and precision temperature control technology for improved accuracy and efficiency. The system uses R-454B refrigerant.

  • Built-In Wi-Fi
  • Precision Temperature Control Technology
  • Advanced Filtration System
  • Dual Barrier Coating
  • 3D i-see Sensor

Product Highlights

This multi-zone system is flexible, energy-efficient, and suitable for supplementing existing systems or conditioning new spaces.

Product Information

Standard Information

  • Brand: MITSUBISHI ELECTRIC
  • Manufacturer Part Number: MXZ-3D24NL-U1
Technical Specifications
Condition
New
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split Heat Pump System
Operating Mode
Heating and Cooling
Number of Zones
3
Refrigerant Type
454B
Indoor Unit Size(s)
12 + 12
Outdoor Unit Size
24000 BTU
DOE Regional Compliance
Nationwide
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
5 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2
20.0
EER2
13.7
HSPF2
10.0
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
216505924
Outdoor Condenser Type
Outdoor Condenser
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Installation Location
Outdoor
Base Pan Heater Included
No
Cooling BTU
24000
Cooling Capacity
22000 BTU
Heating Capacity
25000 BTU
Maximum Sound Level
55 dB
Minimum Circuit Ampacity
28.7 Amps
Recommended Breaker Size
48 Amps
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
1/2 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Product Height
31 17/48 Inches
Product Width
37 17/48 Inches
Product Depth
13 Inches
ETL Listed
Yes
Wall Mounted Type
Wall Mounted
Remote Control
Wireless
Indoor Unit Size
12
Installation Location Indoor
Indoor
Cooling BTU Indoor
12000
Cooling Capacity Indoor
12000 BTU
Heating Capacity Indoor
13200 BTU
Moisture Removal
1.3 Pints/Hour
Maximum Air Flow
526 CFM
Minimum Air Flow
168 CFM
Minimum Sound Level
20 dB
Maximum Sound Level Indoor
44 dB
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height Indoor
12 Inches
Product Width Indoor
39 13/48 Inches
Product Depth Indoor
9 3/4 Inches
Application
Cooling, Heating
Energy Star Rated
Yes
Heating Capacity (BTU)
25000
Product Type
Outdoor Unit
Cooling Capacity (BTU)
24000
Unit Type
2-Ton Inverter Condenser Heat Pump
Unit Capacity
24,000 BTU
Outdoor Unit
MXZ-3D24NL
Nominal Expected Cooling Capacity at 95F - Non-Ducted/Mixed/Ducted
22000 Btu/h / 22800 Btu/h / 23600 Btu/h
Nominal Expected Heating Capacity at 47F - Non-Ducted/Mixed/Ducted
25000 Btu/h / 25200 Btu/h / 25400 Btu/h
Maximum Expected Heating Capacity at 5F - Non-Ducted/Mixed/Ducted
19800 Btu/h / 19800 Btu/h / 19800 Btu/h
Heating Minimum Temp
5 F
Cooling Minimum Temp
14 F
Brand Name
Mitsubishi Electric
MPN
MXZ-3D24NL-U1
