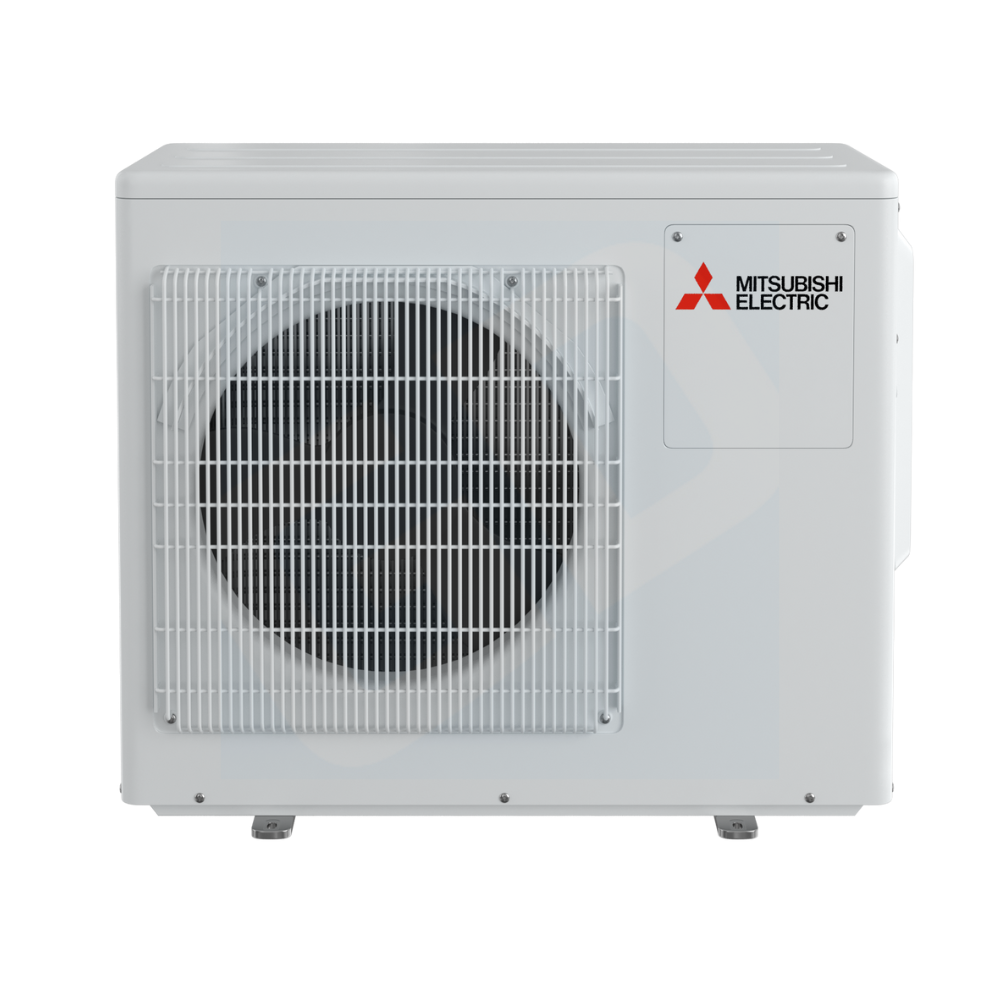

MITSUBISHI ELECTRIC Mitsubishi Electric MXZ-3D24NL 24k BTU (2.0 Ton) M-Series Outdoor Condenser up to 3 Zones

Mitsubishi Electric MXZ-3D24NL 24k BTU (2.0 Ton) M-Series Outdoor Condenser up to 3 Zones

Name: Mitsubishi Electric MXZ-3D24NL 24k BTU (2.0 Ton) M-Series Outdoor Condenser up to 3 Zones
Brand: MITSUBISHI ELECTRIC
SKU: MXZ-3D24NL
Price: 3187.25 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Brand: MITSUBISHI ELECTRIC

SKU: MXZ-3D24NL

5.0

Rated 5.0 out of 5 stars

1 Review

Availability: In Stock

Ships via freight in 1-3 business days

Quantity:

$3,187.25; $3,187.25
Unit price: per

LTL Delivery

This product weighs 124 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

The Mitsubishi Electric MXZ-3D24NL is a 24,000 BTU outdoor heat pump designed for multi-zone applications. This unit supports multiple indoor connections, allowing for efficient temperature control in up to three zones. It operates in both cooling and heating modes and employs R454B refrigerant for environmental safety.

Connects to various indoor unit types.
Operates in cooling and heating modes.
Designed for three-zone capabilities.

Product Highlights

This heat pump offers a twin rotary compressor for enhanced efficiency, along with Blue Fin anti-corrosion treatment for better coil protection. Its variable speed inverter-driven compressor ensures smooth operation throughout various temperature conditions.

Product Information

Standard Information

Unit Type: 2-Ton Inverter Condenser Heat Pump
Product Line: M-Series

Technical Specifications

Operating Mode

Cooling & Heating

Number of Zones

Unit Capacity

24,000 BTU

Refrigerant Type

R-454B

Cooling Capacity

22,000 BTU/hr

Heating Capacity

30,600 BTU/hr

SEER Rating

EER Rating

13.7

HSPF Rating

Cooling Minimum Temperature

14 F

Heating Minimum Temperature

5 F

Amperage Rating

28.7 A

Color

Ivory

Compressor Type

Twin Rotary

Cooling Sound Level

51 dBA

Heating Sound Level

55 dBA

Liquid Line Size

1/4 in

Overall Height

31-11/32 in

Overall Length

13 in

Overall Width

37-11/32 in

Voltage Rating

208/230 V
