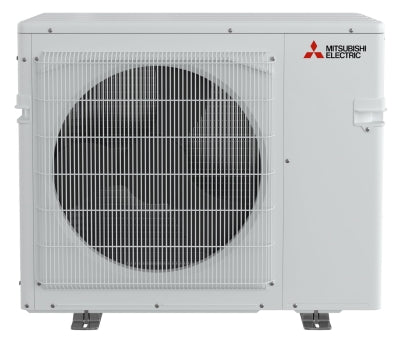

Mitsubishi Electric MXZ-3C30NA3-U1 Outdoor Multi-Zone Heat Pump, 2.5 Ton, 30K BTU, 16.2 SEER

Mitsubishi MXZ-3C30NA3-U1 - M-Series 3 Zone Outdoor Heat Pump Unit, 30K BTU, R410A, 208-230/1/60

Features:

Variable speed INVERTE
Rdriven compressor
MNET connection optional through the outdoor unit (Part # listed below)
Quiet outdoor unit operation as low as 52 d
B(A)
High-pressure switch for additional protection

Specifications:

Weight: 156.5
Rated Load Amps: 12
Multi-Zone: Yes
Phase: Single
Refrigerant: R-410A
Room Size: 1,000 - 1,650 ft2
SEER: 16.2
Maximum Piping Height: 230'
Product Family: MXZ
High Heat HP: No
Stage: Single
UOM: EA
Suction Line Fitting: Flare
Suction Line Size (OD): 1/2, 3/8
Tier: M Series
Tonnage: 2.5
UL Listed: No
Voltage: 208-230 VAC
Width: 37.2
Length: 41.31
Height: 15.410000
Liquid Line Fitting: Flare
Liquid Line Size (OD): 1/4
Cooling Capacity: 28400
Circuit Breaker - Min Amps: 49
Circuit Breaker - Max Amps: 25
BTU Output: 30000
Brand: Mitsubishi
Cycle/Hertz: 60 Hz
Inverter: Yes
Heating Capacity: 28600
EER: 9.6
Equipment Type: Heat Pump
Energy Star Rated: No
