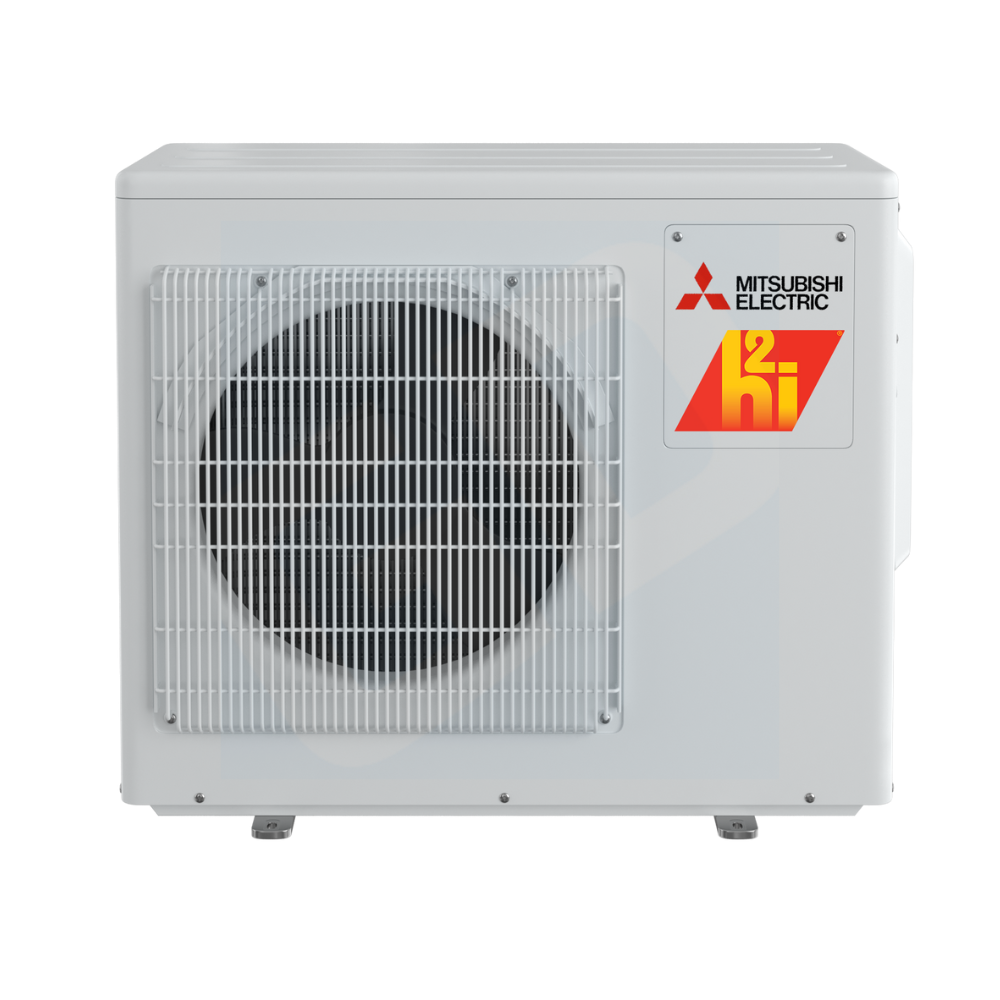

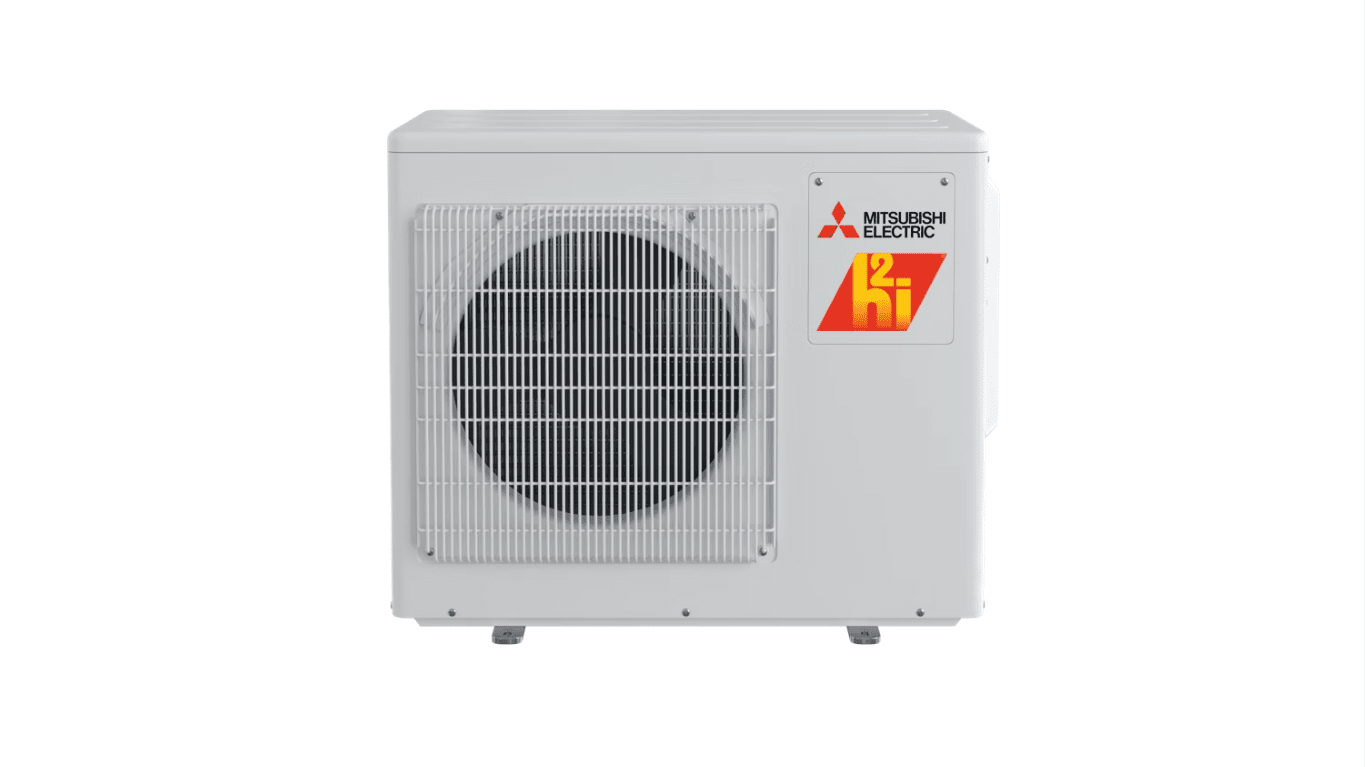

Mitsubishi Electric MXZ-2D20NLHZ-U1 MXZ-2D20NLHZ 20,000 BTU 2-Zone Hyper-Heating H2i® Heat Pump Unit - R454B

Product Description

The Mitsubishi Electric MXZ-2D20NLHZ-U1 is a 20,000 BTU multi-zone hyper heat outdoor heat pump (MXZ-2D20NLHZ). This efficient unit connects to various indoor unit types and handles two zones. It uses R454B refrigerant and replaces MXZ-2C20NAHZ. The unit features seacoast protection on heat exchanger and base panel and operates quietly.

• Whisper quiet operation
• INVERTER-driven compressor
• Hyper-Heating INVERTER®: offers 100% heating capacity at 5°F and 75% heating capacity at -13°F

Product Highlights

Efficient 20,000 BTU multi-zone hyper heat pump with quiet operation and INVERTER-driven compressor. Compatible with M- and P-Series and CITY MULTI® indoor units.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-2D20NLHZ-U1

Technical Specifications

• Unit Type: 1.66-Ton Inverter Condenser Heat Pump
• Product Line: M-Series Hyper Heat
• Operating Mode: Cooling & Heating
• Low Ambient Heat: YES
• Number of Zones: 2
• Unit Capacity: 20,000 BTU
• Refrigerant Type: R454B
• Outdoor Unit: MXZ-2D20NLHZ
• Cooling at 95F: Maximum Capacity Btu/h: 20,000 // 20,000 // 20,000
• Cooling at 95F: Rated Capacity Btu/h: 18,000 // 19,000 // 20,000
• Cooling at 95F: Minimum Capacity Btu/h: 11,600 // 13,800 // 16,000
• Heating at 47F: Maximum Capacity Btu/h: 25,500 // 25,500 // 25,500
• Heating at 47F: Rated Capacity Btu/h: 22,000 // 22,000 // 22,000
• Heating at 47F: Minimum Capacity Btu/h: 11,400 // 13,850 // 16,300
• Heating at 17F: Maximum Capacity Btu/h: 22,000 // 22,000 // 22,000
• Heating at -13F: Maximum Capacity Btu/h: 19,200 // 19,200 // 19,200
• SEER2: 19.30 // 16.80 // 14.30
• EER2: 13.50 // 12.30 // 11.10
• HSPF2: 10 // 8.95 // 7.90
• Heating Minimum Temp: -22 F
• Cooling Minimum Temp: 10 F
• Thermal Differential: 1 00F
• Seacoast protection: None
• Brand Name: Mitsubishi Electric
• MPN: MXZ-2D20NLHZ-U1
• Refrigerant: R-454B
• Heating Capacity: 22,000
• Nominal Tons: 1.5 Ton
• Suction Line: 3/8"
• Liquid Line: 1/4"
