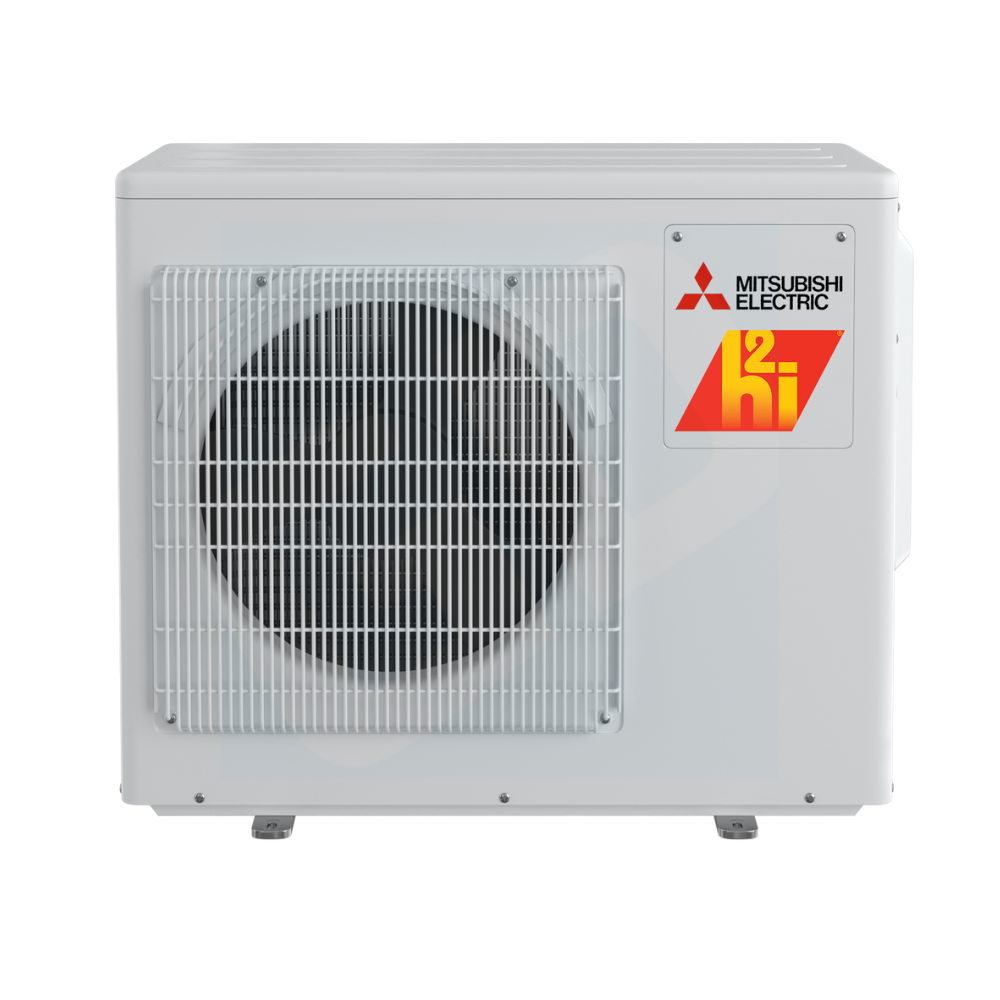

Mitsubishi Electric MXZ-2D20NLHZ H2i Ductless Mini Split Heat Pump System - 2-Zone - 20k BTU Outdoor - 6k + 15k Indoor

Product Description

The Mitsubishi Electric MXZ-2D20NLHZ H2i Ductless Mini Split Heat Pump System allows you to enjoy ideal comfort levels with Mitsubishi's multiroom system. Each zone operates independently, allowing temperature settings that make each room comfortable. This system features H2i technology, which boasts superior heating performance in extreme cold weather climates.

• Built-In Wi-Fi allows control with smart enabled devices via the Comfort app.
• Features precision temperature control technology with inverter technology and an electronic linear expansion valve.
• Advanced Filtration System uses Triple Action Filtration to capture allergens, neutralize odors and improve indoor air quality.

Product Highlights

This multi-zone system is an excellent choice for supplementing capacity to a current system, conditioning newly furnished spaces, or new additions and replacing a system within a home.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-2D20NLHZ

Technical Specifications

• Condition: New
• Type: Wall Mounted
• Product Line: M-Series H2i
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 2
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 6 + 15
• Base Pan Heater Included: Yes
• Outdoor Unit Size: 20000 BTU
• DOE Regional Compliance: Nationwide
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 19.3
• EER2: 13.5
• HSPF2: 10.0
• Voltage: 208/230 Volts
• Phase: 1 ph
• Frequency: 60 Hz
• Energy Star Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 216505925
• Maximum Number of Zones: 2
• Multi-Zone Compatible: Yes
• Installation Location: Outdoor
• Cooling BTU: 20000
• Cooling Capacity: 18000 BTU
• Heating Capacity: 22000 BTU
• Maximum Sound Level: 53 dB
• Minimum Circuit Ampacity: 21.7 Amps
• Recommended Breaker Size: 38 Amps
• Maximum Line Length: 164 Feet
• Line Set A Liquid Connection: 1/4 Inch
• Line Set A Gas Connection: 3/8 Inch
• Line Set B Liquid Connection: 1/4 Inch
• Line Set B Gas Connection: 3/8 Inch
• Product Height: 31 17/48 Inches
• Product Width: 37 17/48 Inches
• Product Depth: 13 Inches
• ETL Listed: Yes
• Remote Control: Wireless
• Moisture Removal: 2.5 Pints/Hour
• Maximum Air Flow: 614 CFM
• Minimum Air Flow: 231 CFM
• Minimum Sound Level: 20 dB
• Maximum Sound Level (15k BTU): 46 dB
• Gas Connection Size (15k BTU): 1/2 Inch
• Liquid Connection Size (15k BTU): 1/4 Inch
• Product Height (15k BTU): 12 Inches
• Product Width (15k BTU): 39 13/48 Inches
• Product Depth (15k BTU): 9 3/4 Inches
• Minimum Sound Level (6k BTU): 20 dB
• Maximum Sound Level (6k BTU): 42 dB
• Gas Connection Size (6k BTU): 3/8 Inch
• Liquid Connection Size (6k BTU): 1/4 Inch
• Product Height (6k BTU): 12 Inches
• Product Width (6k BTU): 39 13/48 Inches
• Product Depth (6k BTU): 9 3/4 Inches
• Connection: Flared Connection
• Compressor: Twin Rotary Compressor
• Refrigerant: R-454B
• Liquid Line: 1/4 in
• Suction Line: 3/8 in
• Fuse Rating: 38 A
• Heating Sound Level: 53 dBA
• Cooling Sound Level: 51 dBA
• Heating Operating Temperature: 65 to 75 deg F
• Cooling Operating Temperature: 14 to 115 deg F
• Overall Length: 13 in
• Overall Width: 37-11/32 in
• Overall Height: 31-11/32 in
• Amperage: 21.7 A
• Power: 88 W
• Heating CFM Rating: 2228 cfm
• Cooling CFM Rating: 2119 cfm
• EER Rating: 13.5
• SEER: 19.3
• HSPF: 10
• Unit Capacity: 20,000 BTU
• Heating at 47F: Rated Capacity Btu/h: 22,000 // 22,000 // 22,000
• Heating at 17F: Maximum Capacity Btu/h: 22,000 // 22,000 // 22,000
• Heating at -13F: Maximum Capacity Btu/h: 19,200 // 19,200 // 19,200
• Heating Minimum Temp: -22 F
• Cooling Minimum Temp: 10 F
• Thermal Differential: 1°F
• Supplier Part #: MXZ-2D20NLHZ
• UPC #: 192890003282
