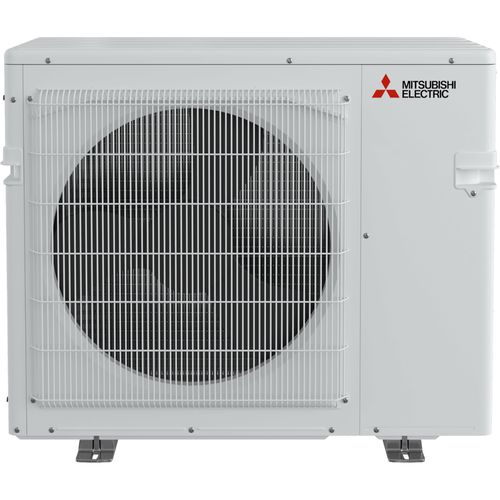

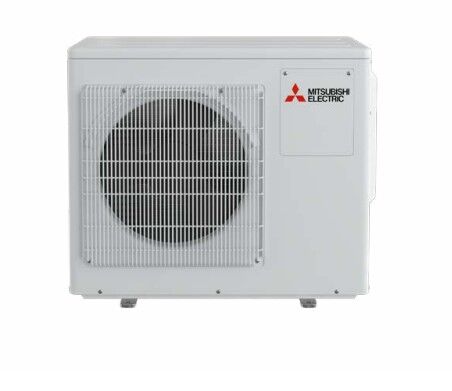

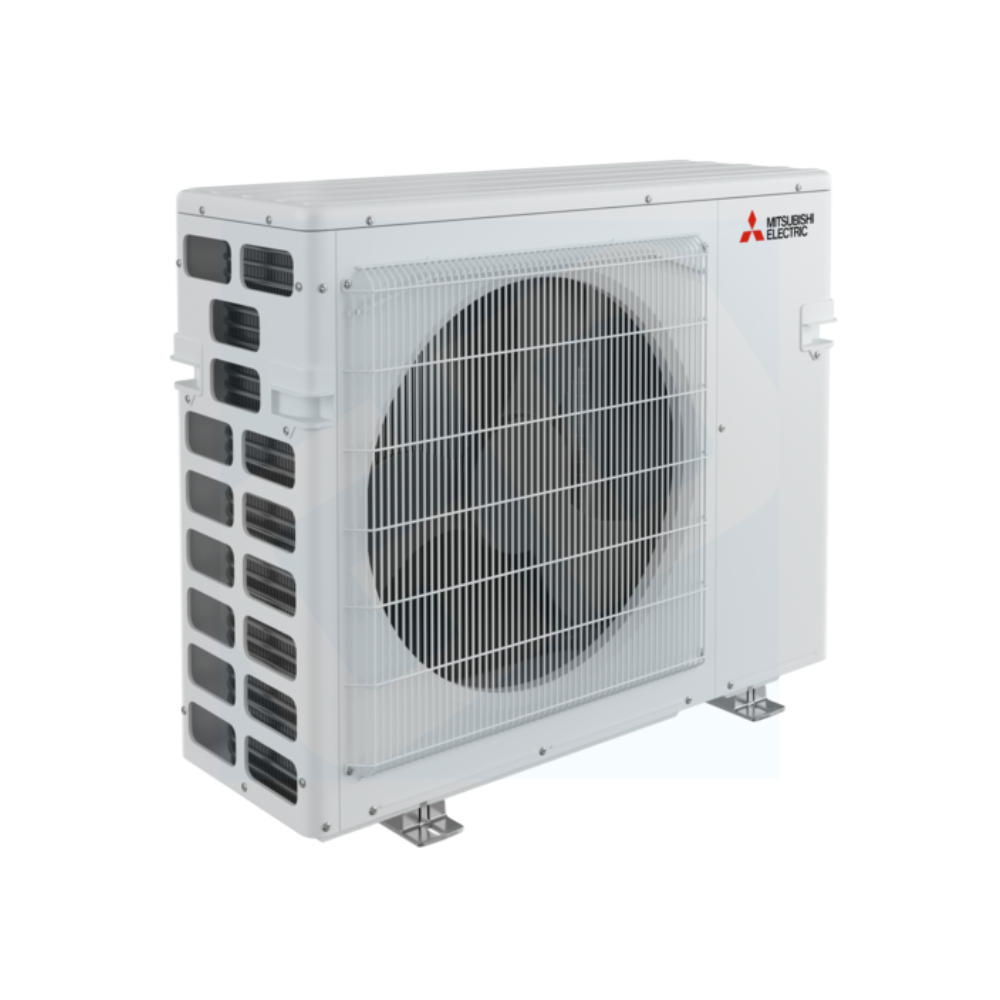

Mitsubishi Electric MXZ-2D20NL-U1 2-port 20,000 Btu Multi-Zone Condenser R-454B

Product Description

The Mitsubishi Electric MXZ-2D20NL-U1 is a 2-Port 20,000 Btu Multi-Zone Condenser using R-454B refrigerant. This efficient unit connects to various indoor unit types and handles two zones. It features a variable speed INVERTER-driven compressor and Blue Fin anti-corrosion treatment for increased coil protection and longer life.

• 20000 BTUs
• R454B refrigerant
• Two zones

Product Highlights

Efficient multi-zone condenser with anti-corrosion treatment and quiet operation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MXZ-2D20NL-U1

Technical Specifications

• Heating Capacity (BTU): 24000
• Application: Heating Cooling
• Refrigerant Type: R454B
• Number of Zones: 2
• Energy Star Rated: No
• Cooling Capacity (BTU): 20000
• Product Type: Outdoor Unit
• Voltage: 208/230V
• Unit Type: 1.66-Ton Inverter Condenser Heat Pump
• Product Line: M-Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: NO
• Unit Capacity: 20,000 BTU
• Outdoor Unit: MXZ-2D20NL
• Cooling at 95F: Maximum Capacity Btu/h: 20,000 // 21,000 // 22,000
• Cooling at 95F: Rated Capacity Btu/h: 18,000 // 19,000 // 20,000
• Cooling at 95F: Minimum Capacity Btu/h: 5,700 // 5,700 // 5,700
• Heating at 47F: Maximum Capacity Btu/h: 25,700 // 25,750 // 25,800
• Heating at 47F: Rated Capacity Btu/h: 24,000 // 22,000 // 23,000
• Heating at 47F: Minimum Capacity Btu/h: 7,400 // 7,400 // 7,400
• Heating at 17F: Maximum Capacity Btu/h: 16,600 // 16,200 // 15,800
• Heating at 5F: Maximum Capacity Btu/h: 13,700 // 12,600 // 11,800
• SEER2: 20 // 18 // 16
• EER2: 13 // 11.50 // 10
• HSPF2: 10 // 9.55 // 9.10
• Heating Minimum Temp: -4 F
• Cooling Minimum Temp: 10 F
• Refrigerant: R-454B
• Suction Line: 3/8"
• Liquid Line: 1/4"
• Nominal Tons: 1.75 Ton
