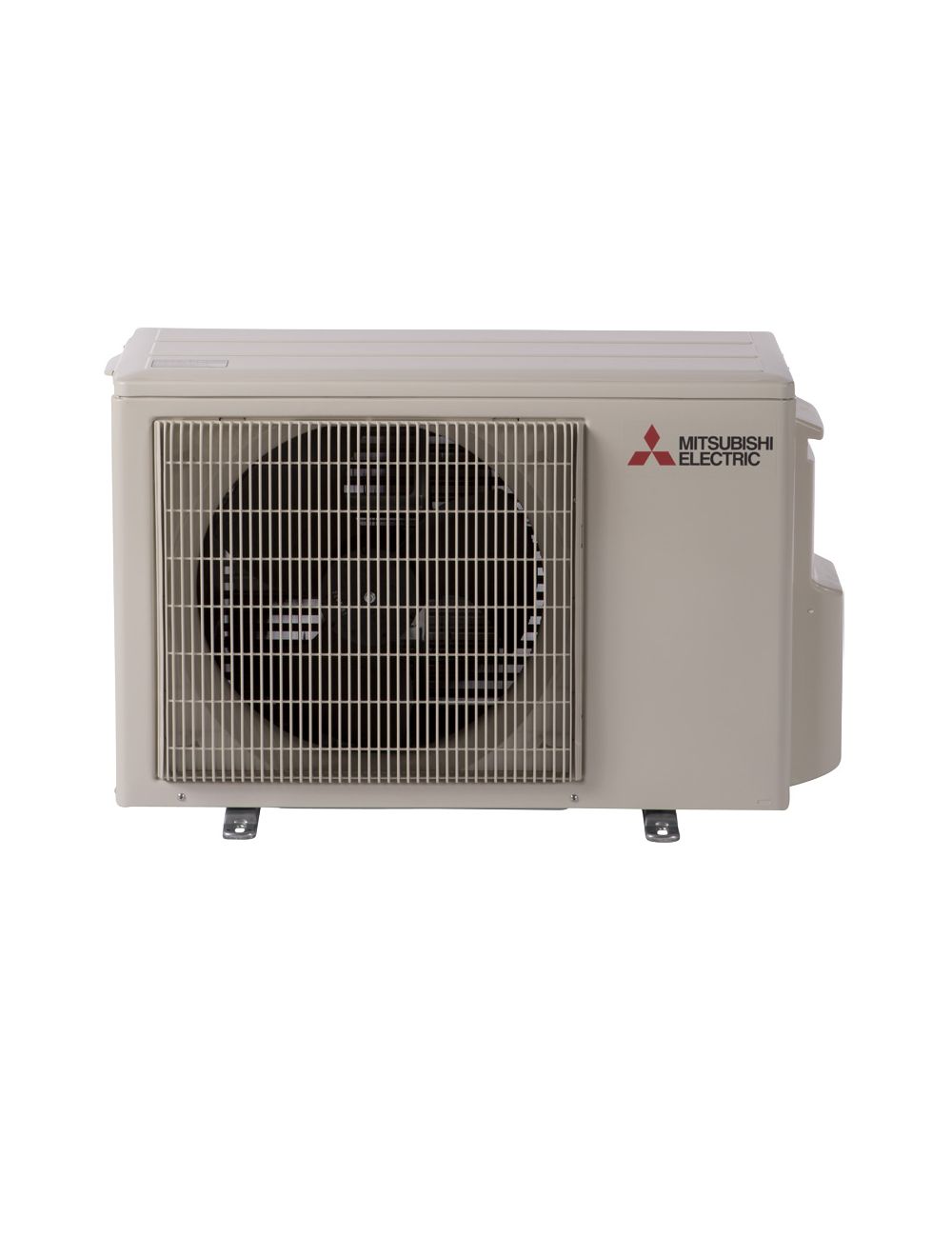

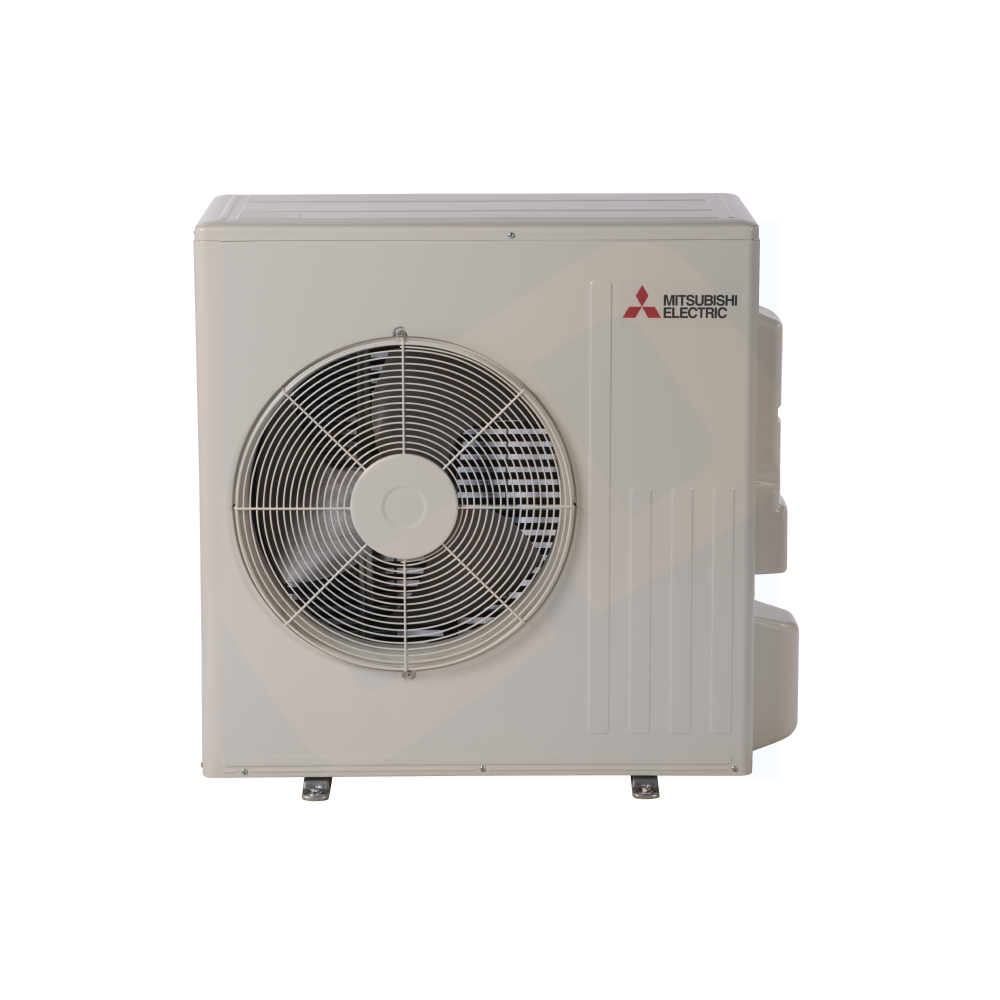

Mitsubishi Electric MUZ-WX24NL R454B: 24,000 BTU WR-SERIES HEAT PUMP CONDENSER

Product Description

The Mitsubishi Electric MUZ-WX24NL is a 24,000 BTU WR-Series heat pump condenser utilizing R454B refrigerant. This outdoor unit delivers efficient heating and cooling for spaces up to approximately 1,000 sq ft. It features Hyper-Heating down to -14°F and is compatible with smart controls.

• Features Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger.
• Equipped with an INVERTER-driven compressor to generate the precise capacity needed.
• The outdoor unit powers the indoor unit, with automatic restart after power outages.

Product Highlights

The MUZ-WX24NL heat pump condenser provides efficient and quiet heating and cooling, ideal for cold climates with smart control compatibility.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-WX24NL

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: WX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• System Capacity: 24,000 BTU
• Outdoor Unit: MUZ-WX24NL
• Cooling Capacity: up to 22,400 BTU
• Heating Capacity: up to 26,000 BTU
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• Voltage: 208/230 V
• Amperage: 16 A
• Cooling Wattage: 2800 W
• Heating Wattage: 2680 W
• Frequency: 60 Hz
• Phase: 1 ph
• Heating BTU/hr: 5400 to 26000 Btu/hr
• Cooling BTU/hr: 5800 to 22400 Btu/hr
• Heating CFM Rating: 1582 cfm
• Cooling CFM Rating: 1816 cfm
• EER Rating: 8
• SEER: 18
• HSPF: 8.5
• Connection: Flared Connection
• Compressor: Twin Rotary Compressor
• Refrigerant: R-454B
• Liquid Line: 1/4 in
• Suction Line: 1/2 in
• Fuse Rating: 20 A
• Drive: Inverter Drive
• Heating Sound Level: 55 dBA
• Cooling Sound Level: 57 dBA
• Heating Operating Temperature: 5 to 75 deg F
• Cooling Operating Temperature: 32 to 115 deg F
• Overall Length: 31-1/2 in
• Overall Width: 11-1/4 in
• Overall Height: 28-1/8 in
• BTU Cooling Rating: 24,000 BTU/h
• BTU Heating Rating: 26,000 BTU/h
• Compressor Type: Rotary
• Depth: 11.25 in
• EER2: 8.0
• ENERGY STAR Certified: No
• HSPF2: 8.5
• Number of Stages: Inverter
• Number of Zones: 1
• Product Type: Heat Pump
• SEER2: 18.0
• Sound Level: 57 dB(A)
• Tonnage: 2.0 Ton
• Voltage Rating: 208/230 V
• Width: 31.5 in
• Max Breaker Size: 20 A
