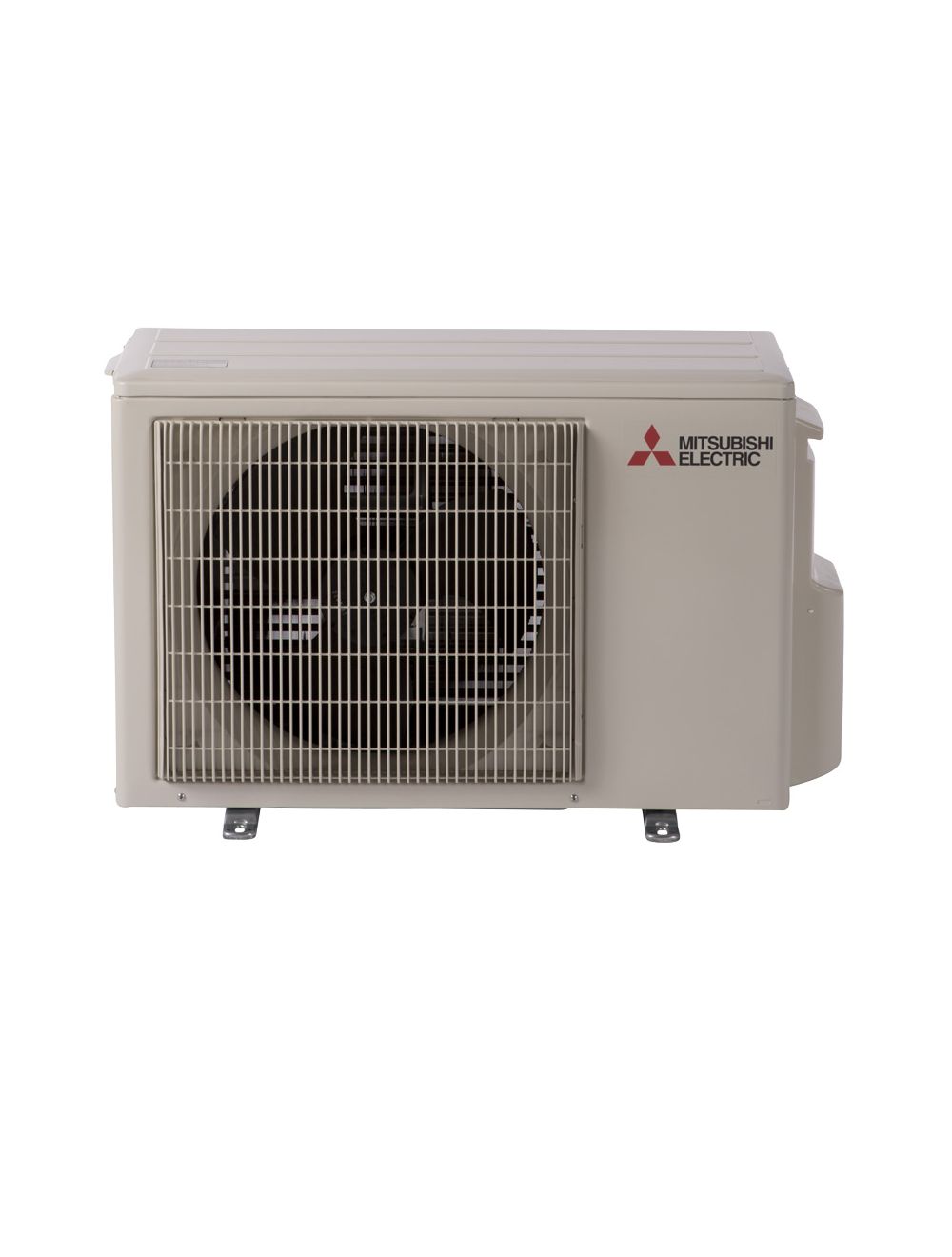

Mitsubishi Electric MUZ-WX18NL R454B: 18,000 BTU WR-SERIES HEAT PUMP CONDENSER

Product Description

The Mitsubishi Electric MUZ-WX18NL is an outdoor condenser for use in single-zone mini split applications. It supplies ductless heating and cooling. Equipped with inverter technology and an electronic linear expansion valve, it improves temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.

• Equipped with inverter technology and an electronic linear expansion valve for improved temperature accuracy and system efficiency.
• Coated with an anti-rust coating to extend its lifespan.
• An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion.

Product Highlights

This outdoor condenser features a blue fin coating and an inverter-driven compressor for efficient and durable performance.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-WX18NL

Technical Specifications

• Type: Outdoor Condenser
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Cooling BTU: 18000
• Cooling Capacity: 17200 BTU
• Heating Capacity: 18000 BTU
• Maximum Sound Level: 53 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 32 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 16 Amps
• Recommended Breaker Size: 28 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Model Number: MUZ-WX18NL
• BTU Cooling Rating (Custom): 18,000 BTU/h
• BTU Heating Rating (Custom): 18,000 BTU/h
• Compressor Type: Rotary
• EER2 (Custom): 9.0
• EER2: 9.5
• ENERGY STAR Certified: No
• HSPF2 (Custom): 8.0
• HSPF2: 8.5
• Liquid Line Size: 1/4 in
• Number of Stages: Inverter
• Number of Zones: 1
• Packaged Depth: 13.25 in
• Packaged Height: 11.25 in
• Packaged Width: 35.5 in
• Product Family: MUZ-WX Series
• Product Type: Heat Pump
• SEER2 (Custom): 18.0
• SEER2: 18.0
• Sound Level: 53 dB(A)
• Suction Line Size: 1/2 in
• Tonnage (Custom): 1.5 Ton
• Tonnage: 1.5 Ton
• Voltage Rating: 208/230 V
