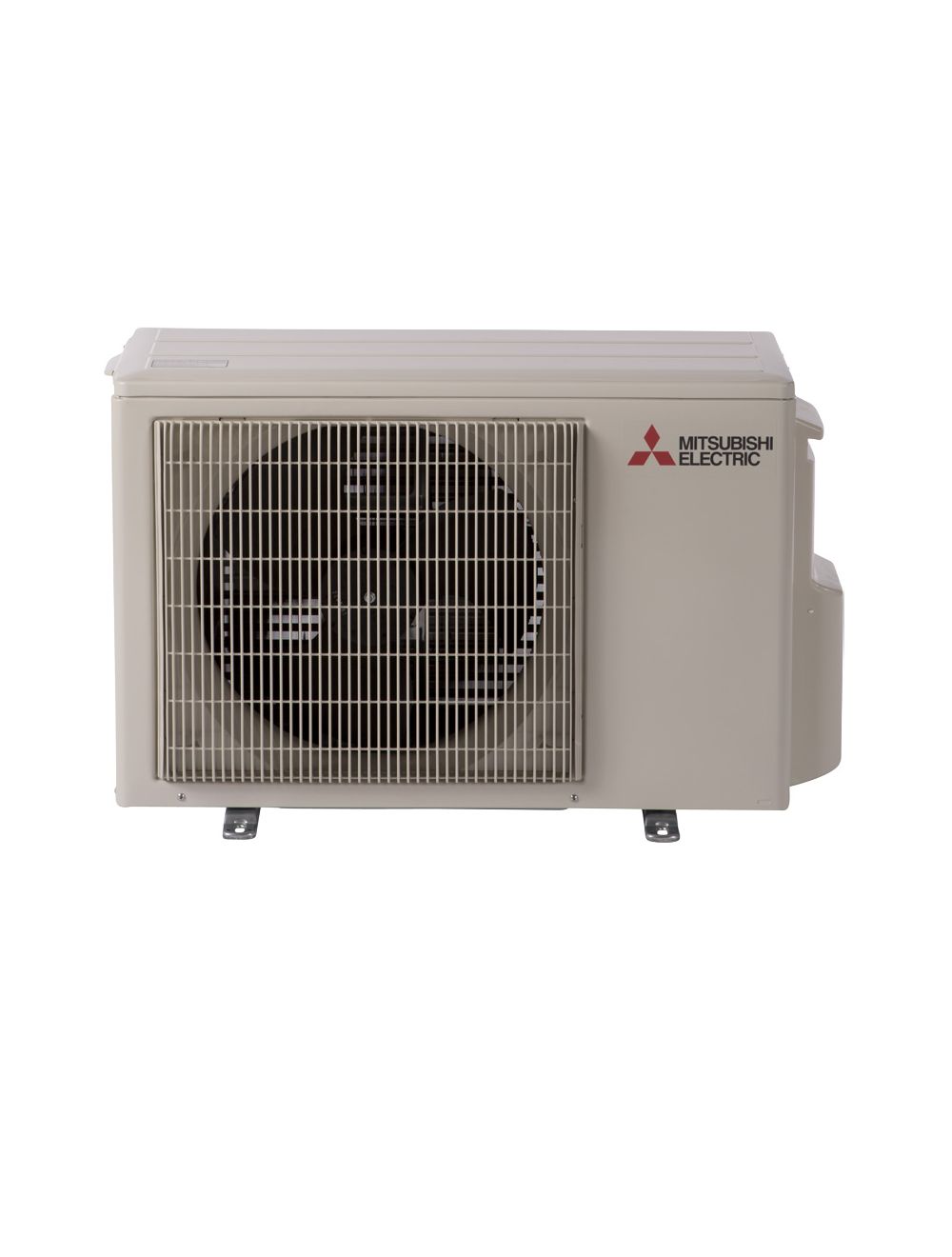

Mitsubishi Electric MUZ-HX24NL Mini Split Heat Pump AC Condenser 24000 BTU

Product Description

The MITSUBISHI ELECTRIC MUZ-HX24NL 20 SEER2 heat pump works with the MSZ-HX 20 SEER2 wall unit to heat and cool an area. It features a Blue Fin coating that protects internal parts, extending the system's lifespan. The inverter-driven compressor generates the precise capacity needed to maintain a set temperature. This single-zone system delivers efficient heating and cooling.

• Blue Fin Coating: Anti-corrosion treatment protects against salt, sulfur, and other airborne contaminants.
• INVERTER-driven compressor: Generates the precise capacity needed to maintain a temperature set point.
• Powered by Outdoor Unit: Automatically restarts the system after a power outage.

Product Highlights

The MUZ-HX24NL mini split heat pump provides efficient, user-friendly comfort with features like Blue Fin coating and an inverter-driven compressor.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-HX24NL

Technical Specifications

• Model Number: MUZ-HX24NL
• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Outdoor Unit Size: 24000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 1/2"
• Cooling BTU: 24000
• Cooling Capacity: 22400 BTU
• Heating Capacity: 26000 BTU
• Maximum Sound Level: 50 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 20.0
• EER2: 11.75
• HSPF2: 9.5
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 23 Amps
• Recommended Breaker Size: 40 Amps
• Suction Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215862743
• Remote Control: Wireless
• Moisture Removal: 5.5 Pints/Hour
• Maximum Air Flow: 720 CFM
• Minimum Air Flow: 306 CFM
• Minimum Sound Level: 33 dB
• Installation Location: Outdoor
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Maximum Line Length: 100 Feet
• Gas Connection Size: 1/2 Inch
