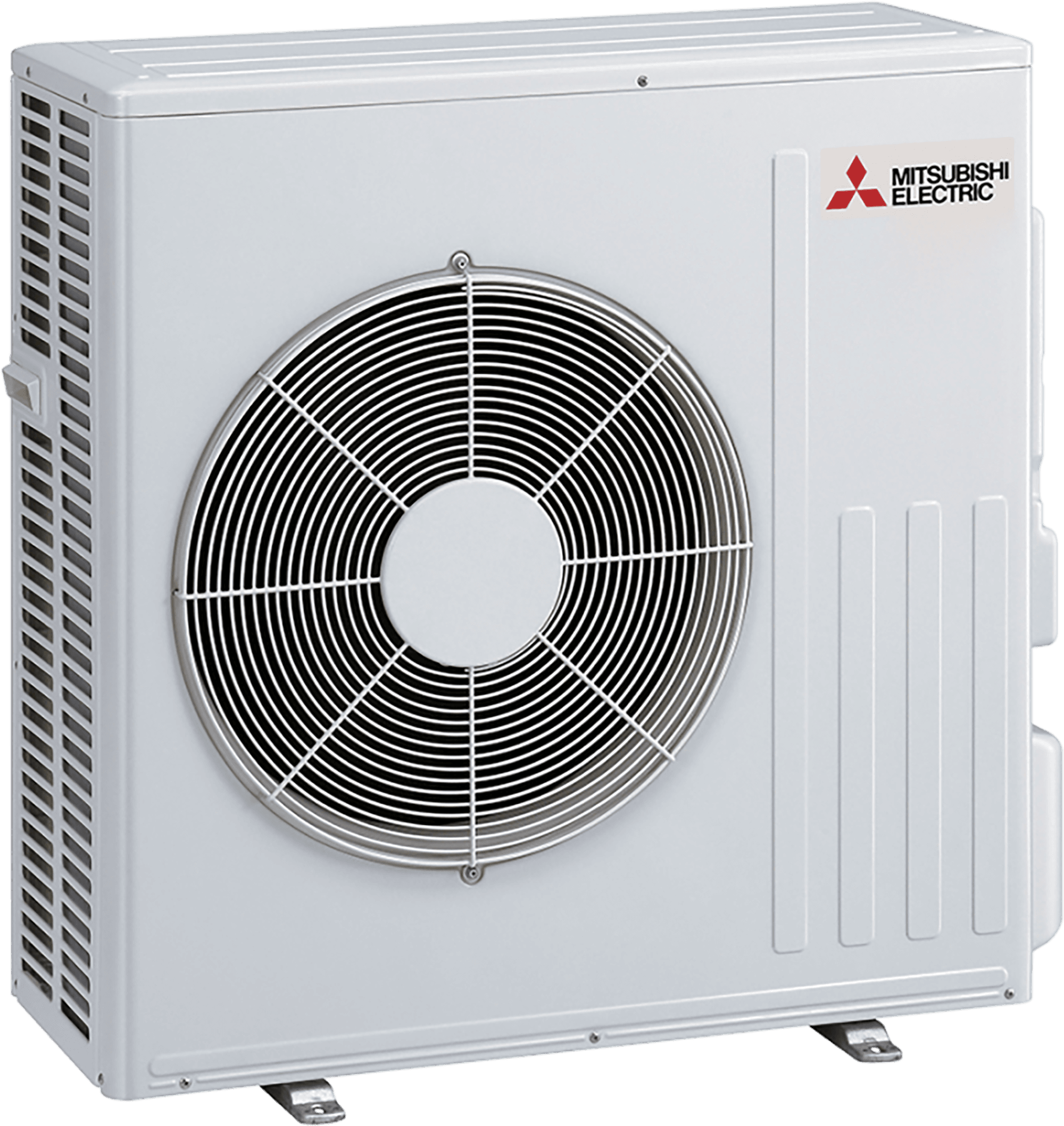

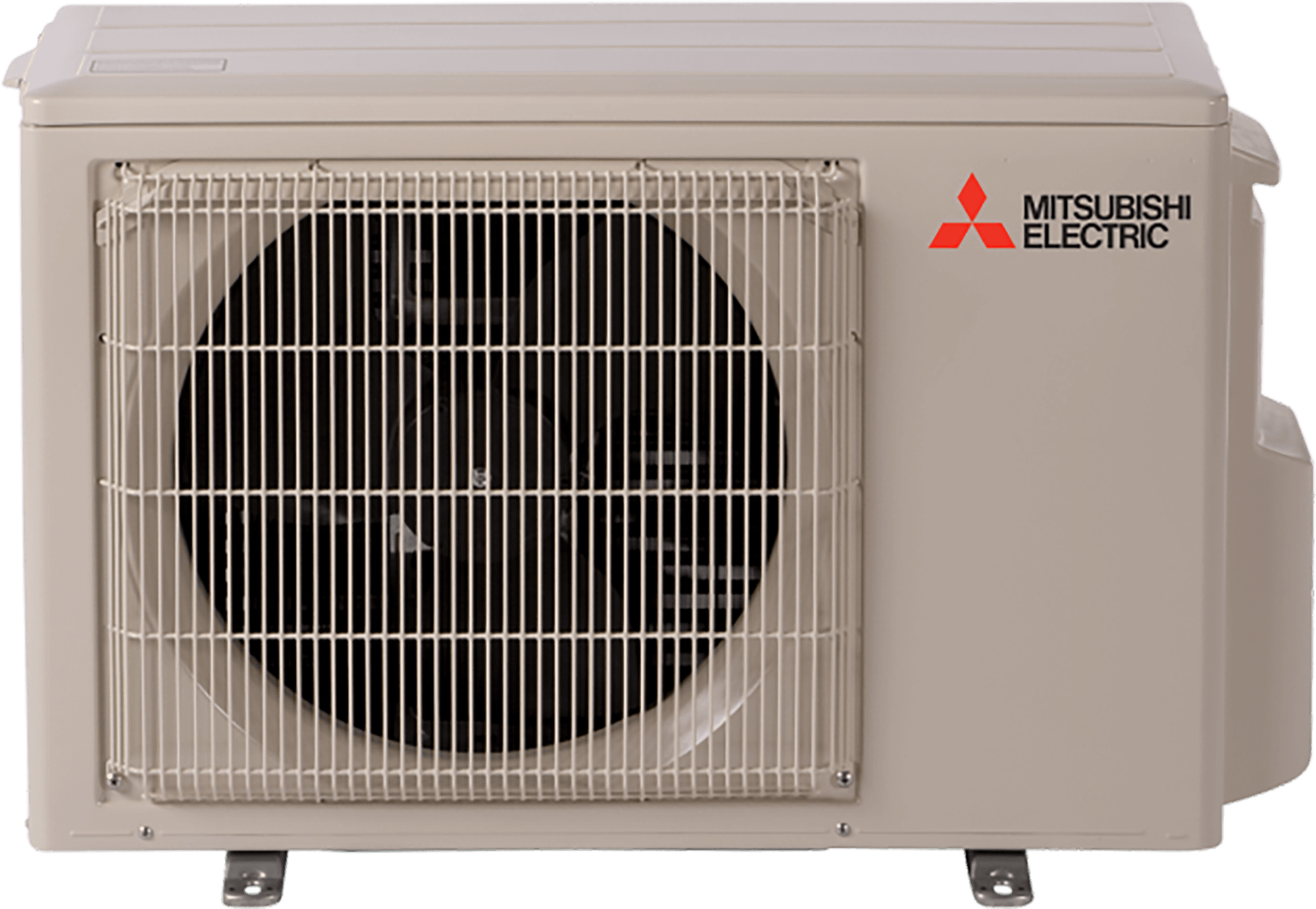

Mitsubishi Electric MUZ-HX12NL HX-Series Outdoor Condenser - Single-Zone - 12k BTU - R-454B

Product Description

The Mitsubishi Electric MUZ-HX12NL is an outdoor condenser designed for single-zone mini split applications, providing both heating and cooling. Featuring inverter technology, this unit enhances temperature accuracy and system efficiency through precise adjustments of compressor speed and refrigerant flow. The condenser is coated with an anti-rust layer to extend its lifespan. Compatible with mini split indoor units.

• Inverter technology for efficiency
• Electronic linear expansion valve for temperature accuracy
• Blue Fin Condenser with anti-rust coating

Product Highlights

The MUZ-HX12NL offers efficient, user-friendly comfort solutions for ductless heating and cooling.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-HX12NL

Technical Specifications

• Type: Outdoor Condenser
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Heating Capacity: 12200 BTU
• Maximum Sound Level: 51 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 16 Amps
• Recommended Breaker Size: 28 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Series: M-Series
• Model: MUZ-HX
• Refrigerant: R454B
• ENERGY STAR: Yes
• SEER2: Up to 20
• HSPF2: Up to 9.5
