Mitsubishi Electric MUZ-HX09NL HX-Series Outdoor Condenser - Single-Zone - 9k BTU - R-454B

Product Description

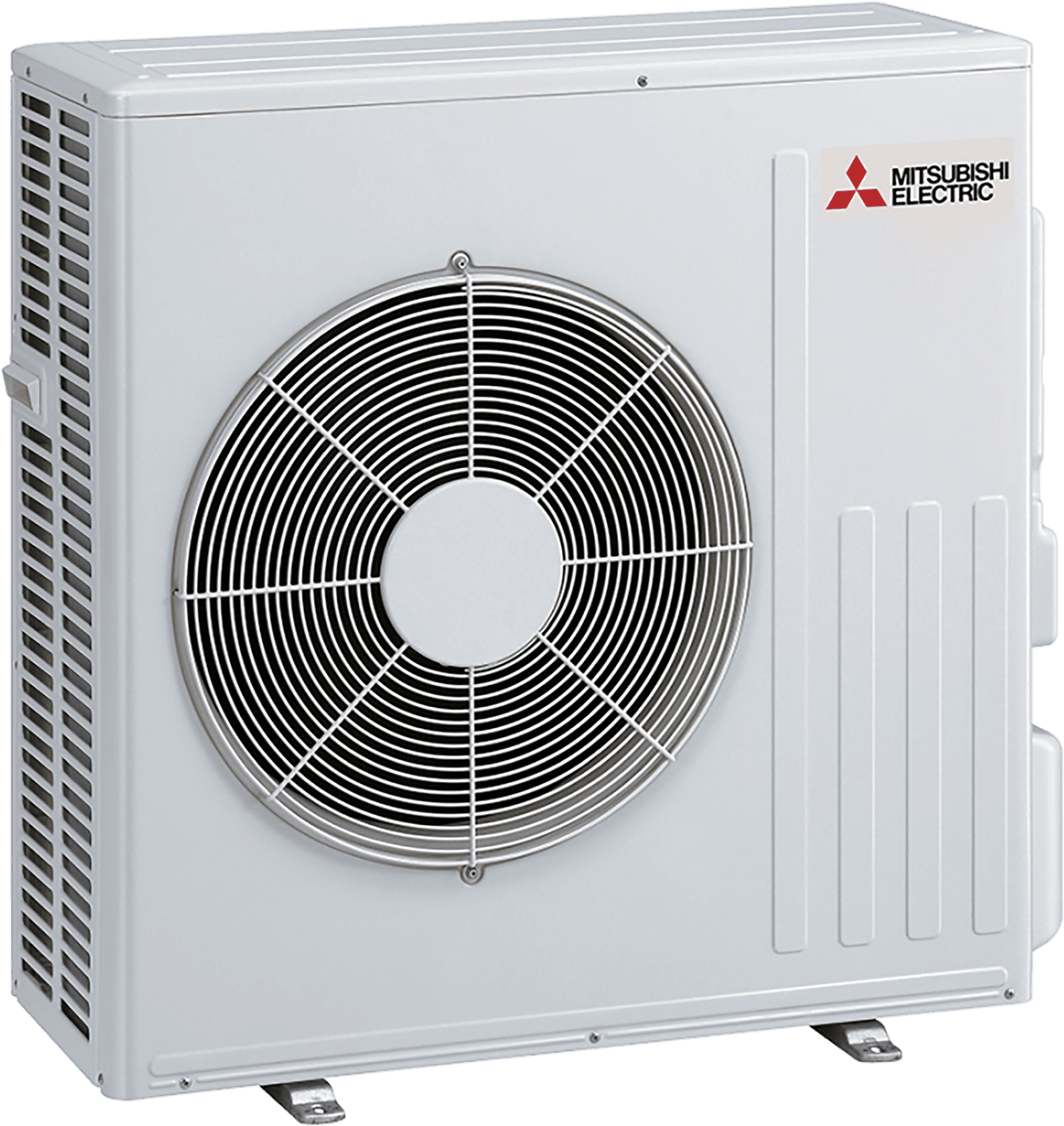

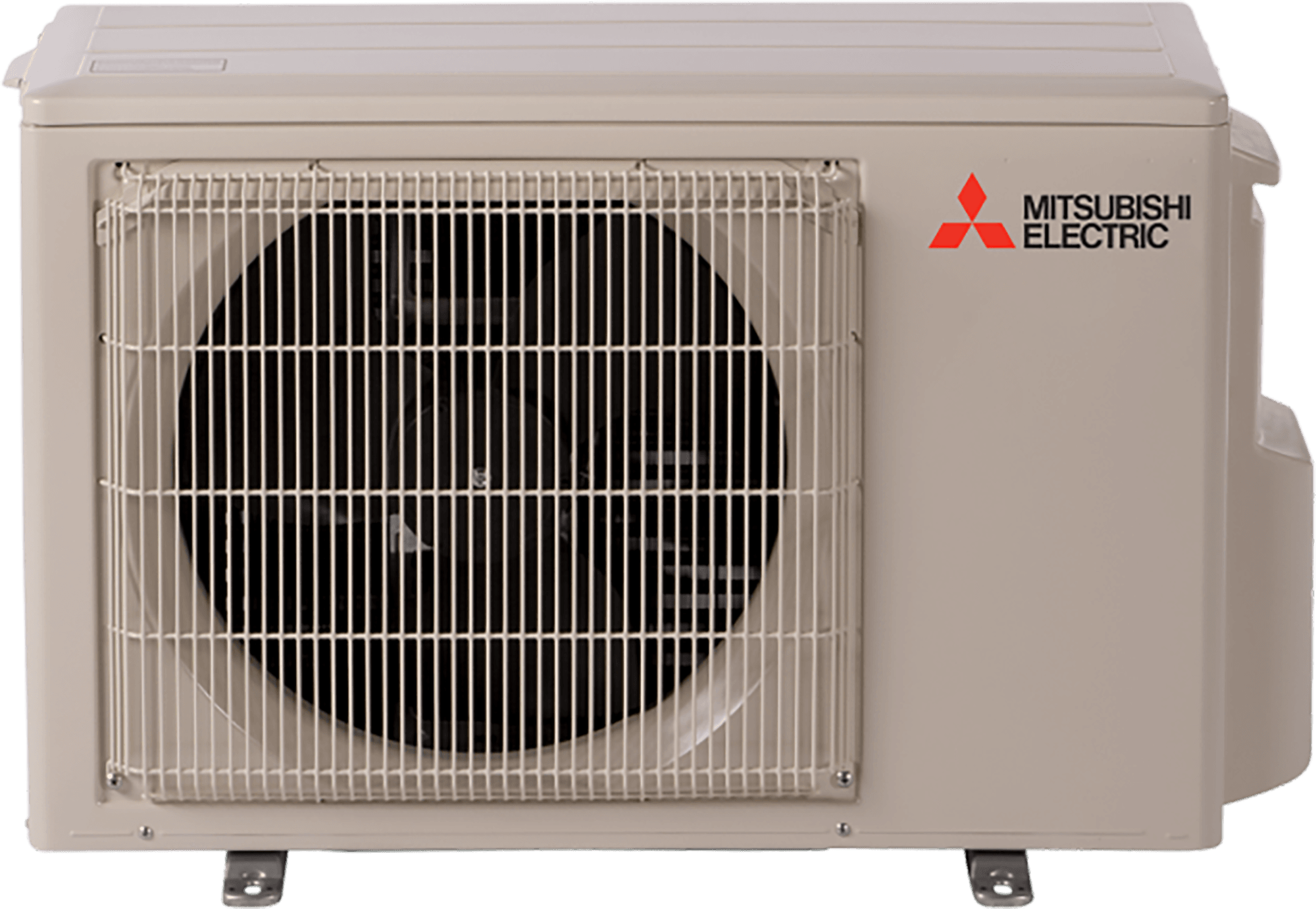

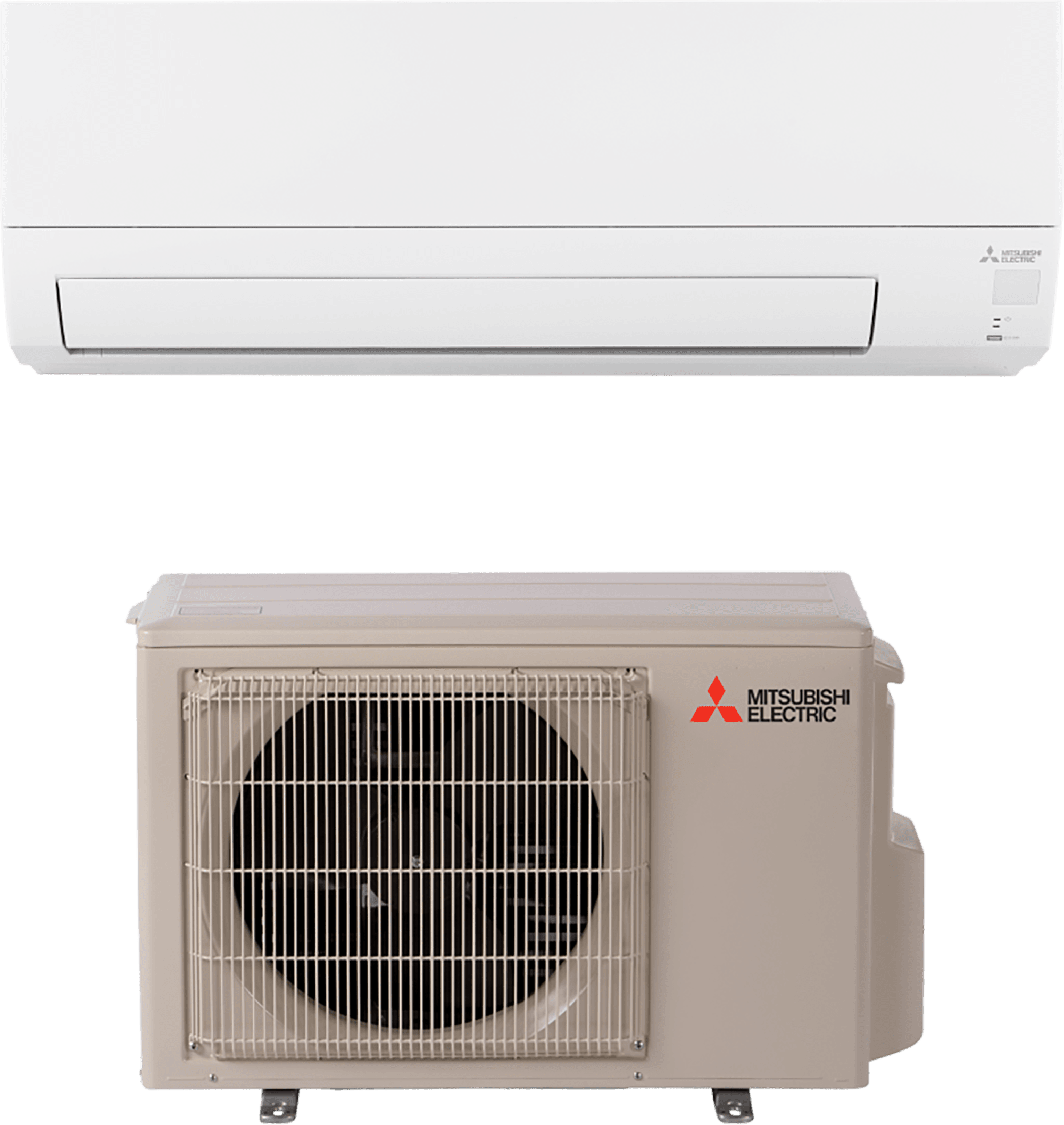

The MITSUBISHI ELECTRIC MUZ-HX09NL is an outdoor condenser designed for single-zone mini split applications, providing both heating and cooling. Featuring inverter technology and an electronic linear expansion valve, it enhances temperature accuracy and system efficiency. The condenser is coated with an anti-rust finish for extended lifespan. Compatible with high-performance, 20 SEER2 wall-mounted single-zone indoor units.

• Precision Temperature Control Technology
• Blue Fin Condenser
• ENERGY STAR certified for energy efficiency

Product Highlights

This outdoor condenser offers efficient and precise temperature control for single-zone mini split systems, ensuring year-round comfort and durability.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-HX09NL

Technical Specifications

• Type: Outdoor Condenser
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Cooling BTU: 9000
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• Maximum Sound Level: 50 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 10 Amps
• Recommended Breaker Size: 17 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Series: M-Series
• Model: MUZ-HX
• Capacity range: 9,000 to 24,000 BTU/H
• Sound level: As low as 46 dB(A)
• ENERGY STAR: Yes
• SEER2: Up to 20
• HSPF2: Up to 9.5
