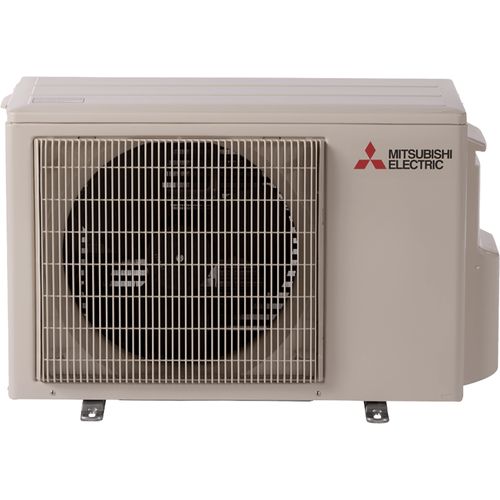

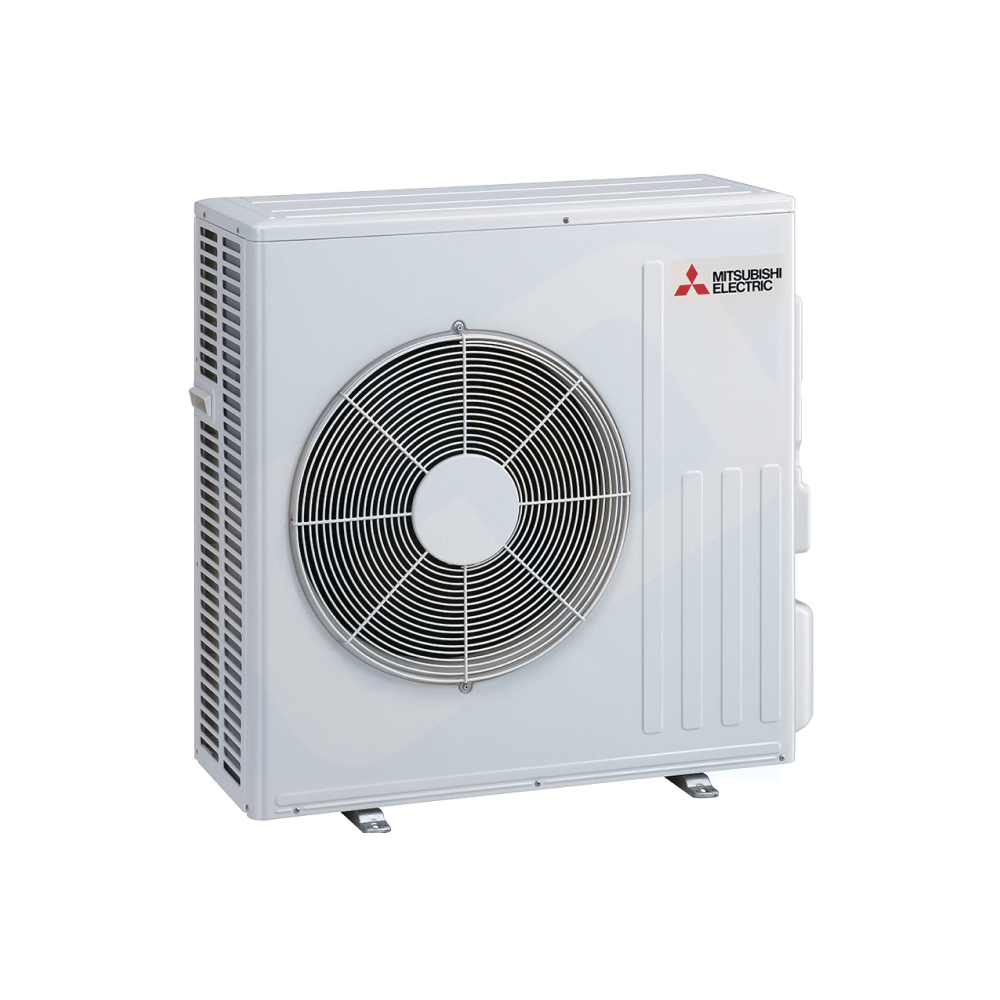

Mitsubishi Electric MUZ-GX36NL-U1 Heat Pump Condenser 36,000 BTU R-454B

Product Description

The Mitsubishi Electric MUZ-GX36NL-U1 is a 36,000 BTU Heat Pump Condenser that uses R-454B refrigerant. It delivers powerful heating and cooling for spaces up to 1,500 sq ft. Features include INVERTER technology and quiet operation. Durable coatings ensure reliable year-round comfort.

• Operates in both Cooling and Heating modes.
• Built-in Wi-Fi enabled with Comfort App.
• Features Blue Fin Coating for corrosion protection.

Product Highlights

This Mitsubishi Electric heat pump condenser provides efficient and reliable climate control with smart features and durable construction.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX36NL-U1

Technical Specifications

• Application: Cooling Heating
• Voltage: 208/230V
• Energy Star Rated: Yes
• Cooling Capacity (BTU): 36000
• Refrigerant Type: R454B
• Product Type: Outdoor Unit
• Heating Capacity (BTU): 40000
• Number of Zones: 1
• Unit Type: Single Zone
• Product Line: GX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• System Capacity: 36,000 BTU
• Line Set Size: 1/4" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Outdoor Unit: MUZ-GX36NL
• Remote Controller Included: None
• Cooling Capacity up to: 33,800 BTU
• Heating Capacity up to: 36,000 BTU
• SEER2: 18.5
• EER2: 8.4
• HSPF2: 8.5
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity up to: 1,500 sq ft
• Airflow Cooling CFM, Dry: 324-392-454-636-765
• Airflow Cooling CFM, Wet: 292-353-408-573-688
• Airflow Heating CFM, Dry: 344-392-454-530-765
• Noise Level dB(A), Cooling: 30-37-41-48-53
• Noise Level dB(A), Heating: 30-37-41-45-50
