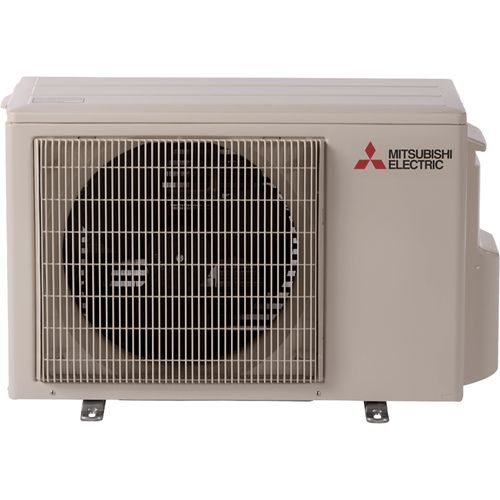

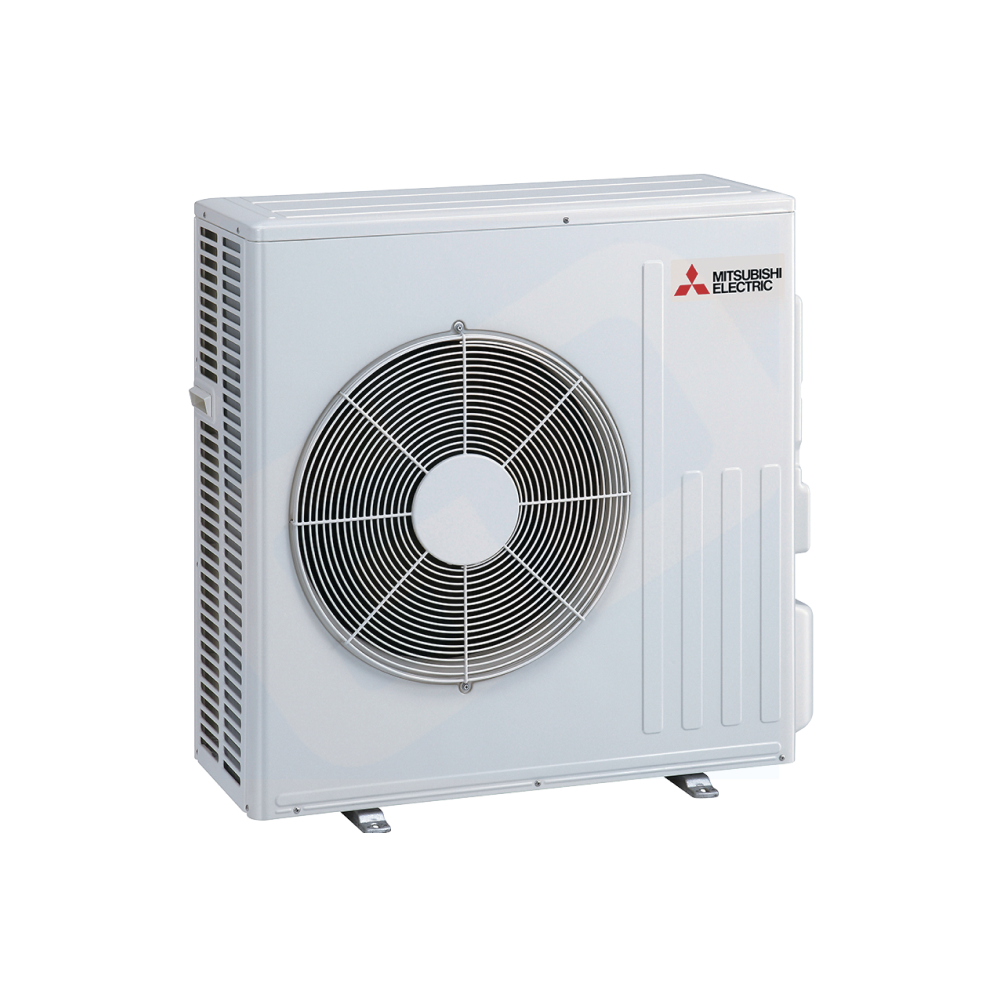

Mitsubishi Electric MUZ-GX30NL-U1 Heat Pump Condenser 30,000 Btu R-454B

Product Description

The Mitsubishi Electric MUZ-GX30NL-U1 is a 30,000 Btu Heat Pump Condenser that uses R-454B refrigerant. It delivers powerful heating and cooling for rooms up to 1,250 sq ft. Featuring INVERTER technology, Hyper-Heat to 5 0F, built-in Wi-Fi, quiet operation, and durable coatings for reliable year-round comfort.

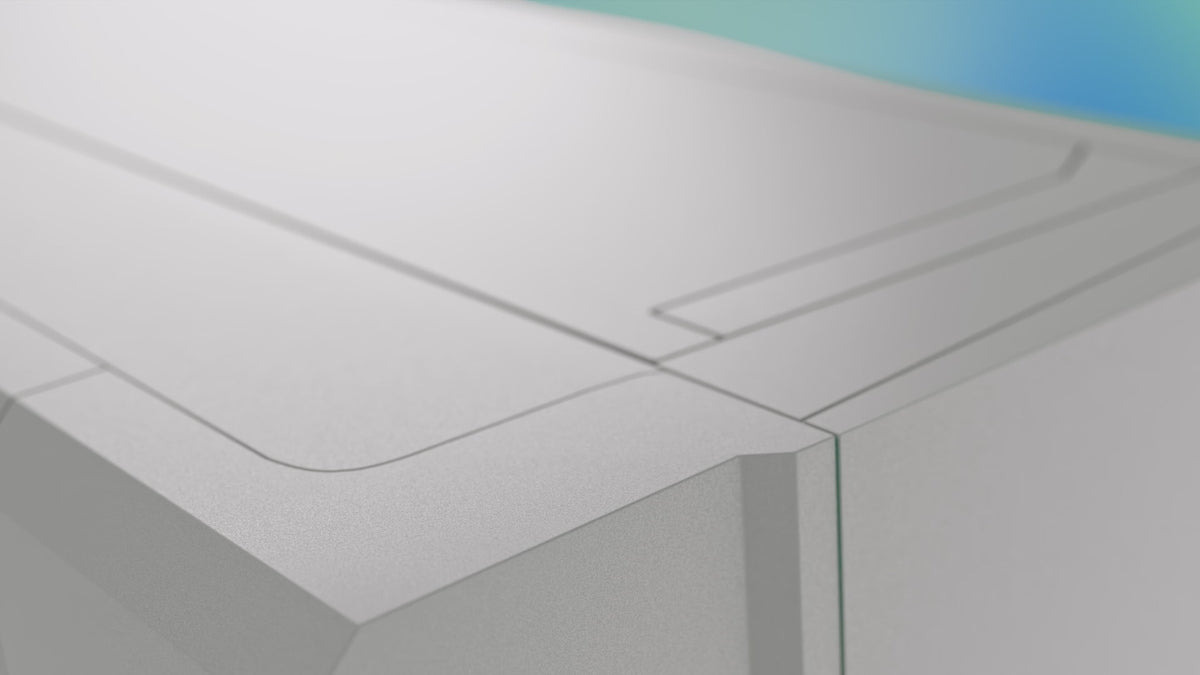

• Dual Barrier Coating reduces the collection of contaminants on the inner surface of the heat pump.
• Econo Cool adjusts the airflow based on heat exchanger temperature to save energy.
• Wi-Fi enabled units pair with the Comfort app for complete control.

Product Highlights

This Mitsubishi Electric heat pump condenser provides efficient and reliable heating and cooling with smart features and durable construction.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX30NL-U1

Technical Specifications

• Number of Zones: 1
• Cooling Capacity (BTU): 30000
• Application: Heating Cooling
• Heating Capacity (BTU): 34000
• Voltage: 208/230V
• Refrigerant Type: R454B
• Energy Star Rated: Yes
• Product Type: Outdoor Unit
• Unit Type: Single Zone
• Product Line: GX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• System Capacity: 30,000 BTU
• Line Set Size: 1/4" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes

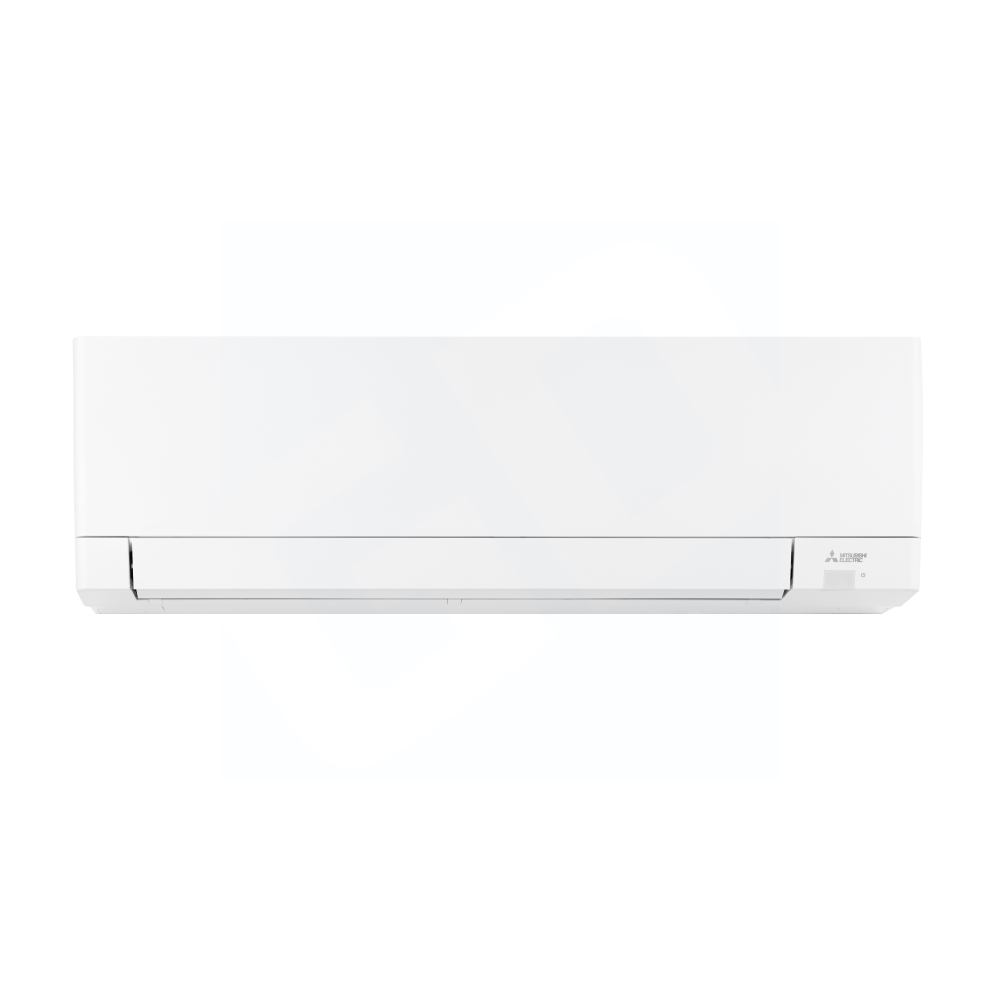

• Indoor Unit: MSZ-GX30NL
• Outdoor Unit: MUZ-GX30NL
• Remote Controller Included: None
• Cooling Capacity up to: 30,600 BTU
• Heating Capacity up to: 34,000 BTU
• SEER2: 19.2
• EER2: 9.05
• HSPF2: 8.9
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity up to: 1,250 sq ft
• Airflow Cooling CFM, Dry: 324-392-454-636-765
• Airflow Cooling CFM, Wet: 292-353-408-573-688
• Airflow Heating CFM, Dry: 344-392-454-530-765
• Noise Level dB(A), Cooling: 30-37-41-48-53
• Noise Level dB(A), Heating: 30-37-41-45-50
• Cooling: 3380 W
• Heating: 4000 W
• Frequency: 60 Hz
• Phase: 1 ph
• Liquid Line: 1/4 in
• Suction Line: 5/8 in
• Fuse Rating: 25 A
• Heating Operating Temperature: -5 to 65 deg F
• Cooling Operating Temperature: 14 to 115 deg F
• EER Rating: 9.05
• SEER: 19.2
• HSPF: 8.9
