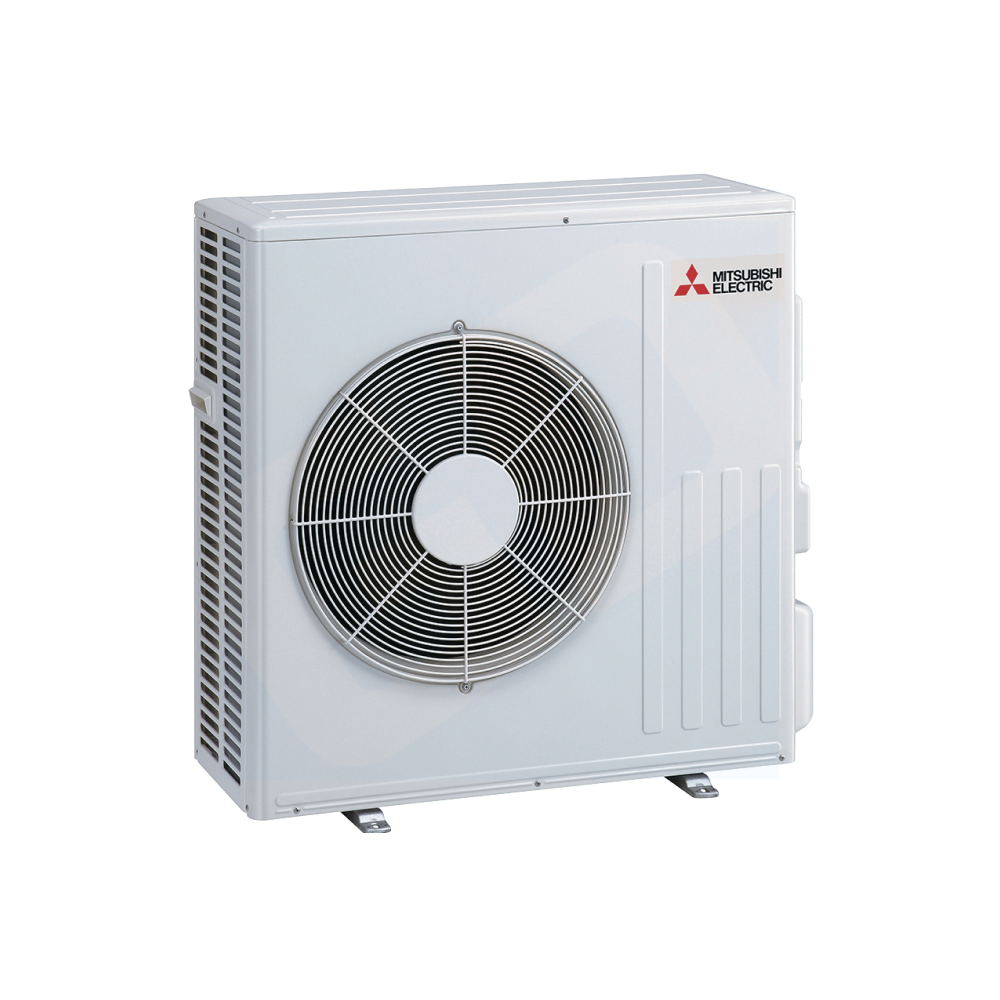

Mitsubishi Electric MUZ-GX30NL R454B: 30,000 BTU Heat Pump Condenser

Product Description

The Mitsubishi Electric MUZ-GX30NL is a 30,000 BTU heat pump condenser utilizing R454B refrigerant. Designed as an outdoor condenser for single-zone mini split systems, it provides both heating and cooling. Features include inverter technology and an electronic linear expansion valve for precise temperature control. The condenser is coated with an anti-rust finish for extended lifespan.

• Precision Temperature Control Technology
• Blue Fin Condenser
• Suitable for single-zone mini split applications

Product Highlights

Efficient and quiet, the MUZ-GX30NL offers precise temperature control and durable construction for reliable home comfort.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX30NL

Technical Specifications

• Type: Outdoor Condenser
• Product Line: GX-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Base Pan Heater Included: No
• Cooling BTU: 30000
• Cooling Capacity: 30600 BTU
• Heating Capacity: 32600 BTU
• Maximum Sound Level: 57 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 23 Amps
• Recommended Breaker Size: 40 Amps
• Maximum Line Length: 100 Feet
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 34.625 Inches
• Product Width: 33.0625 Inches
• Product Depth: 13 Inches
• Product Weight: 116 Pounds
• Shipping Weight: 135 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Unit Type: Outdoor Unit
• System Capacity: 30,000 BTU
• Line Set Size: 1/4" x 5/8"
• Room Cooling/Heating Capacity: up to 1,250 sq ft
