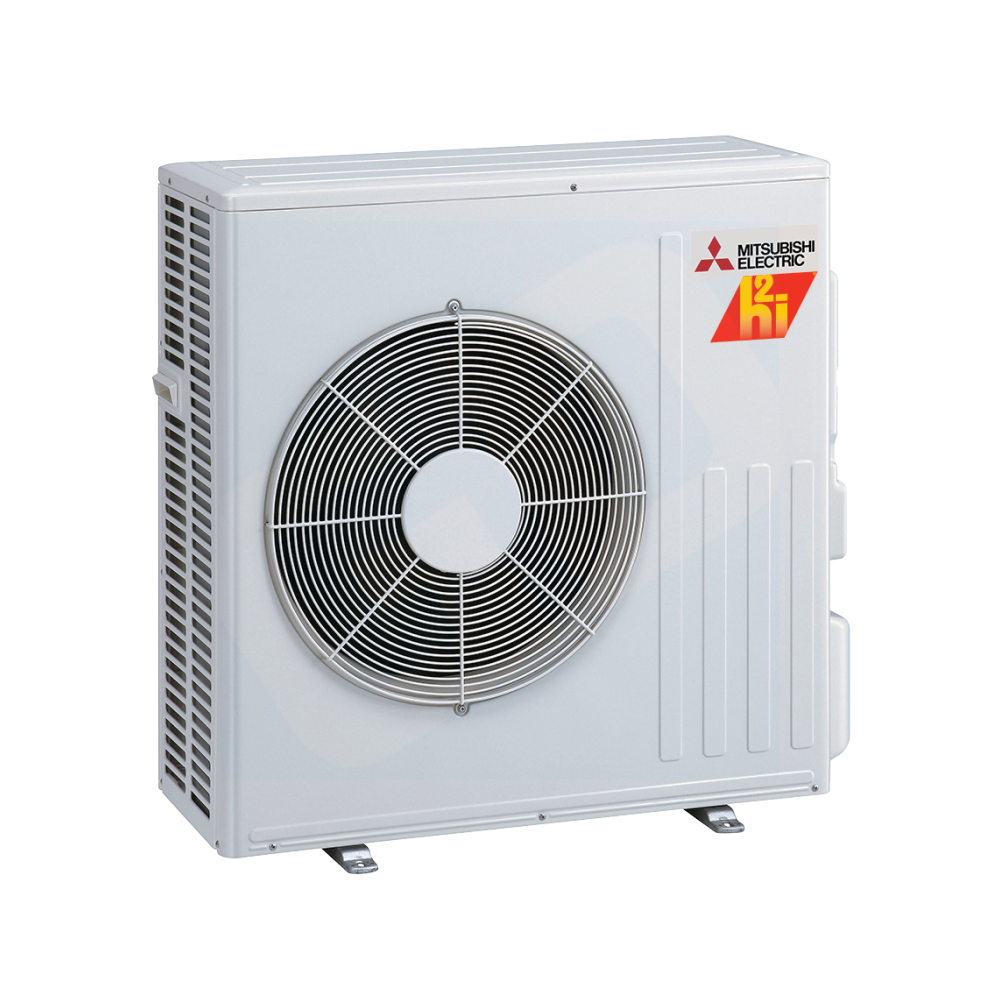

Mitsubishi Electric MUZ-GX24NLHZ-U1 Heat Pump 24,000 BTU

Product Description

The Mitsubishi Electric MUZ-GX24NLHZ-U1 delivers powerful 24,000 BTU heating and cooling. Featuring Hyper Heat technology, built-in Wi-Fi, and quiet operation, this ductless system ensures reliable, energy-efficient year-round comfort. It also features blue fin coating, a built-in base pan heater, and a DC fan motor.

• Dual Barrier Coating reduces the collection of contaminants resulting in optimal airflow and easier maintenance.
• Econo Cool adjusts the airflow based on heat exchanger temperature, saving energy while maintaining comfort.
• Wi-Fi enabled units pair with the Comfort app for complete control.

Product Highlights

This Mitsubishi Electric heat pump provides efficient heating and cooling with smart features and quiet operation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX24NLHZ-U1

Technical Specifications

• Unit Type: Single Zone
• Product Line: GX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones: 1
• System Capacity: 24,000 BTU
• Line Set Size: 1/4" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes

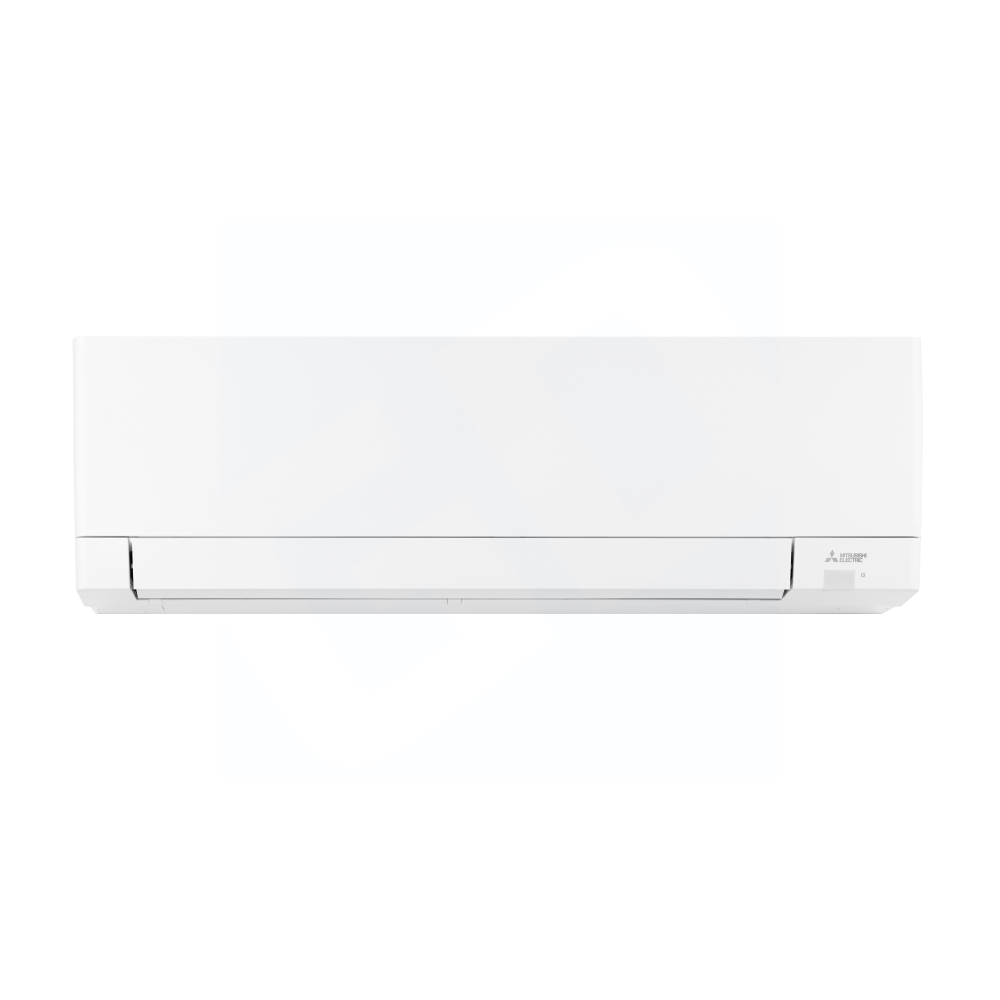

• Indoor Unit: MSZ-GX24NL
• Outdoor Unit: MUZ-GX24NLHZ
• Remote Controller: Included
• Cooling Capacity: up to 27,000 BTU
• Heating Capacity: up to 32,000 BTU
• SEER2: 21.5
• EER2: 13
• HSPF2: 10
• Heating Minimum Temp: -34 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• Airflow Cooling CFM, Dry: 324-392-454-636-765
• Airflow Cooling CFM, Wet: 292-353-408-573-688
• Airflow Heating CFM, Dry: 344-392-454-530-765
• Noise Level dB(A), Cooling: 30-37-41-48-53
• Noise Level dB(A), Heating: 30-37-41-45-50
• Condenser Motor Speeds: 1
• Cooling Rated Capacity Btu/h: 7400
• Cycle/Hertz: 60 Hz
• Phase: Single
• Refrigerant: R-454B
• Tonnage: 2
• Voltage: 208-230 VAC
• High Heat: No
• Nominal Tons: 2 Ton
• Liquid Line: 1/4"
• Suction Line: 5/8"
• BTU Cooling Rating (Custom): 24,000 BTU/h
• BTU Cooling Rating: 24,000 BTU/h
• BTU Heating Rating (Custom): 24,000 BTU/h
• BTU Heating Rating: 21,200 BTU/h
• Compressor Type: Rotary
• Depth: 13 in
• EER2 (Custom): 13.0
• ENERGY STAR Certified: Yes
• HSPF2 (Custom): 10.0
• Height: 34.625 in
• Max Breaker Size: 25 A
• Model Number: MUZ-GX
• Number of Stages: Inverter
• Product Family: MUZ-GX Series
• Product Type: Heat Pump
• Sound Level: 55 dB(A)
• Tonnage (Custom): 2.0 Ton
• Voltage Rating: 208/230 V
• Width: 33.063 in
