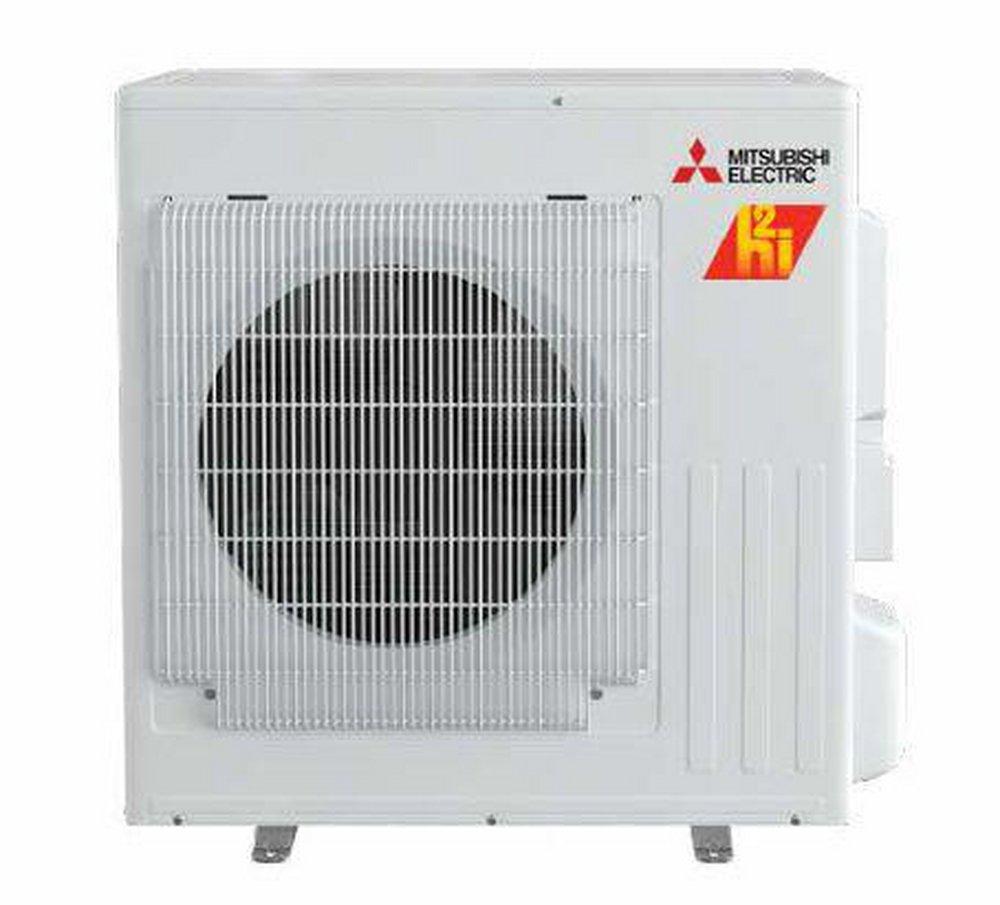

Mitsubishi Electric MUZ-GX24NLHZ Outdoor Mini-Split Heat Pump Condenser

Product Description

The Mitsubishi Electric MUZ-GX24NLHZ is an outdoor mini-split heat pump condenser from the MSZ-GX-NL series. It operates at 208/230 V, 23 A, with 2890 W cooling and 4000 W heating power, and a frequency of 60 Hz. This unit features a twin rotary compressor and uses R-454B refrigerant. It has a cooling capacity of 7400 to 27000 Btu/hr and a heating capacity of 6800 to 32000 Btu/hr.

• Equipped with Blue Fin Coating for corrosion protection.
• Features hot-start technology to prevent cold air blasts at start-up.
• Includes Hyper-Heating INVERTER (H2i) for 100% heating capacity down to 5 deg F.

Product Highlights

This mini-split heat pump condenser offers efficient heating and cooling with advanced features for durability and performance.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX24NLHZ

Technical Specifications

• Voltage: 208/230 V
• Amperage: 23 A
• Cooling Wattage: 2890 W
• Heating Wattage: 4000 W
• Frequency: 60 Hz
• Phase: 1 ph
• Heating BTU/hr: 6800 to 32000 Btu/hr
• Cooling BTU/hr: 7400 to 27000 Btu/hr
• Heating CFM Rating: 1934 cfm
• Cooling CFM Rating: 2202 cfm
• EER Rating: 13
• SEER: 21.5
• HSPF: 10
• Connection Type: Flared Connection
• Compressor Type: Twin Rotary Compressor
• Refrigerant: R-454B
• Liquid Line Size: 1/4 in
• Suction Line Size: 5/8 in
• Fuse Rating: 25 A
• Drive Type: Inverter Drive
• Heating Sound Level: 55 dBA
• Cooling Sound Level: 55 dBA
• Heating Operating Temperature: -22 to 75 deg F
• Cooling Operating Temperature: 14 to 115 deg F
• Overall Length: 33-1/16 in
• Overall Width: 13 in
• Overall Height: 34-5/8 in
• Series: MSZ-GX-NL Series
