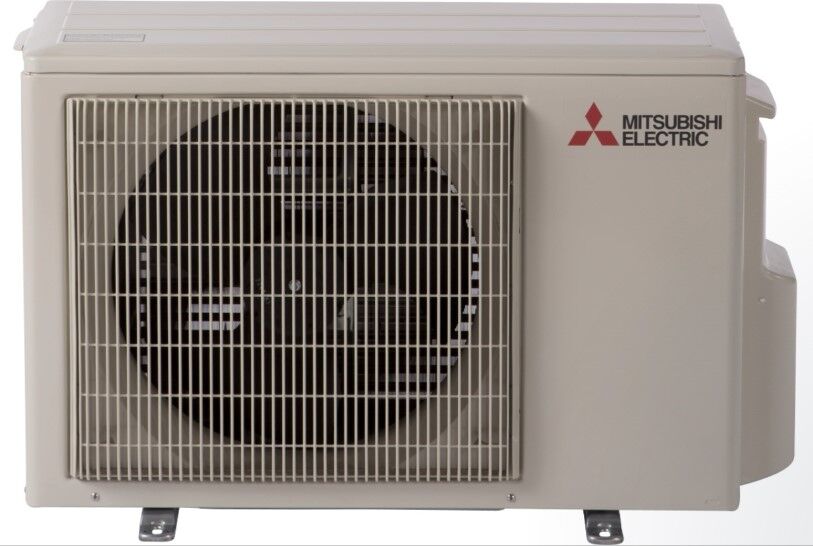

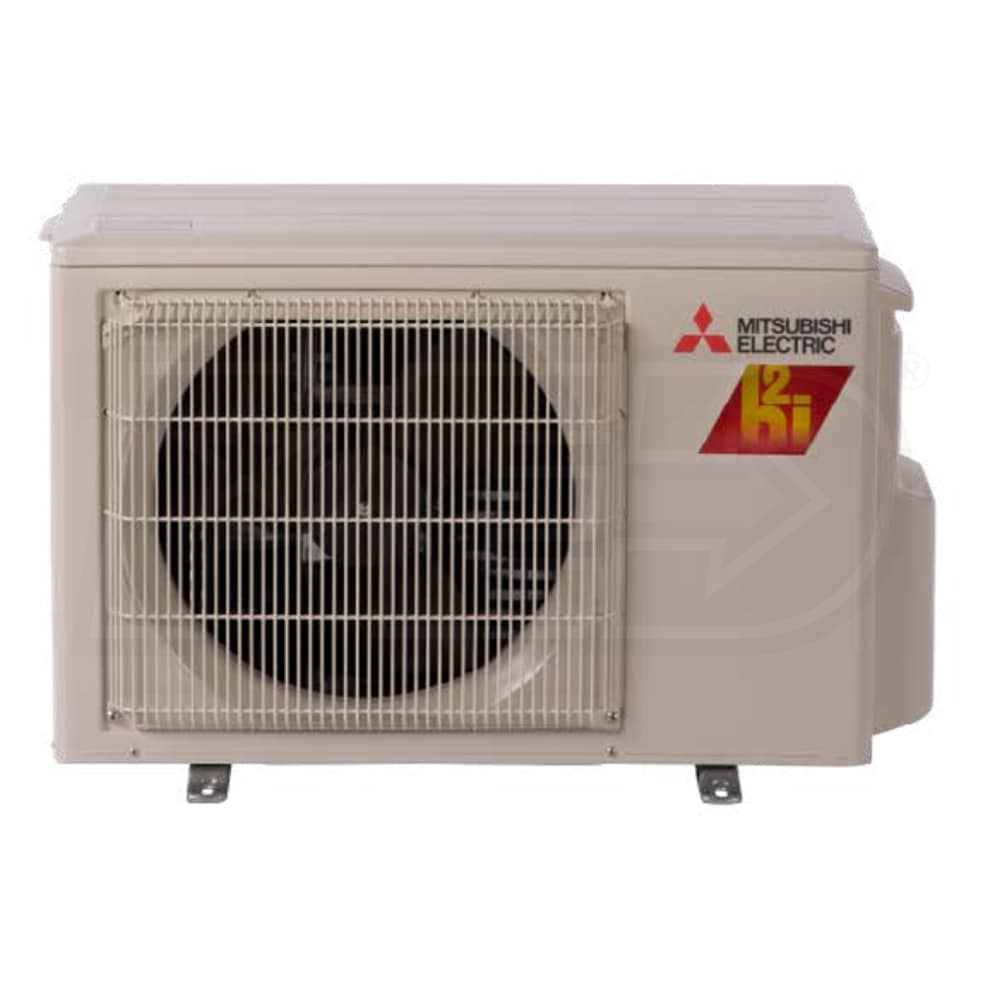

Mitsubishi Electric MUZ-GX15NLHZ-U1 H2i Mini Split Condenser Outdoor Unit 1.25 Ton

Product Description

The Mitsubishi ELECTRIC MUZ-GX15NLHZ-U1 1.25 Ton H2i Mini Split Condenser Outdoor Unit is a single zone unit that uses R-454B refrigerant. It features blue fin coating, protecting against corrosion from salt, sulfur, and other airborne contaminants. It also has a built-in base pan heater and a DC fan motor.

• Blue Fin Coating protects against corrosion.
• Built-in base pan heater prevents condensate freezing.
• DC Fan Motor ensures efficient operation.

Product Highlights

This mini split condenser provides efficient heating and cooling, even in freezing climates, with its Hyper-Heating INVERTER technology.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX15NLHZ-U1

Technical Specifications

• Refrigerant: R-454B
• Nominal Tons: 1.25 Ton
• Suction Line: 1/2"
• Liquid Line: 1/4"
• EER2: 13
• SEER2: 22.2
• Type: Outdoor Condenser
• Product Line: M-Series H2i
• Product Sub-line: Hyper-Heating
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Cooling BTU: 15000
• Cooling Capacity: 14000 BTU
• Heating Capacity: 14000 BTU
• Maximum Sound Level: 51 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -22 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 16 Amps
• Recommended Breaker Size: 28 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 1/2 Inch
• Product Height: 21 5/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• Product Weight: 82 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
