Mitsubishi Electric MUZ-GX15NLHZ Heat Pump System 15,000 BTU

Product Description

The Mitsubishi Electric MUZ-GX15NLHZ delivers efficient 15,000 BTU heating and cooling. With Hyper-Heat, built-in Wi-Fi, and quiet operation, this ductless system ensures year-round comfort for medium to large spaces. It features a patented Dual Barrier Coating that reduces the collection of contaminants, resulting in optimal airflow and easier maintenance.

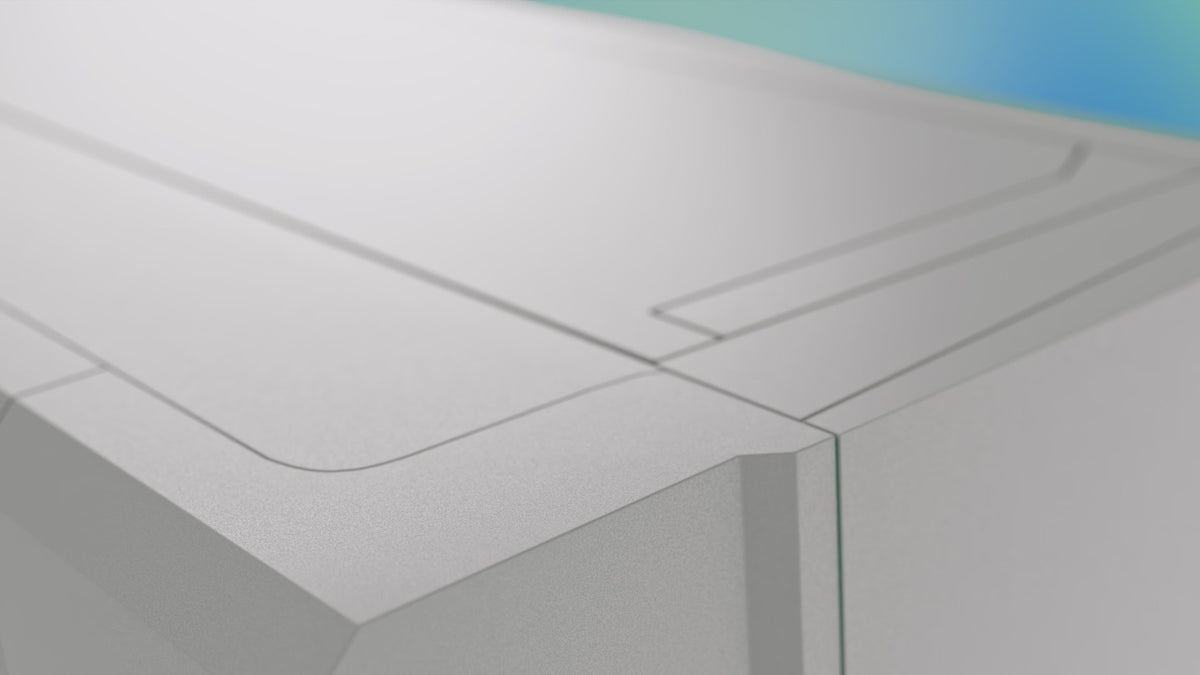

• Features Dual Barrier Coating to reduce contaminant collection.
• Offers multiple fan speed options: Low, Medium, High, Powerful, and Auto.
• Wi-Fi enabled for control over temperature, fan speeds, and schedules via the Comfort app.

Product Highlights

Efficient 15,000 BTU heat pump with Hyper-Heat, Wi-Fi, and quiet operation for year-round comfort.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX15NLHZ

Technical Specifications

• Unit Type: Single Zone
• Product Line: GX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones: 1
• System Capacity: 15,000 BTU
• Line Set Size: 1/4" x 1/2"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes

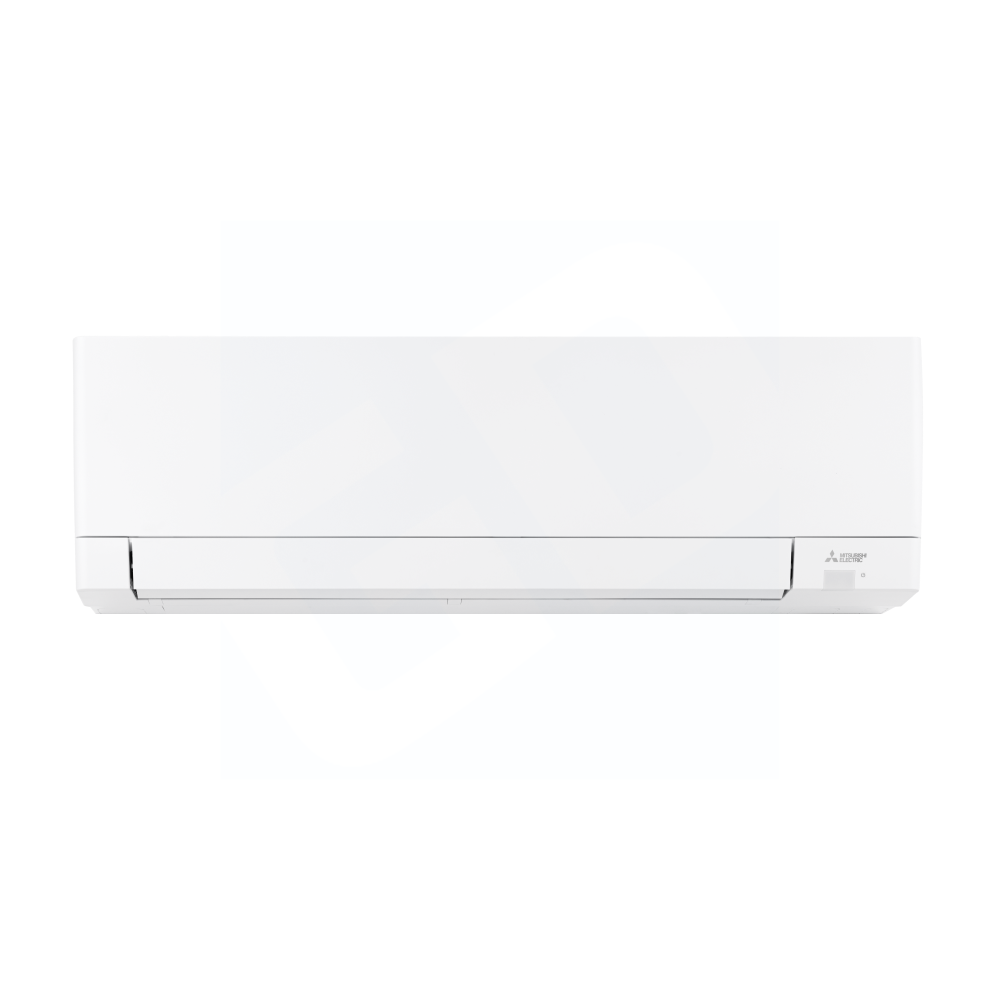

• Indoor Unit: MSZ-GX15NL

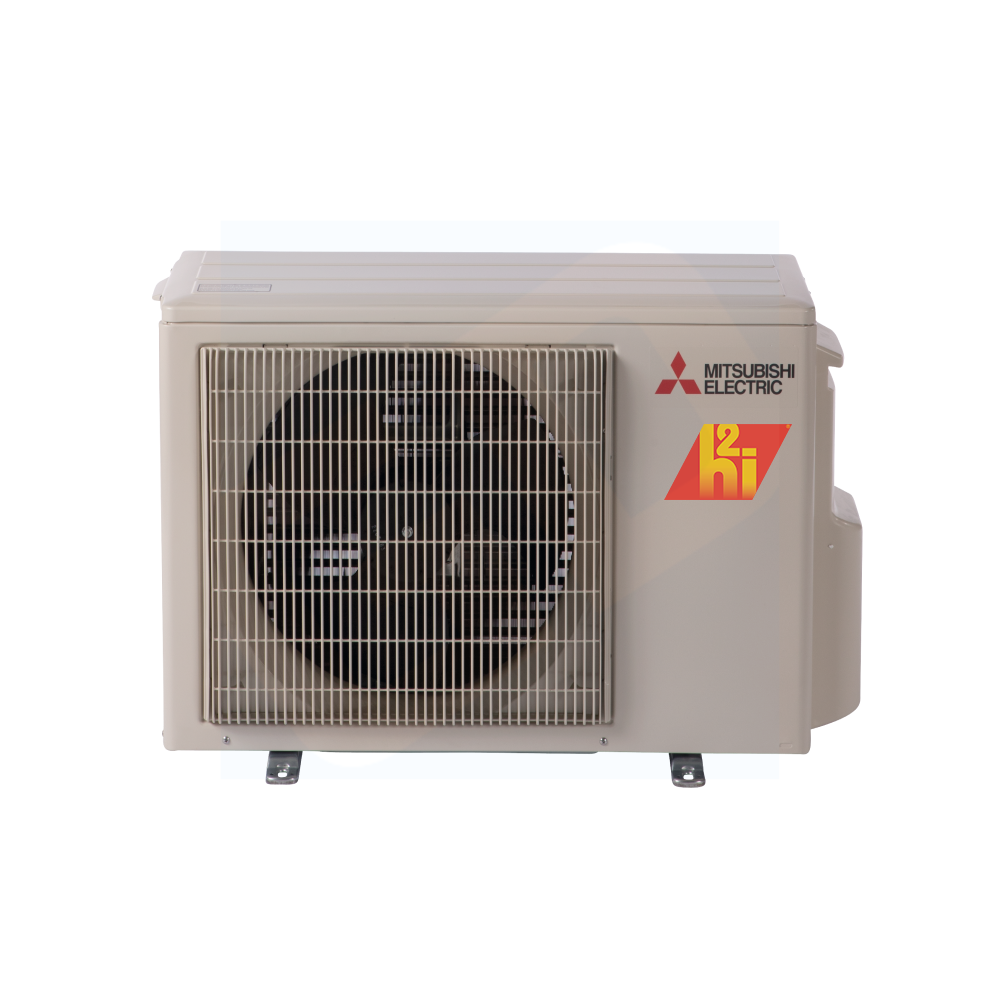

• Outdoor Unit: MUZ-GX15NLHZ
• Remote Controller Included: Yes
• Cooling Capacity up to: 18,200 BTU
• Heating Capacity up to: 21,000 BTU
• SEER2: 22.2
• EER2: 13
• HSPF2: 10
• Heating Minimum Temp: -34 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity up to: 650 sq ft
• Airflow Cooling CFM, Dry: 219-293-369-465-586
• Airflow Cooling CFM, Wet: 197-264-333-418-528
• Airflow Heating CFM, Dry: 219-266-331-408-516
• Noise Level dB(A), Cooling: 26-32-38-44-51
• Noise Level dB(A), Heating: 26-30-35-40-46
• Voltage: 208/230 V
• Amperage: 16 A
• Wattage: 950 W
• Frequency: 60 Hz
• Phase: 1 ph
• Heating Capacity: 4300 to 21000 Btu/hr
• Cooling Capacity: 2800 to 18200 Btu/hr
• Refrigerant: R-454B
• Liquid Line: 1/4 in
• Suction Line: 1/2 in
• Fuse Rating: 20 A
• Heating Sound Level: 51 dBA
• Cooling Sound Level: 49 dBA
• Series: MSZ-GX-NL Series
