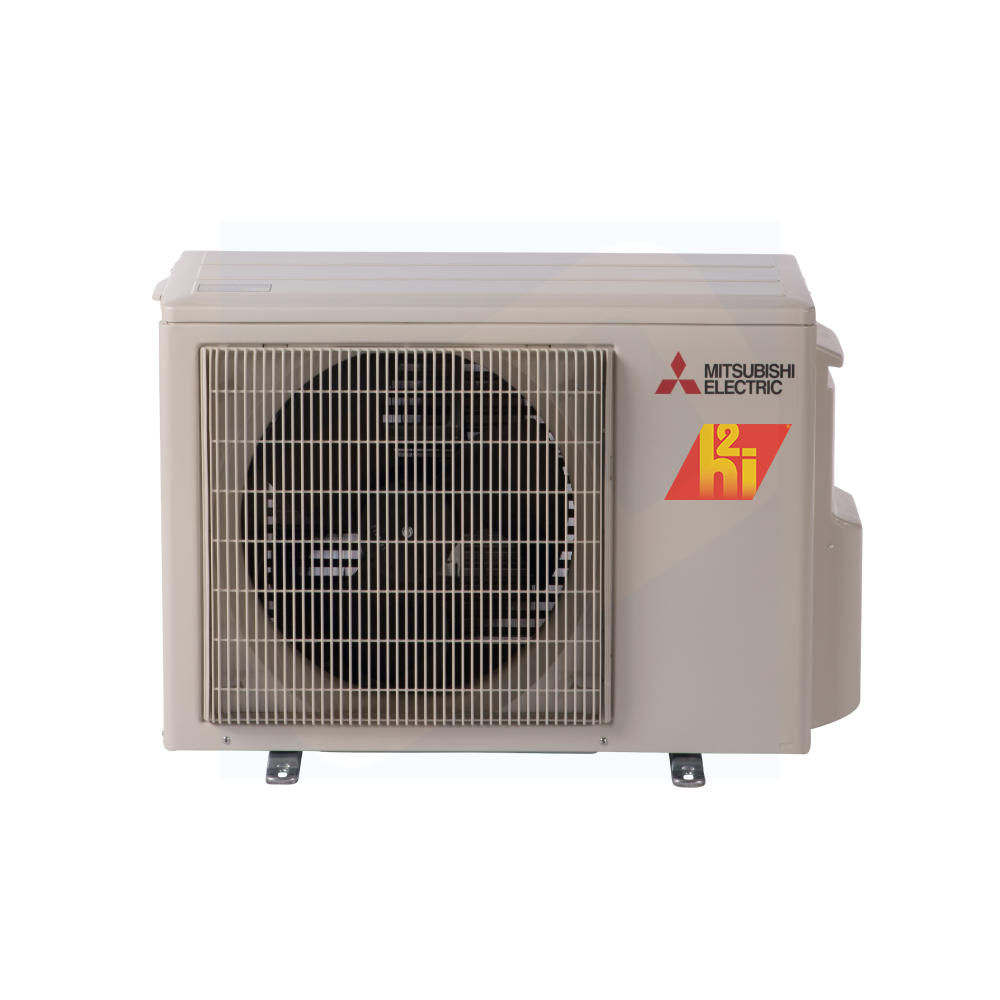

Mitsubishi Electric MUZ-GX12NLHZ-U1 Heat Pump Outdoor Unit 12,000 BTU

Product Description

The Mitsubishi Electric MUZ-GX12NLHZ-U1 is a 12,000 BTU Hyper-Heating outdoor unit providing efficient heating down to -13°F and quiet cooling. Compact and reliable, it pairs with MSZ-GX indoor units for smart, year-round single-zone comfort. Operates at 208/230V and has a SEER2 rating of 25.6.

• Anti-corrosion treatment protects against salt, sulfur, and other airborne contaminants.
• Features a built-in base pan heater and DC fan motor.
• Provides 100% heating capacity down to 5° F with guaranteed heating down to -22° F.

Product Highlights

The Mitsubishi Electric MUZ-GX12NLHZ-U1 is a reliable and efficient heat pump for year-round comfort.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX12NLHZ-U1

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: GX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• System Capacity: 12,000 BTU
• Line Set Size: 1/4" x 3/8"
• Cooling Capacity: up to 14,000 BTU
• Heating Capacity: up to 19,100 BTU
• BTU Cooling Rating: 12,000 BTU/h
• BTU Heating Rating: 12,300 BTU/h
• Compressor Type: Rotary
• Depth: 11.25 in
• EER2: 13.35
• ENERGY STAR Certified: Yes
• HSPF2: 10.0
• Height: 21.625 in
• Liquid Line Size: 1/4 in
• Max Breaker Size: 20 A
• Model Number: MUZ-GX
• Number of Stages: Inverter
• Number of Zones: 1
• Phase: 1 ph
• Product Family: MUZ-GX Series
• Product Type: Heat Pump
• Refrigerant Type: R-454B
• SEER2: 25.6
• Sound Level: 51 dB(A)
• Suction Line Size: 3/8 in
• Tonnage: 1.0 Ton
• Voltage Rating: 208/230 V
• Width: 31.5 in
• Room Cooling/Heating Capacity: up to 500 sq ft
