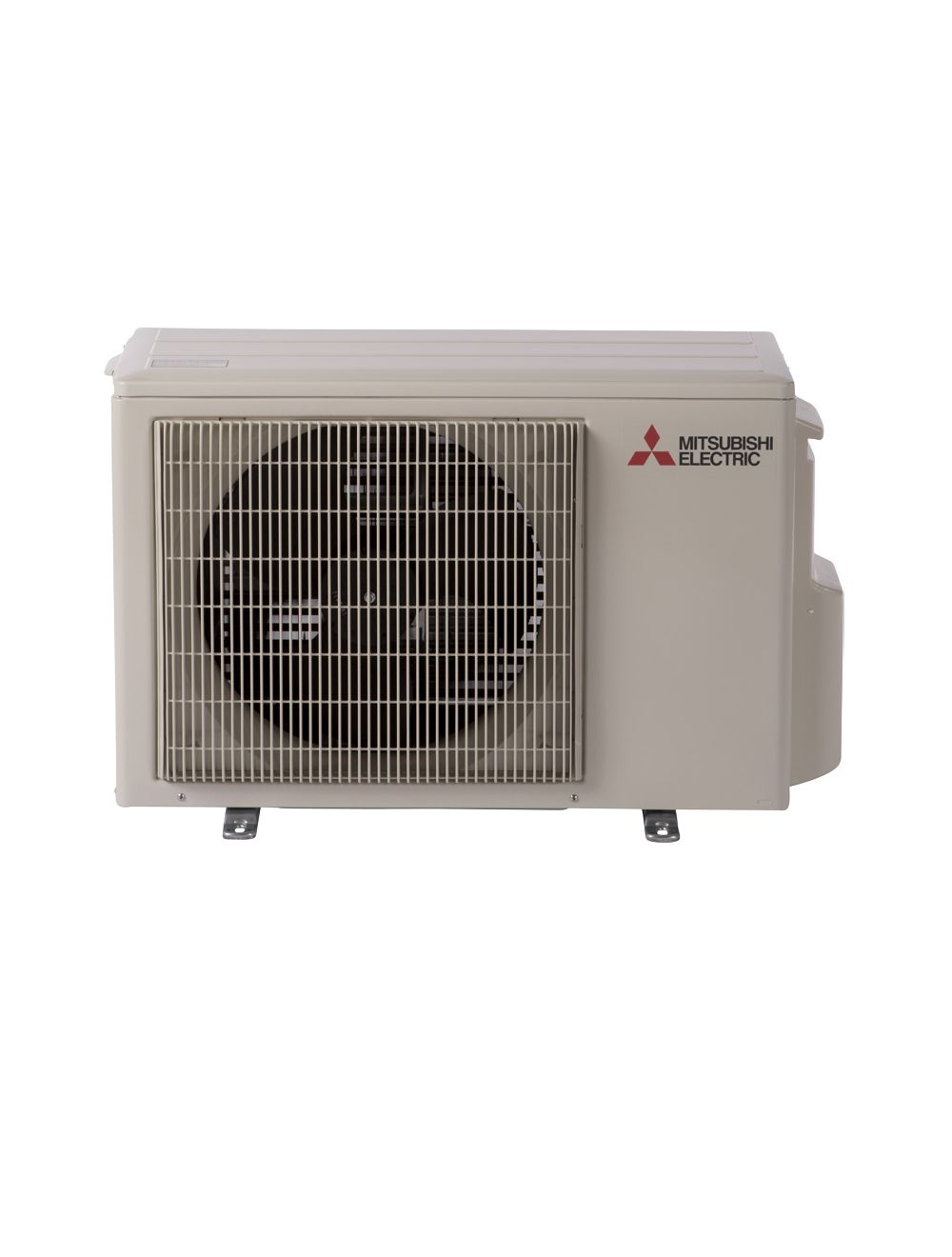

Mitsubishi Electric MUZ-GX12NL R454B 12,000 BTU Heat Pump Condenser

Product Description

The Mitsubishi Electric MUZ-GX12NL is an R454B 12,000 BTU heat pump condenser designed for single-zone mini split applications. It provides efficient ductless heating and cooling, featuring inverter technology for precise temperature control and energy savings. The condenser is coated with an anti-rust finish for extended lifespan and quiet operation.

• Equipped with inverter technology and an electronic linear expansion valve for improved temperature accuracy.
• Features a Blue Fin condenser coating to protect against corrosion.
• Operates with R-454B refrigerant.

Product Highlights

This outdoor condenser offers precise temperature control, energy-efficient operation, and durable construction for reliable heating and cooling.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX12NL

Technical Specifications

• Series: M-Series
• Type: Outdoor Condenser
• Product Line: GX-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Base Pan Heater Included: No
• Cooling BTU: 12000 BTU
• Cooling Capacity: 12000 BTU
• Heating Capacity: 14400 BTU
• Maximum Sound Level: 51 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 12 Amps
• Recommended Breaker Size: 21 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• Shipping Weight: 84 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Sound level: As low as 48 dB(A)
• SEER2: Up to 28.4
• HSPF2: Up to 11
• ENERGY STAR: Yes
• BTU Cooling Rating: 12,000 BTU/h
• BTU Heating Rating: 14,400 BTU/h
• Compressor Type: Rotary
• Depth: 11.25 in
• Height: 21.625 in
• Number of Stages: Inverter
• Number of Zones: 1
• Packaged Depth: 15 in
• Packaged Height: 24.5 in
• Packaged Width: 37 in
• Product Family: MUZ-GX Series
• Product Type: Heat Pump
• Tonnage: 1.0 Ton
• Voltage Rating: 208/230 V
