Mitsubishi Electric MUZ-GX09NLHZ 9,000 BTU GX-Series 28.4 SEER2 Single Zone Wall Mount Mini Split Hyper Heat Pump System

Product Description

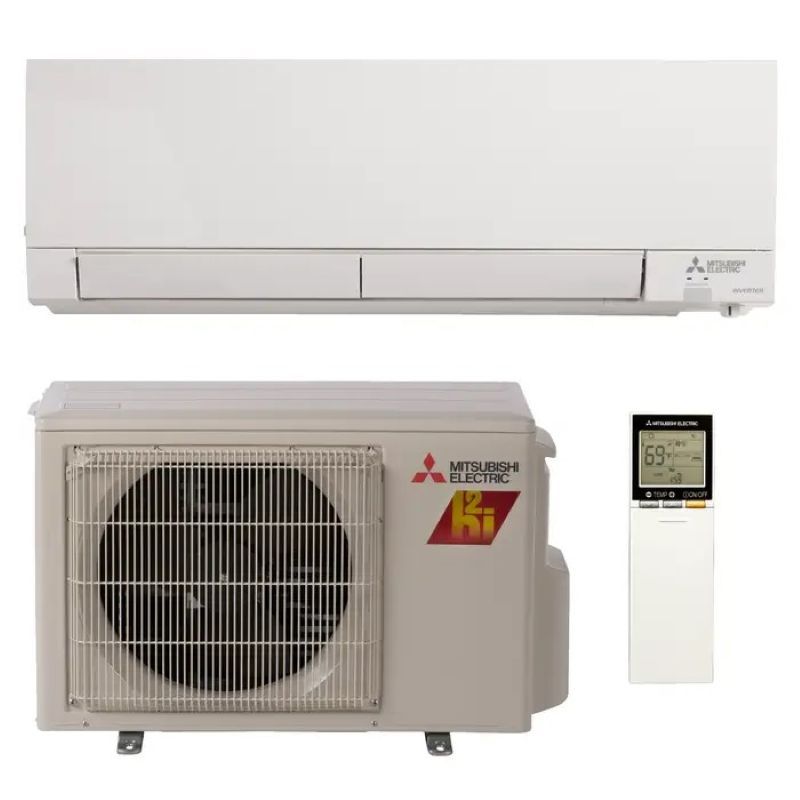

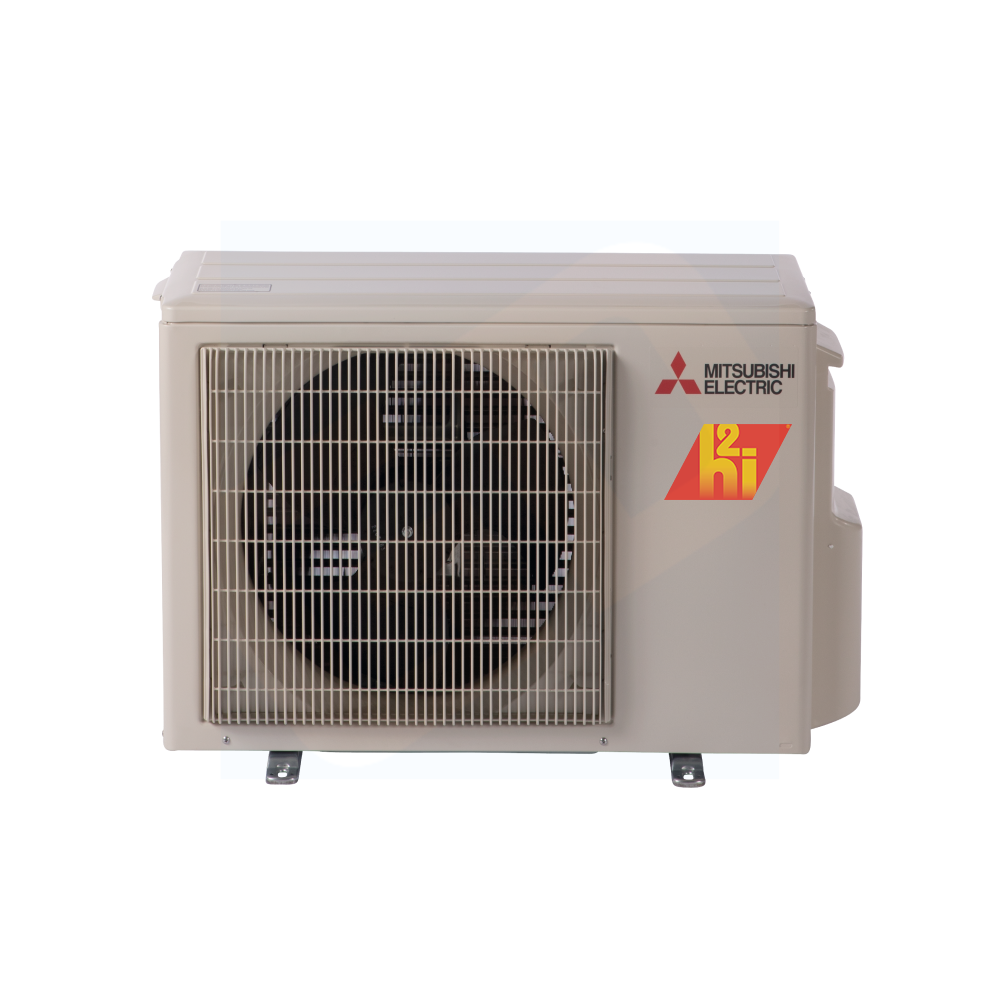

The Mitsubishi Electric MUZ-GX09NLHZ is a 9,000 BTU GX-Series Mini Split Hyper Heat Pump System with a 28.4 SEER2 rating. This system delivers consistent heating, even in cold climates, while maintaining energy efficiency. The MSZ-GX09NL indoor air handler pairs with the MUZ-GX09NLHZ outdoor unit for high performance in small rooms, bedrooms, offices, or add-on spaces.

• Maintains reliable heating performance even in low outdoor temperatures.
• Offers exceptional energy savings with a 28.4 SEER2 efficiency rating.
• Uses R454B refrigerant that supports environmental standards.

Product Highlights

Ideal for spot heating and cooling, this system features an inverter-driven compressor and smart control options for convenience and programmability.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX09NLHZ

Technical Specifications

• SKU: MUZ-GX09NLHZ
• Brand/Manufacturer: Mitsubishi
• Replaces: MUZ-GS09NAHZ-U1
• Cooling BTU: 12200
• Heating BTU: 15900
• Decibel Level (dBA): 50
• Refrigerant: R454B
• SEER2 (Efficiency): 28.4
• Compressor Type: Rotary
• Liquid Valve Size: 1/4
• Suction Valve Size: 3/8
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 21
• Min. Breaker Size: 12
• BTU/Tonnage: 9,000 BTU/0.75 Ton
• Zone Compatibility: Single Zone
• Unit Type: Outdoor Unit
• Product Line: GX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• System Capacity: 9,000 BTU
• Line Set Size: 1/4" x 3/8"
• Outdoor Unit: MUZ-GX09NLHZ
• Cooling Capacity: 3200 to 12200 Btu/hr
• Heating Capacity: 3300 to 15900 Btu/hr
• Room Cooling/Heating Capacity: up to 350 sq ft
• Series: MSZ-GX-NL
• Voltage: 208/230 V
• Amperage: 12 A
• Wattage: 650 W
• Frequency: 60 Hz
• Phase: 1 ph
• Heating CFM Rating: 1163 cfm
• Cooling CFM Rating: 1177 cfm
• EER Rating: 13
• SEER: 13
• HSPF: 10
• Liquid Line: 1/4 in
• Suction Line: 3/8 in
• Fuse Rating: 15 A
• Heating Sound Level: 50 dBA
• Cooling Sound Level: 48 dBA
• BTU Cooling Rating: 9,000 BTU/h
• BTU Heating Rating: 9,600 BTU/h
• EER2: 15.4
• ENERGY STAR Certified: Yes
• HSPF2: 10.2
• Model Number: MUZ-GX
• Number of Stages: Inverter
• Number of Zones: 1
• Product Family: MUZ-GX Series
• Product Type: Heat Pump
• Refrigerant Type: R-454B
• Sound Level: 50 dB(A)
• Tonnage: 0.75 Ton
