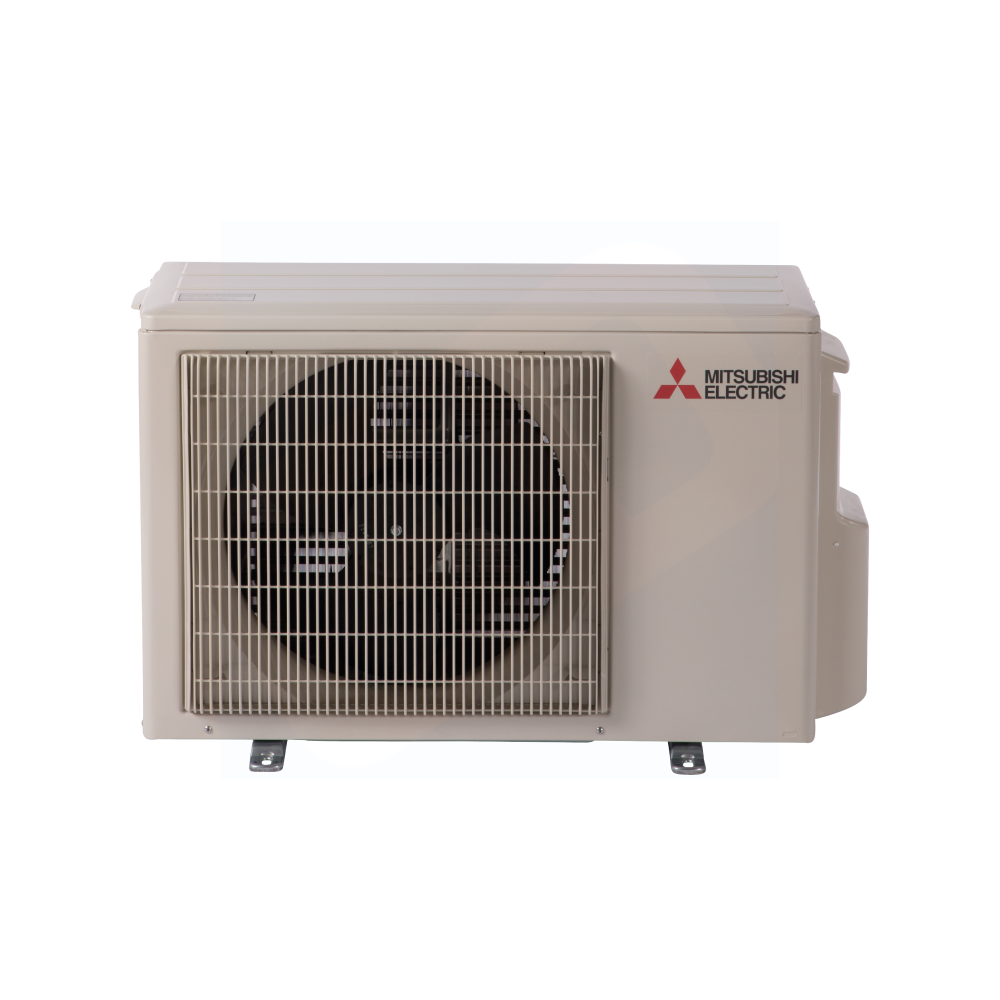

Mitsubishi Electric MUZ-GX09NL-U1 GX-Series Heat Pump Condenser 9,000 BTU REPLACEMENT MUZ-GS09NA-U1

Product Description

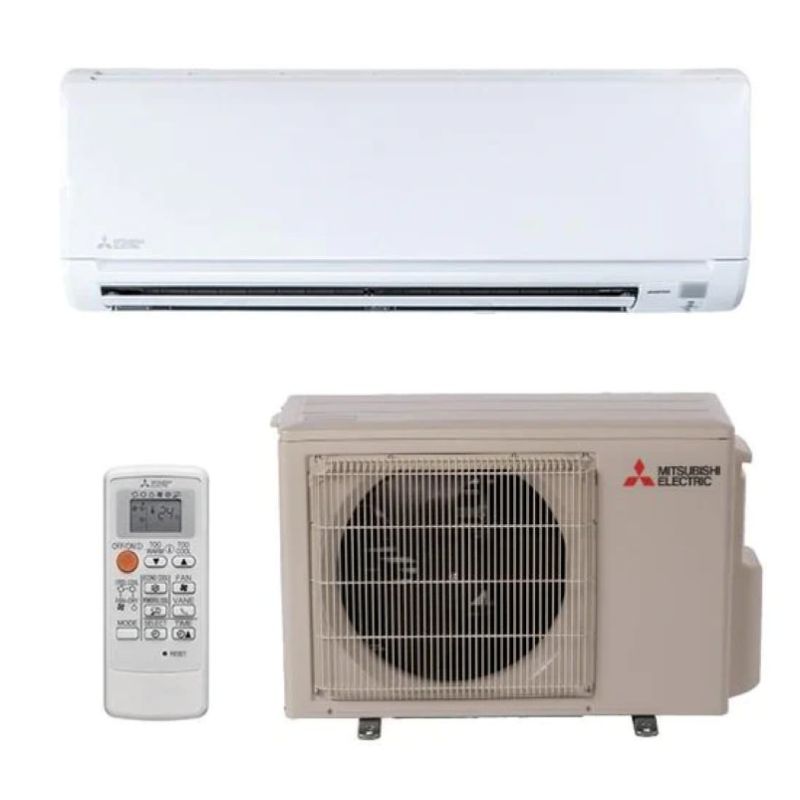

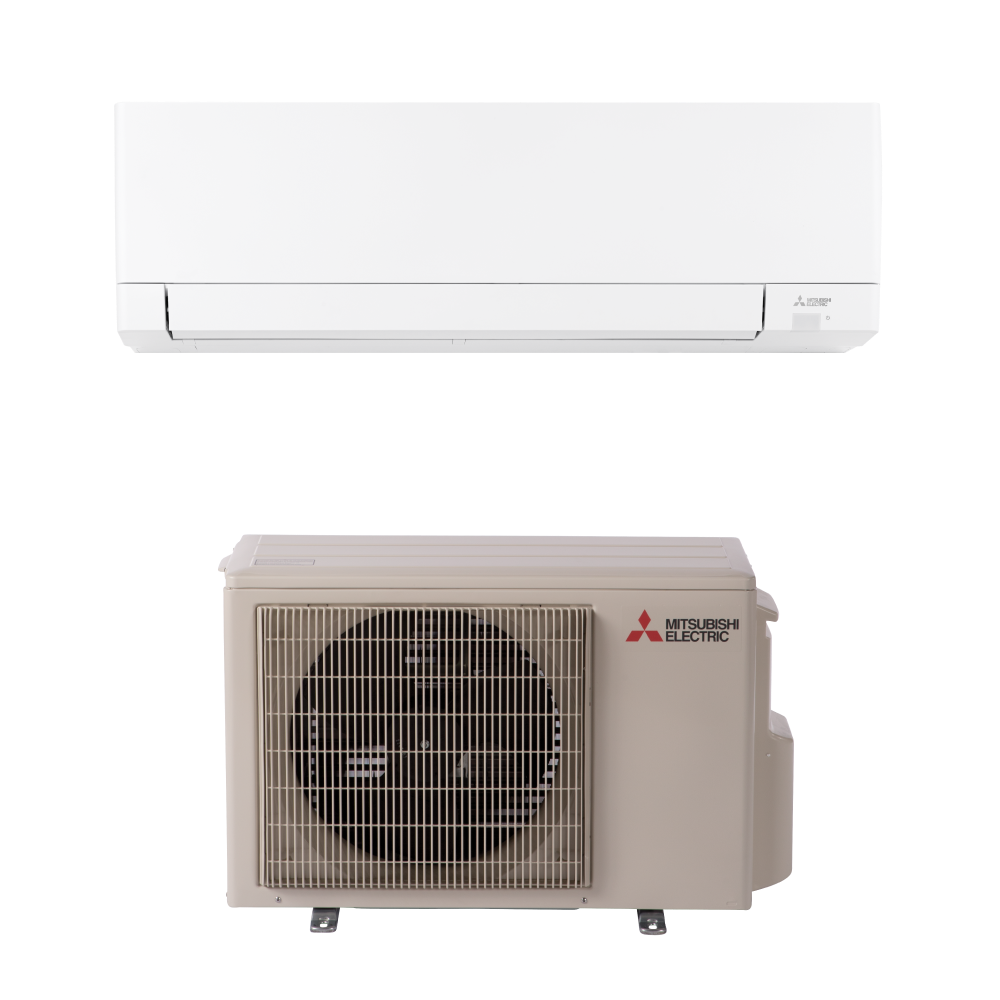

The Mitsubishi Electric MUZ-GX09NL-U1 is a 9,000 BTU GX-Series mini split heat pump system. Designed for bedrooms, offices, or small living areas, this system offers a SEER2 rating of 28.4. Engineered with inverter technology and R454B refrigerant, it provides temperature control while keeping energy costs in check.

• Ultra-High 28.4 SEER2 Efficiency
• R454B Refrigerant
• Inverter-Driven Compressor

Product Highlights

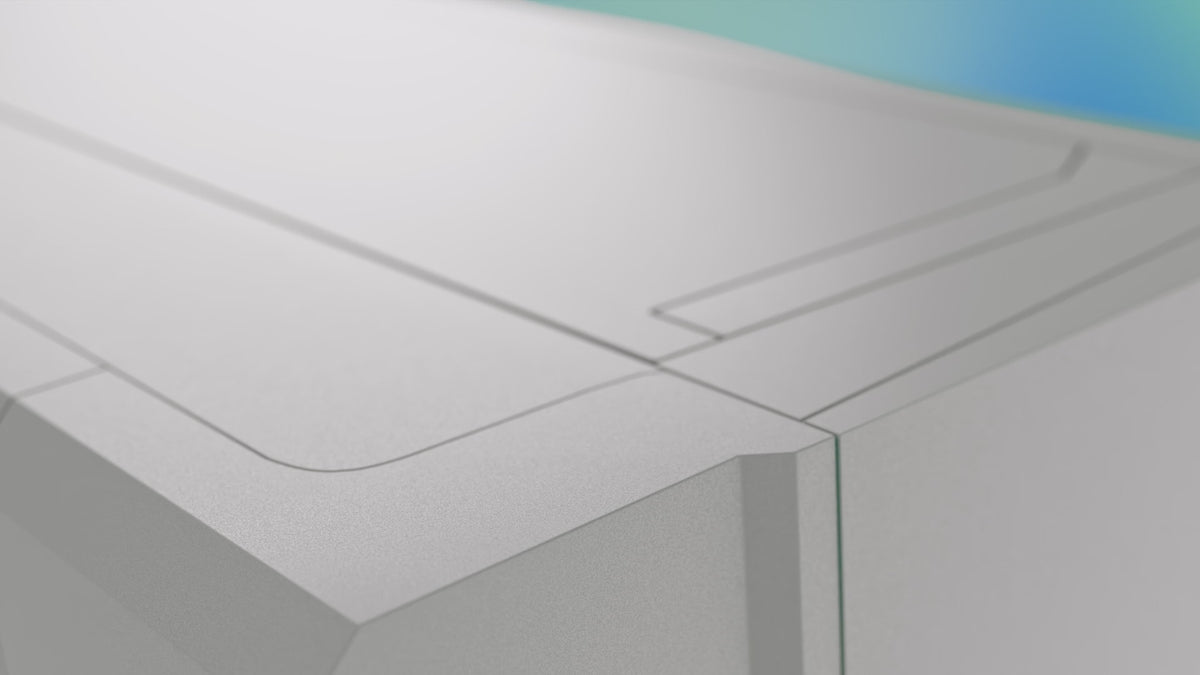

This Mitsubishi Electric heat pump system delivers efficient heating and cooling with quiet operation and a sleek, wall-mounted design.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX09NL-U1

Technical Specifications

• SKU: MUZ-GX09NL
• Brand/Manufacturer: Mitsubishi
• Replaces: MUZ-GS09NA-U1
• Cooling BTU: 12200
• Heating BTU: 15900
• Decibel Level (dBA): 50
• Refrigerant: R-454B
• SEER2 (Efficiency): 28.4
• Compressor Type: Twin Rotary
• Liquid Valve Size: 1/4
• Suction Valve Size: 3/8
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 21
• Min. Breaker Size: 12
• BTU/Tonnage: 9,000 BTU/0.75 Ton
• Zone Compatibility: Single Zone
• Height: 11.78"
• Width: 31.40"
• Depth: 9.6"

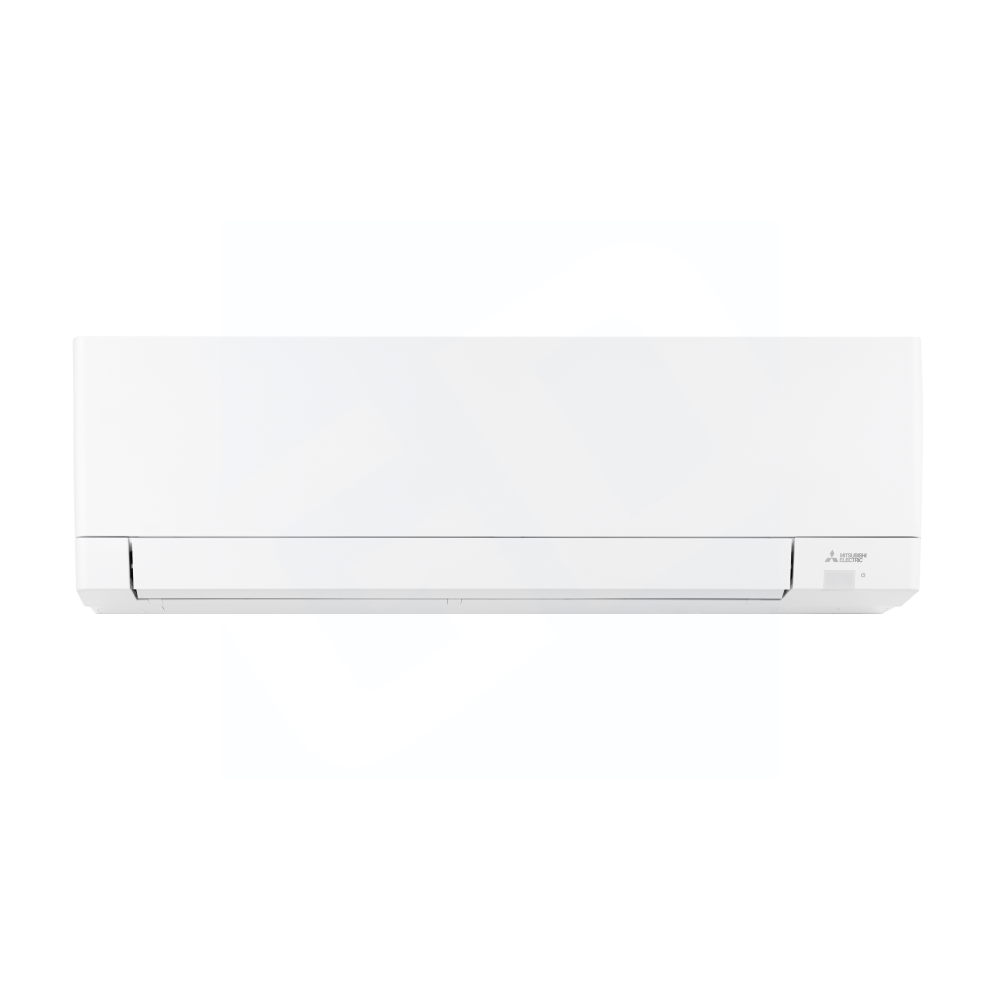

• Air Handler SKU: MSZ-GX09NL
• Air Handler Weight (in lbs): 26.000000
• Air Handler Decibel Level (dBA): 19-43
• Air Handler HSPF2: 10.9
• Air Handler Mini Split Type: Wall Mounted
• Air Handler Zone Compatibility: Multi Zone
• Air Handler Height: 11-5/8"
• Air Handler Width: 9-1/8"
• Air Handler Depth: 31-7/16"
• Product Type: Outdoor Unit
• Voltage: 208/230V
• Application: Heating Cooling
• Number of Zones: 1
• Energy Star Rated: Yes
• Cooling Capacity (BTU): 9000
• Heating Capacity (BTU): 10900
• Refrigerant Type: R454B
• Unit Type: Single Zone
• Product Line: GX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Standard
• System Capacity: 9,000 BTU
• Line Set Size: 1/4" x 3/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: MSZ-GX09NL
• Outdoor Unit: MUZ-GX09NL
• Remote Controller Included: None
• Cooling Capacity up to: 12,200 BTU
• Heating Capacity up to: 15,900 BTU
• EER2: 15.4
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity up to: 350 sq ft
• Airflow Cooling CFM, Dry: 151-172-256-353-448
• Airflow Cooling CFM, Wet: 136-154-230-318-403
• Airflow Heating CFM, Dry: 151-172-256-353-448
• Noise Level dB(A), Cooling: 19-22-30-37-43
• Noise Level dB(A), Heating: 19-22-30-37-43
• Size W x D x H: 31-13/32" x 9-21/32" x 11-25/32"
• Nominal Tons: 0.75 Ton
• Suction Line: 3/8
• Liquid Line: 1/4"
