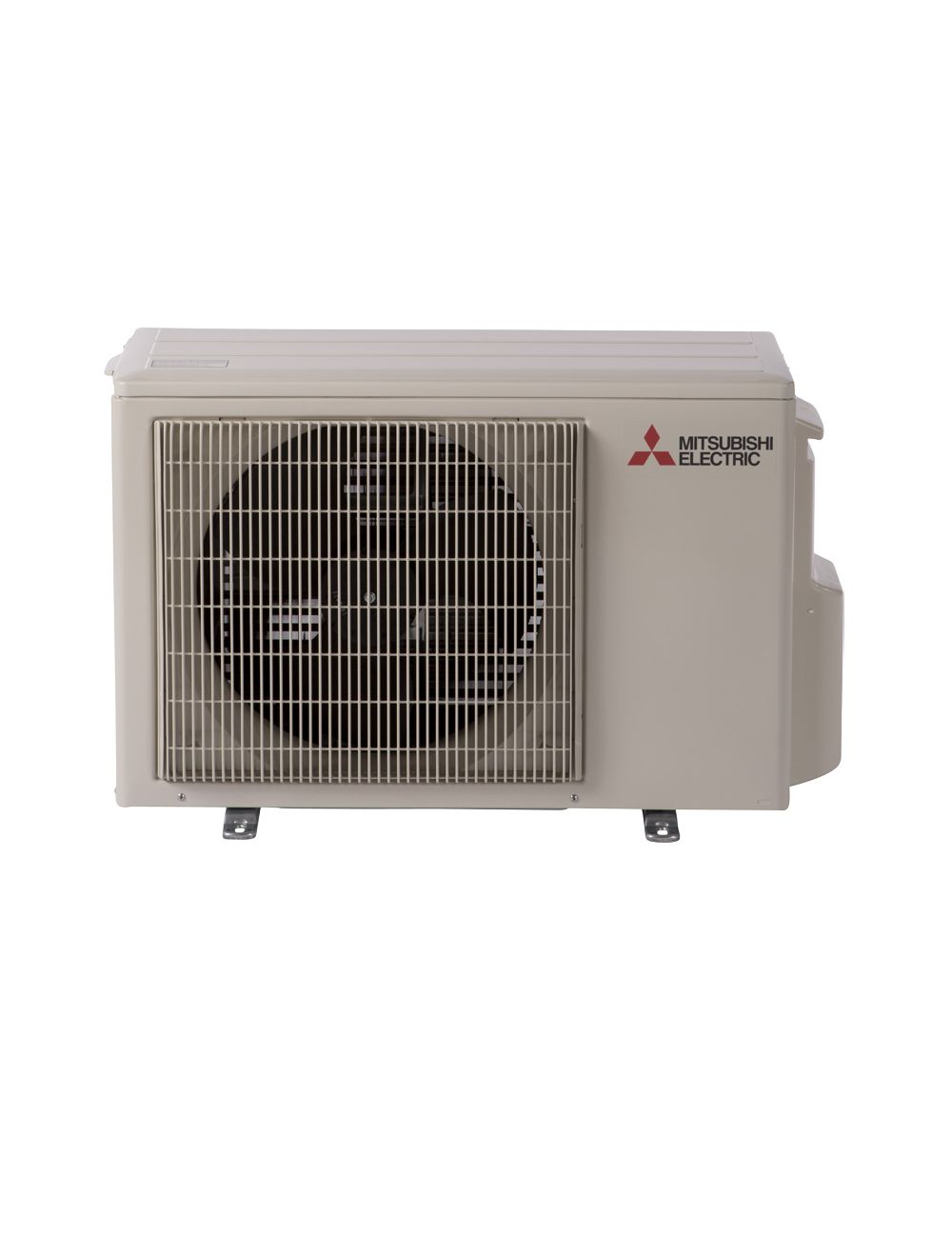

Mitsubishi Electric MUZ-GX09NL R454B 9,000 BTU Heat Pump Condenser

Product Description

The Mitsubishi Electric MUZ-GX09NL is an outdoor condenser for single-zone mini split applications, capable of providing ductless heating and cooling. It features efficiency-boosting inverter technology and quiet operation. The condenser is equipped with an electronic linear expansion valve for improved temperature accuracy and system efficiency. It also features an anti-rust coating to extend its lifespan.

• Equipped with inverter technology and an electronic linear expansion valve.
• Features an anti-rust coating to extend its lifespan.
• Designed for single-zone mini split applications.

Product Highlights

This outdoor condenser provides efficient and precise temperature control for single-zone heating and cooling systems.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GX09NL

Technical Specifications

• MPN: MUZ-GX09NL
• Brand: MITSUBISHI ELECTRIC
• BTU: 9,000
• Type: Outdoor Condenser
• Product Line: GX-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Base Pan Heater Included: No
• Cooling BTU: 9000
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• Maximum Sound Level: 50 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 12 Amps
• Recommended Breaker Size: 21 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• Shipping Weight: 84 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• SEER2: Up to 28.4
• HSPF2: Up to 11
• ENERGY STAR: Yes
