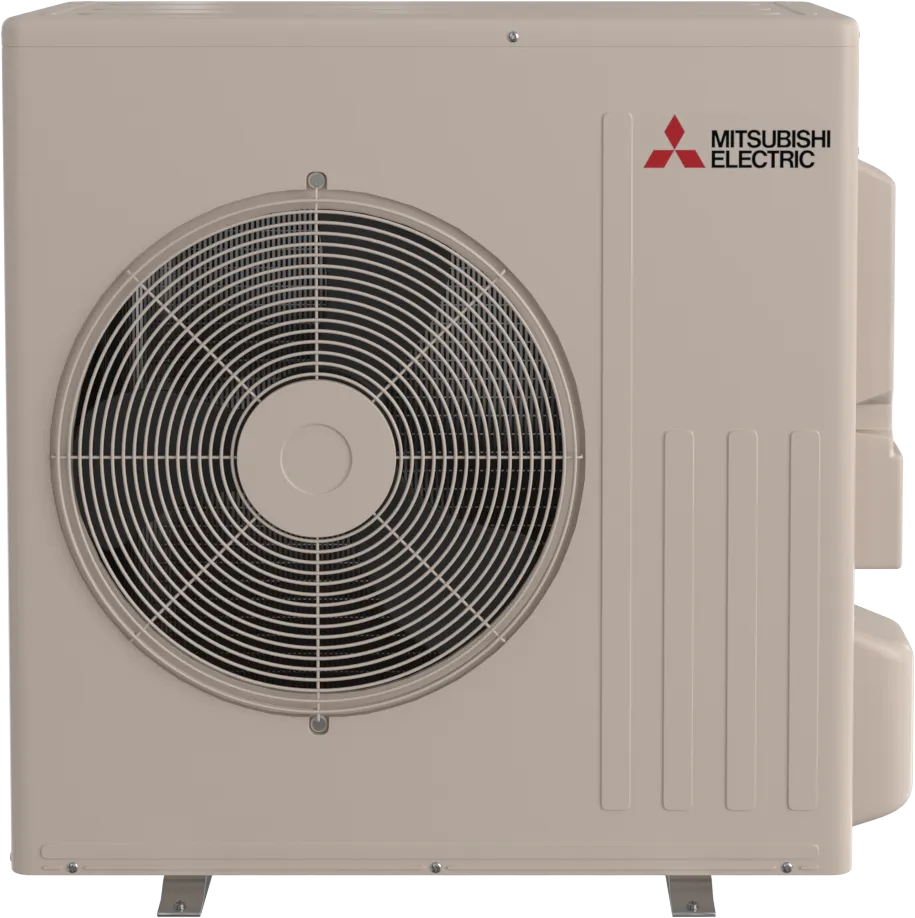

Mitsubishi Electric MUZ-GS09NA-U1 Outdoor Unit 9000 BTU

Product Description

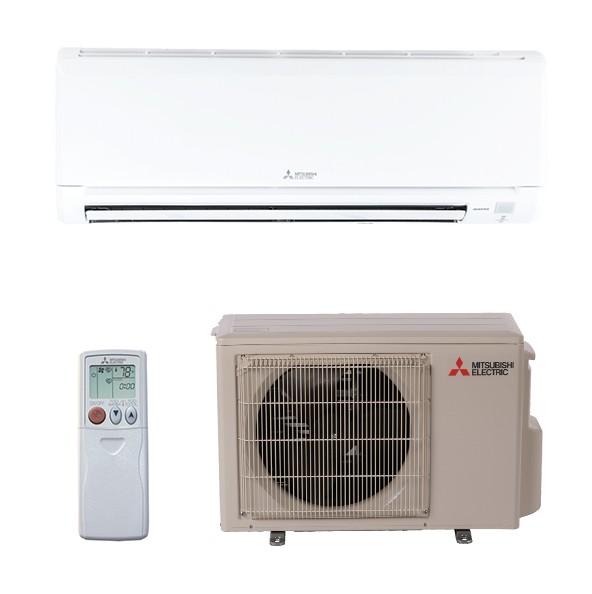

The Mitsubishi Electric MUZ-GS09NA-U1 is a single-zone heat pump outdoor unit. Designed for use with a compatible indoor unit, this system provides efficient heating and cooling. It features a Blue Fin anti-corrosion coating on the heat exchanger for increased coil protection and extended lifespan. The unit operates at 208/230 V and includes an inverter-driven compressor.

• Requires a compatible indoor unit for functionality.
• Features Blue Fin anti-corrosion coating for extended lifespan.
• Equipped with an inverter-driven compressor for optimal performance.

Product Highlights

Efficient single-zone heat pump with anti-corrosion coating and inverter-driven compressor.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-GS09NA-U1

Technical Specifications

• Series: M-Series
• Type: Outdoor Condenser
• Product Line: GS-Series
• Product Category: Mini Split System Components
• Model: MUZ-GS
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Cooling BTU: 9000
• Heating BTU: 15900
• Maximum Sound Level: 50 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 V
• Phase: 1 ph
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 10 Amps
• Recommended Breaker Size: 15 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• Shipping Weight: 87 Pounds
• ETL Listed: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• SEER2: 28.4
• HSPF2: Up to 9.6
• ENERGY STAR: Yes
• EER: 15.4
• HSPF: 10.9
• Refrigerant: R-410A
• Suction Line: 5/8 in
• Fuse: 15 A
• Heating Sound Level: 50 dBA
• Cooling Sound Level: 48 dBA
• Cooling RPM: 490 rpm Low, 900 rpm Medium, 900 rpm High
• Heating RPM: 610 rpm Low, 860 rpm Medium, 890 rpm High
