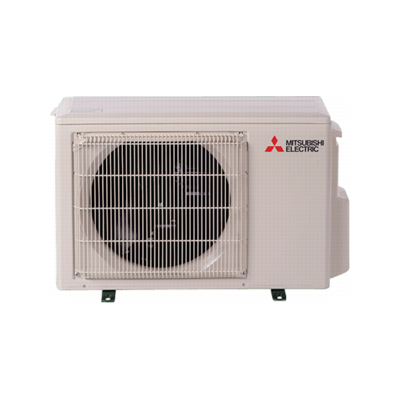

Mitsubishi Electric muz-gl15na-u2 Outdoor Unit 15000 Btu/h

Product Description

The Mitsubishi Electric muz-gl15na-u2 is a single-zone outdoor condensing unit for a ductless mini-split heat pump system. Rated at 15,000 BTU/h with a 21.6 SEER efficiency rating, it operates on 208/230-volt single-phase power. The unit pairs with a compatible Mitsubishi Electric indoor air handler to deliver both heating and cooling. Licensed HVAC technicians install and commission this equipment. It is designed for wall-mount or pad-mount outdoor installation in residential and light-commercial applications.

This outdoor unit is suited for single-zone ductless applications where efficient heating and cooling is needed without ductwork. Typical installations include residential bedrooms, living spaces, additions, sunrooms, and small commercial offices. The unit works in conjunction with a matched Mitsubishi Electric indoor unit to form a complete ductless split system. At 15,000 BTU/h capacity and a 21.6 SEER rating, it targets applications where high efficiency and compact outdoor footprint are priorities.

Key Features

• 15,000 BTU/h cooling and heating capacity for single-zone coverage
• 21.6 SEER efficiency rating for reduced operating costs
• Heat pump operation provides both heating and cooling from one outdoor unit
• 208/230-volt single-phase electrical supply for standard residential and light-commercial service
• Designed for ductless mini-split installation without supply or return ductwork

Compatibility

Designed as an OEM-matched outdoor unit for a Mitsubishi Electric single-zone ductless mini-split system. Pairing with a specific compatible indoor air handler is required for proper system operation; consult Mitsubishi Electric engineering data to confirm matched indoor unit compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation manual. Disconnect and lock out all electrical power before servicing refrigerant or electrical connections. The outdoor unit requires a dedicated circuit sized to the equipment nameplate and must be installed per NEC requirements. Refrigerant handling requires EPA Section 608 certification.

Technical Specifications

• Capacity: 15,000 BTU/h
• SEER: 21.6
• System Type: Heat Pump
• Voltage: 208/230 volts
• Phase: Single Phase
• Configuration: Single Zone Ductless Outdoor Unit

Standard Information

• Brand: Mitsubishi Electric
• Manufacturer Part Number: muz-gl15na-u2
