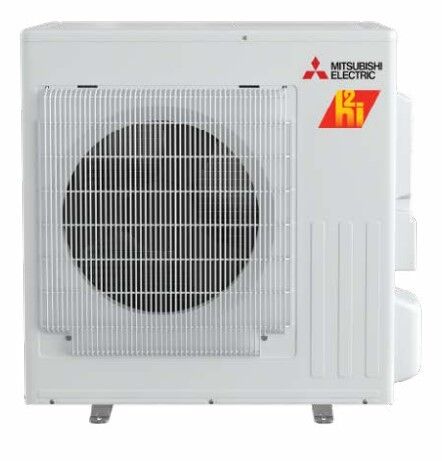

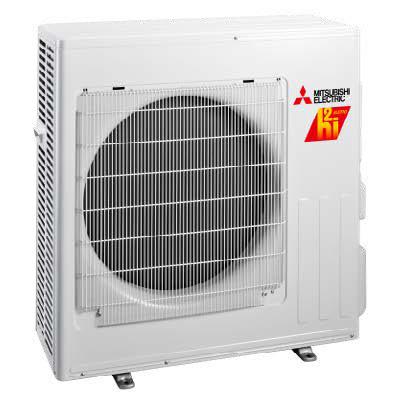

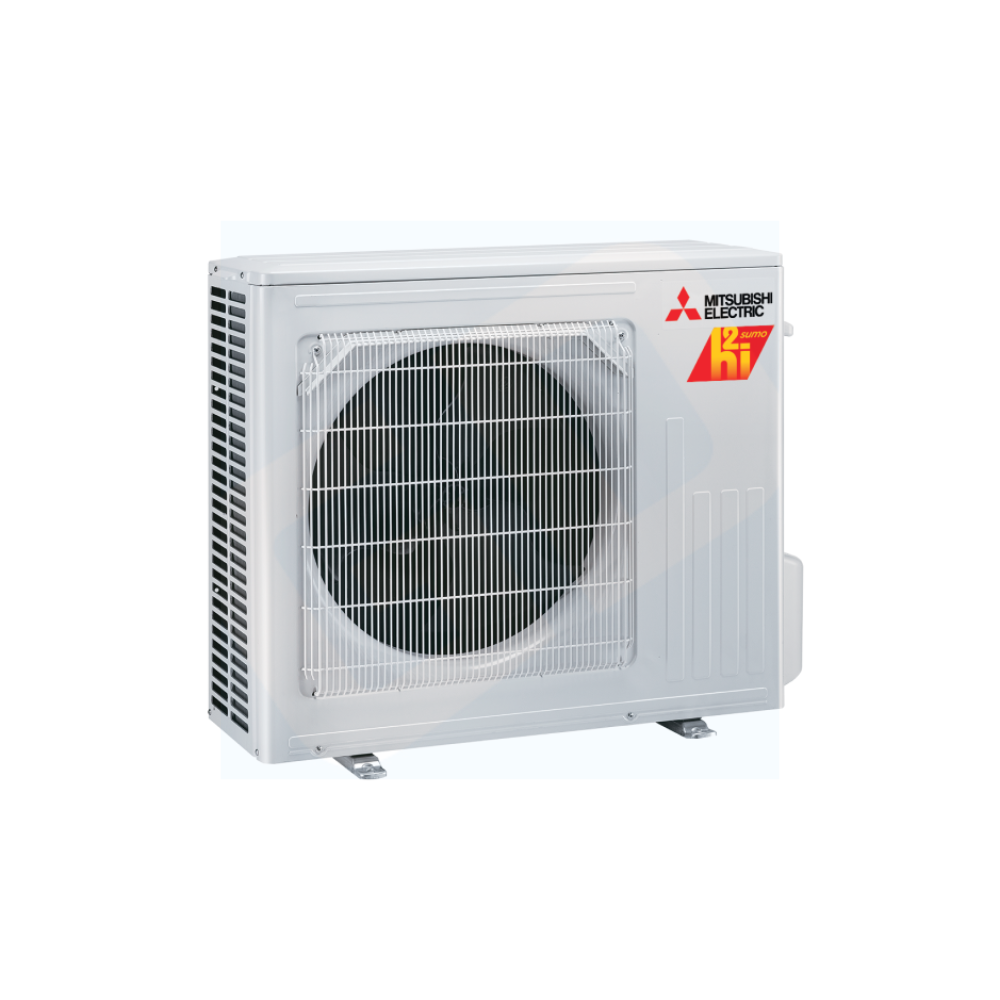

Mitsubishi Electric MUZ-FX24NLHZ-U1 Heat Pump 24,000 BTU Outdoor Unit

Product Description

The Mitsubishi Electric MUZ-FX24NLHZ-U1 is a 24,000 BTU Hyper-Heating outdoor unit, offering heating down to -13 °F and efficient cooling. Designed for pairing with MSZ-FX indoor units, it provides year-round single-zone comfort in large spaces. Ideal for climates needing both heating and cooling, this unit uses R-454B refrigerant.

• Blue Fin Coating protects against corrosion from salt, sulfur, and other airborne contaminants.
• H2i sumo Hyper-Heating INVERTER maintains 100% heating capacity at -10° F and operates down to -22° F.
• Hot-start technology prevents cold air blasts at start-up.

Product Highlights

Provides reliable heating and cooling with anti-corrosion coating and hyper-heating technology.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-FX24NLHZ-U1

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: FX Series
• Operating Mode: Heating and Cooling
• Low Ambient Heat: Yes
• System Capacity: 24,000 BTU
• Line Set Size: 1/4" x 5/8"
• Outdoor Unit: MUZ-FX24NLHZ-U1
• Cooling Capacity: up to 26,500 BTU
• Heating Capacity: up to 36,200 BTU
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• Brand: Mitsubishi
• Refrigerant: R-454B
• Zones: Single-Zone
• Nominal Tons: 2 Ton
• Suction Line: 5/8"
• Liquid Line: 1/4"
