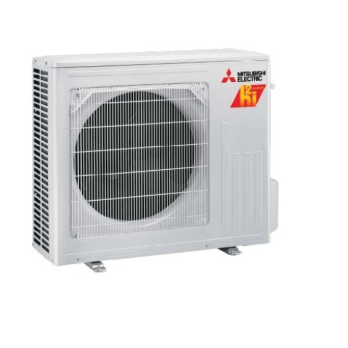

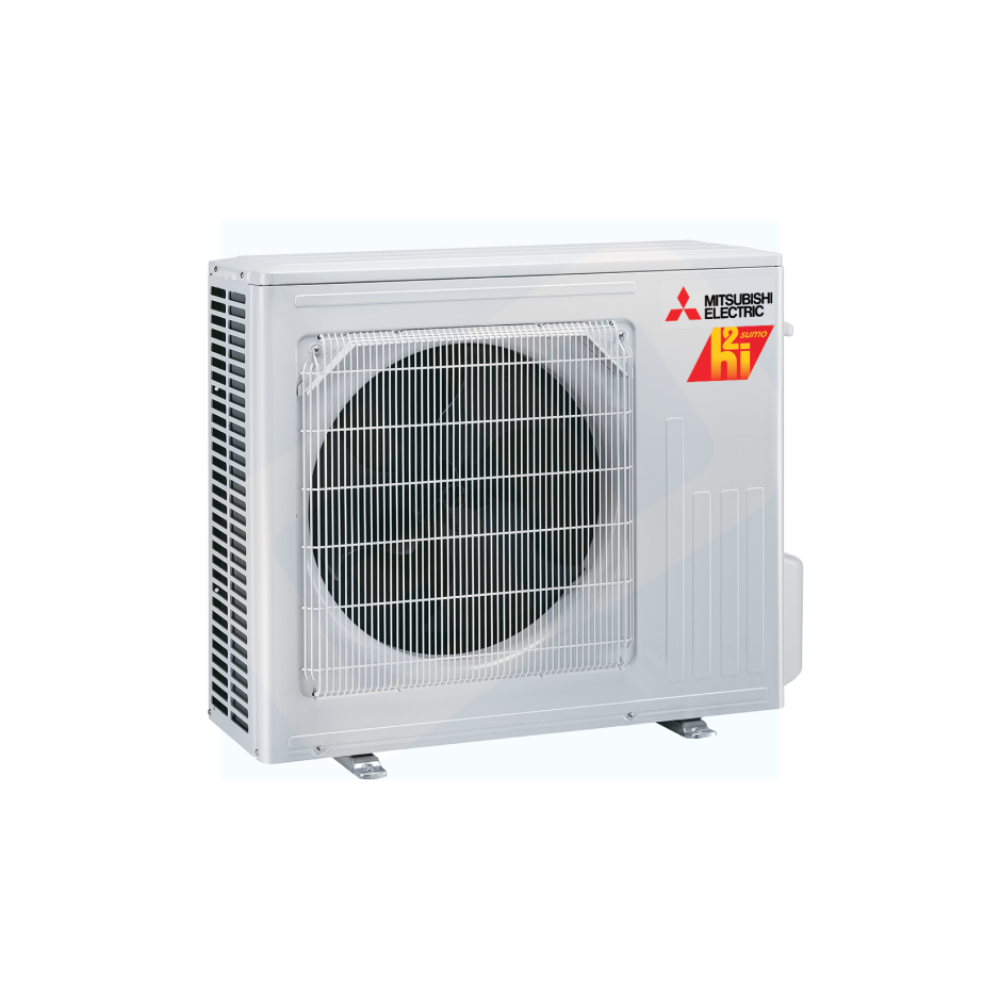

Mitsubishi Electric MUZ-FX24NLHZ Heat Pump Outdoor Unit 24,000 BTU

Product Description

The Mitsubishi MUZ-FX24NLHZ-U1 is a 24,000 BTU Hyper-Heating outdoor unit that provides heating down to -13°F and efficient cooling. Designed to pair with MSZ-FX indoor units, it delivers year-round single-zone comfort in large spaces. It utilizes R454B refrigerant and operates at 208/230V/1P.

• Blue Fin Coating protects against corrosion from salt, sulfur, and other airborne contaminants.
• H2i sumo™ Hyper-Heating INVERTER maintains 100% heating capacity at -10° F and operates down to -22° F.
• Hot-start technology prevents cold air blasts at start-up by only blowing air when the heat exchanger is warm.

Product Highlights

This Mitsubishi Electric outdoor unit offers both heating and cooling capabilities, ensuring comfort in various climates. It is designed for efficient and reliable performance.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-FX24NLHZ

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: FX Series
• Operating Mode: Heating and Cooling
• Low Ambient Heat: Yes
• System Capacity: 24,000 BTU
• Line Set Size: 1/4" x 5/8"
• Outdoor Unit: MUZ-FX24NLHZ-U1
• Cooling Capacity: up to 26,500 BTU
• Heating Capacity: up to 36,200 BTU
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• BTU/h: 24,000
• Voltage: 208/230V/1P
• Refrigerant: R454B
