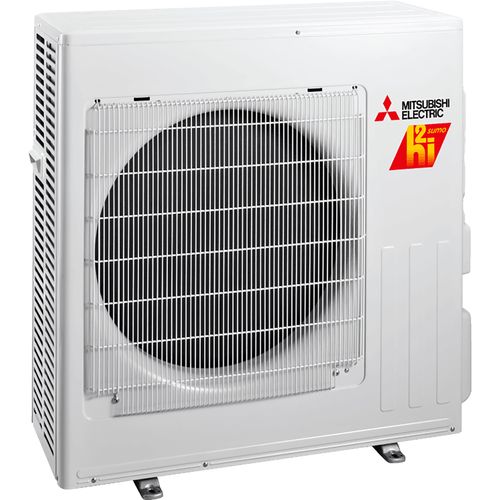

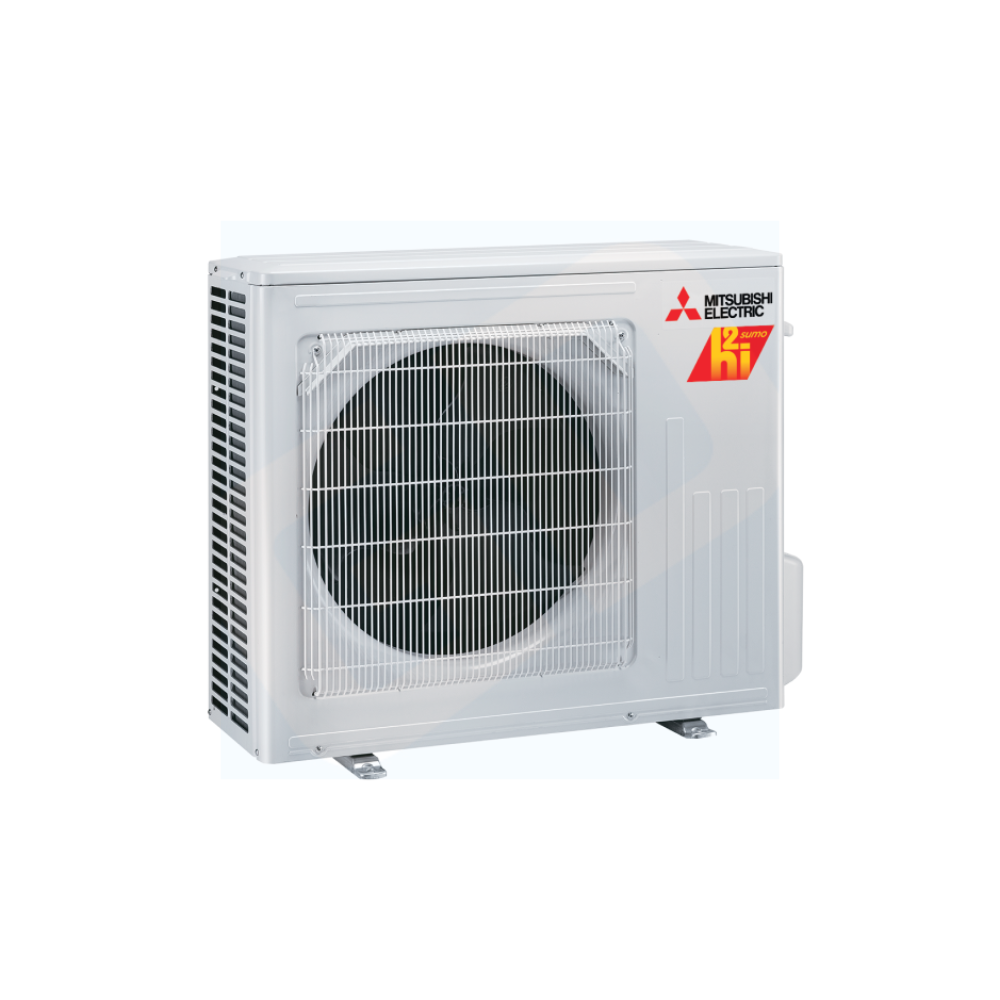

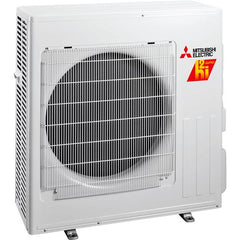

Mitsubishi Electric MUZ-FX18NLHZ-U1 18,000 BTU Hi-Seer Hyper Heat Condenser, R-454B

Product Description

The Mitsubishi Electric MUZ-FX18NLHZ-U1 is an 18,000 BTU Hi-Seer Hyper Heat Condenser, R-454B. This outdoor unit delivers reliable heating down to -13°F and efficient cooling. It pairs with MSZ-FX indoor units for year-round single-zone comfort in larger spaces.

• 18000 BTUs
• Blue Fin Coating protects against corrosion.
• Hot-start technology prevents blasts of cold air at start-up.

Product Highlights

The MUZ-FX18NLHZ-U1 offers steady comfort with powerful heating and cooling. The advanced INVERTER-driven compressor delivers precise, energy-efficient operation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-FX18NLHZ-U1

Technical Specifications

• Energy Star Rated: Yes
• Product Type: Outdoor Unit
• Refrigerant Type: R454B
• Heating Capacity (BTU): 17000
• Application: Heating Cooling
• Cooling Capacity (BTU): 18000
• Number of Zones: 1
• Voltage: 208-230 VAC
• Unit Type: Outdoor Unit
• Product Line: FX Series
• Operating Mode: Heating and Cooling
• Low Ambient Heat: Yes
• System Capacity: 18,000 BTU
• Line Set Size: 1/4" x 1/2"
• Outdoor Unit: MUZ-FX18NLHZ-U1
• Room Cooling/Heating Capacity: up to 750 sq ft
• Nominal Tons: 1.5 Ton
• Liquid Line: 1/4"
• Suction Line: 1/2"
• Refrigerant: R-454B
• Nominal Capacity: 18,000 Btu/h
• Series: M-Series
• Type: Heat pump
• Model: MUZ-FX
• Capacity range: 6,000 to 24,000 BTU/H
• Sound level: As low as 47 dB(A)
• ENERGY STAR: Yes
• SEER2: Up to 35
• HSPF2: Up to 13.3
• Heating Capacity: up to 30,200 BTU
• Cooling Capacity: up to 21,500 BTU
