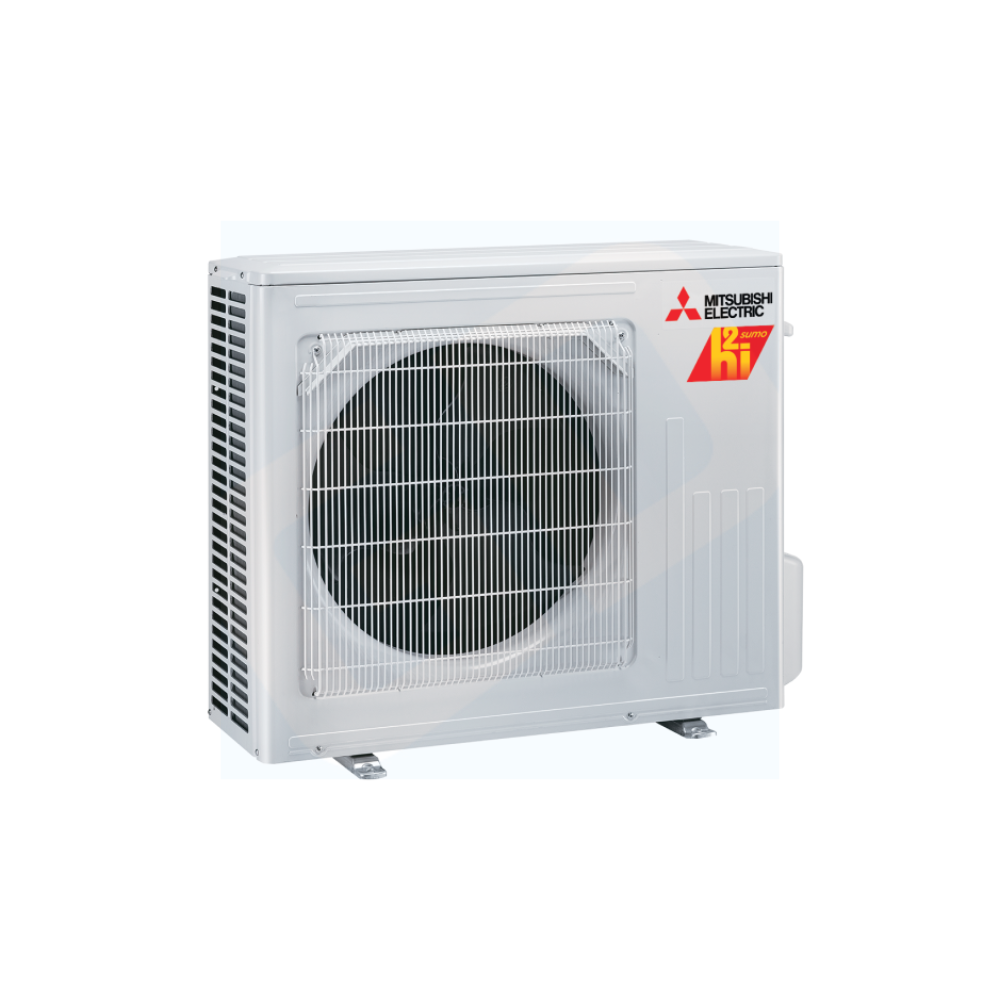

Mitsubishi Electric MUZ-FX18NLHZ R454B: 18,000 BTU HI-SEER HYPER HEAT CONDENSER

Product Description

The Mitsubishi Electric MUZ-FX18NLHZ is an R454B: 18,000 BTU HI-SEER HYPER HEAT CONDENSER. H2i sumo systems provide 100% heating capacity down to -10 Degrees Fahrenheit. Control your comfort with room-by-room control, a more efficient way to cool and heat your home or business. The MSZ-FX Series uses Triple Action Filtration which combines enzyme, deodorizing and hybrid filters.

• H2i sumo™ systems provide 100% heating capacity down to -10 Degrees Fahrenheit outdoor ambient (without wind chill) temperature.
• Room-by-room control for efficient cooling and heating.
• Cleaner air and superior control of cooling and heating.

Product Highlights

This condenser features H2i technology, a blue fin condenser, and an integrated base pan heater. It also has precision temperature control technology.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-FX18NLHZ

Technical Specifications

• Type: Outdoor Condenser
• Product Line: M-Series H2i
• Product Sub-line: Hyper-Heating
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 18
• Outdoor Unit Size: 18000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 1/2"
• Cooling BTU: 18000
• Cooling Capacity: 17200 BTU
• Heating Capacity: 17000 BTU
• Maximum Sound Level: 55 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -22 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 25.5
• EER2: 13.05
• HSPF2: 11.1
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 23 Amps
• Recommended Breaker Size: 40 Amps
• Suction Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Shipping Weight: 138.70 Pounds
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215611128
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Maximum Line Length: 100 Feet
• Gas Connection Size: 1/2 Inch
• Product Height: 34 5/8 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 13 Inches
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Heating Minimum Temp: -34 F
• Cooling Minimum Temp: -4 F
• Airflow Cooling CFM, Dry: 272-339-392-456-593
• Airflow Cooling CFM, Wet: 231-288-333-387-504
• Airflow Heating CFM, Dry: 272-311-378-456-614
• Noise Level dB(A), Cooling: 27-31-35-39-45
• Noise Level dB(A), Heating: 26-29-34-39-46
• Refrigerant: R454B
• Amperage Rating: 23 A
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 3700 to 21500 Btu/hr
• Cooling Operating Temperature: 14 to 115 deg F
• Cooling Sound Level: 52 dBA
• Drive Type: Inverter
• EER Rating: 13.05
• Fuse Rating: 20 A
• HSPF Rating: 11.1
• Heating BTU Rating: 5150 to 30200 Btu/hr
• Heating Operating Temperature: -22 to 75 deg F
• Heating Sound Level: 55 dBA
• Liquid Line Size: 1/4 in
• Power Rating: 2360 W Cooling, 2890 W Heating
• SEER Rating: 25.5
• Series: MUZ-FX-NLHZ Series
• Suction Line Size: 1/2 in
